| Type | Groove type (standard type) |
| Response Time | 20μs or less when light enters, 100μs or less when light is blocked |
| Protection Circuit | Load Short Protection |
| Type of Product | Photo/Micro Sensor |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Groove type (standard type) |
Response Time |
20μs or less when light enters, 100μs or less when light is blocked |
Protection Circuit |
Load Short Protection |
Type of Product |
Photo/Micro Sensor |
Power Supply Voltage |
DC5-24 ± 10%, ripple (pp) 10% or less |
Protection Class |
IP64 IEC60529 standard |
Control Output |
NPN open collector output DC5 to 24 V 100mA or less Residual Voltage 0.8 V or less (load current 100mA), residual Voltage 0.4 V or less (load current 40mA) |
Connection Type |
Cord drawer type |
Cable Length (m) |
2 |
Mass (g) |
Approx. 20 (packed) |
Case Material |
Polybutylene terephthalate (PBT) |
Emitting Element |
GaAs infrared light emitting diode |
Standard Sensing Object (mm) |
Opaque body 2x0.8 or more |
Ambient Illumination to Use (Lx) |
Light receiving surface illuminance fluorescent lamp: 1000 or less |
Detection Method |
Through-beam type |
Current Consumption (mA) |
12 or less |
Ambient Humidity (% RH) |
Operating: 5 to 85, Storage: 5 to 95 (with no condensation) |
Monotaro ID |
8585927 |
Detection Distance (mm) |
5 (groove width) |
Applicable Standard |
UL certified, CE marking, ISO13849-1 (PLc, cat1) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
20~2000Hz (peak acceleration 100m/s ² ) Double amplitude 1.5mm X, Y, Z directions 2h (4min cycle) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
During operation: -25 to 55<br> Storage: -30 to 80 (but do not freeze) |

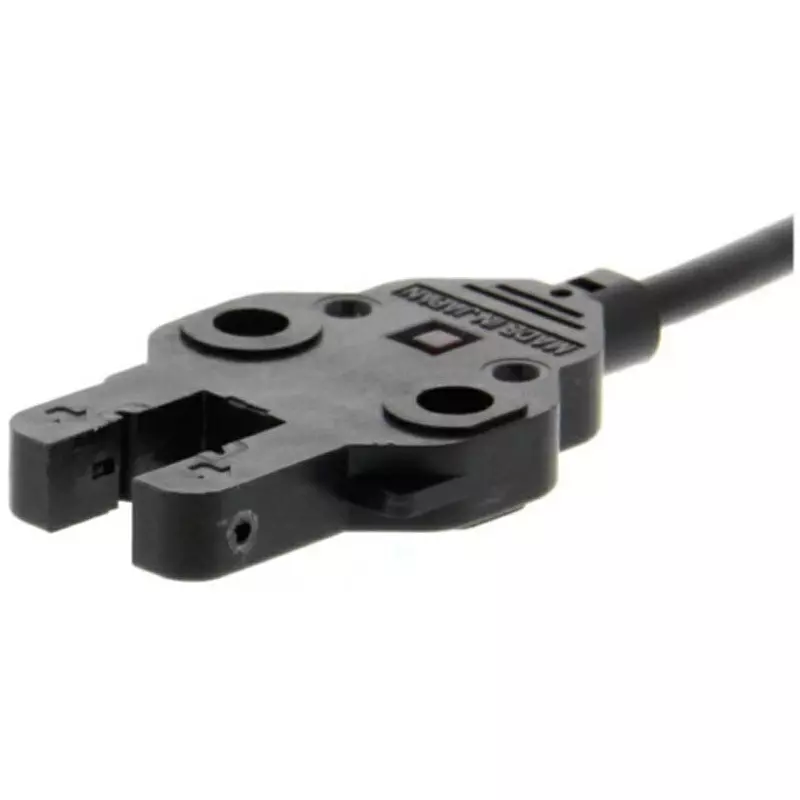

Manufacturer Part Number |
EE-SX870A 2M |
