| Type | Amplifier-Equipped Type |

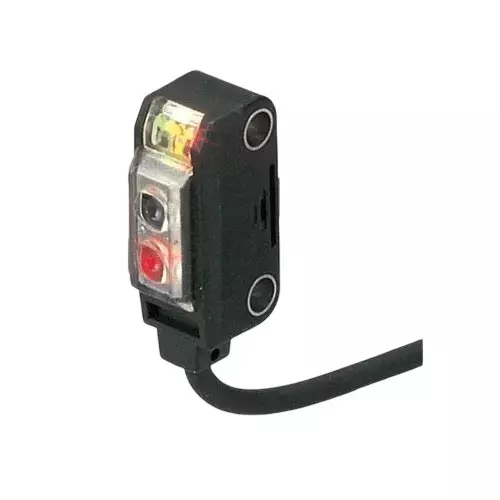

| Type of Product | Ultra-Compact Beam Sensor |
| Hysteresis | Up to 15% of the operating distance (using 200x200mm white matte paper) |
| Detection Area | Opaque, translucent, transparent |
Type |
Amplifier-Equipped Type |
Type of Product |
Ultra-Compact Beam Sensor |
Hysteresis |
Up to 15% of the operating distance (using 200x200mm white matte paper) |
Detection Area |
Opaque, translucent, transparent |
Accessories |
Adjustment driver: 1 |
Part No |
EX-22A |
Lens Material |
polyarilate |
Model No |
EX-22A |
Case Material |
Polyethylene terephthalate |
Vibration Resistance (Endurance) |
10 to 500Hz Revival Width 3 mm (MAX.20G) XYZ for 2 hours in each direction |
Ambient Illumination to Use (Lx) |
Incandescent lamp: Illuminance of the receiving surface 3000 or less |
Detection Method |
reflective type |
Current Consumption (mA) |
Under 13 |
Ambient Humidity (% RH) |
35-85 |
Monotaro ID |
6884446 |
Withstand voltage (V) |
AC 1000 1 minute Charging unit bundle / case compartment |
Head Shape |
horn |
Detection Distance (mm) |
5 to 160 (200×200 mm white matte paper) |
Detection Light |
diffused light |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Light Colour |
Red |
Cable Extension (m) |
Supports total length up to 50 mm with cables of 0.3mm² or larger |
Repeatability (mm) |
0.3 or less (perpendicular to the detection axis) |
Name of Manufacturer/Packer/Importer |
Panasonic Devices SUNX Co., Ltd. |
Storage Temperature Range |
-30 to 70 |
Operation Ambient Temperature (°C) |
-25 to 55 (no condensation or freezing) |
Power Supply Voltage (V) |
12 to 24 DC±10% Ripple P-P 10% or less |
Storage Humidity Range |
35 to 85%RH |
Insulation Resistance (MOhm) |
DC250V Mega with 20 or more, charging units at once and between cases |
Withstand voltage (V / min) |
AC 1000 Charging Unit Bulk & Between Cases |
Operating Humidity Range |
35 to 85%RH |
Peak Wavelength |
680 |
Short-Circuit Protection |
Equipment |
Vibration Resistance (Malfunction) (Hz) |
10 to 500 Recovery amplitude 3 mm (MAX.20G) XYZ in each direction, 2 hours |
Impact Resistance (Durability) (m/s²) |
500 (about 50G) XYZ 3 times in each direction |
Ib Order code |
06884446 |
Output Specifications |
Maximum inflow current: 50mA, applied voltage: 30V DC or less (output to 0V), residual voltage: 2V or less (at inflow current 50mA), 1V or less (at inflow current 16mA) |
Response Time (mS) |
Below 0.5 |
Contents |
1 piece |
Indicator Light |
Orange LED (lights up when output is ON), Green LED (lights up when steady light enters or when stable is not in) |
Protective Structure |
IP67 (IEC), Anti-Immersion (JIS) |
Body Mass (g) |
About 20 |
RoHS Directive (10 Substances Compliant) |
Response |
Storage Humidity Range (% RH) |
35 to 85 |
Output Method |
NPN Transistor Open Collector |
Mounting position |
Side ON |
Purpose |
Detection of chip components, confirmation of wafer overextendance, and workpiece detection through gaps |
Sensitivity dBm |
Continuous variable volium equipment |
Projection Screen |
Red LED (Modulation Type) |
Carburetor Type |
0.1x2 (3-core) (translucent floodlights have 2-core) with cab-tire cable |
Output Location |
ON when the light enters |
Main Uses |
Detection of chip components, confirmation of wafer overextendance, and workpiece detection through gaps |
Procurement Type |
Direct Import from Japan |
