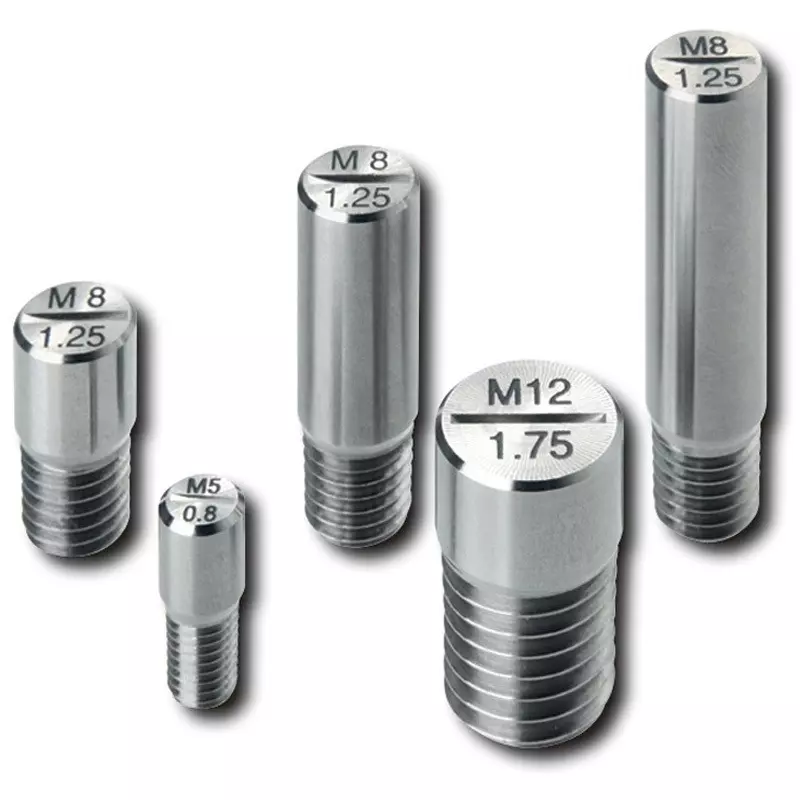

| Type of Product | Thread Pin Gauge |
| Model No | RA1015-3 |
| Country of Origin | Japan |
| Accuracy | Measurement unit: ±0.005 mm or less |
Type of Product |
Thread Pin Gauge |
Model No |
RA1015-3 |
Country of Origin |
Japan |
Accuracy |
Measurement unit: ±0.005 mm or less |
Monotaro ID |
79941805 |
RoHS Directive |
Correspondence |
Name of Manufacturer/Packer/Importer |
Niigata Seiki Co., Ltd. |
Import Country |
Direct Import from Japan |
Length (mm) |
Measuring part: 30 |
Mass of Main Unit (g) |
29 |
Main Unit Material |
Stainless steel |
Dimension (mm) |
Runout between the measuring part and the screw part: 0.02 or less |
Diameter (Φmm) |
Measuring part: 11 |
Overall Length (mm) |
42.5 |
Screws |
1/15 taper |
Body dimensions |
11x42.5x11 mm |
Thread Length (mm) |
Straight: 6, Tapered: 5.5 |
Nominal Size |
M10xP1.5 |
