| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | M5Stack |

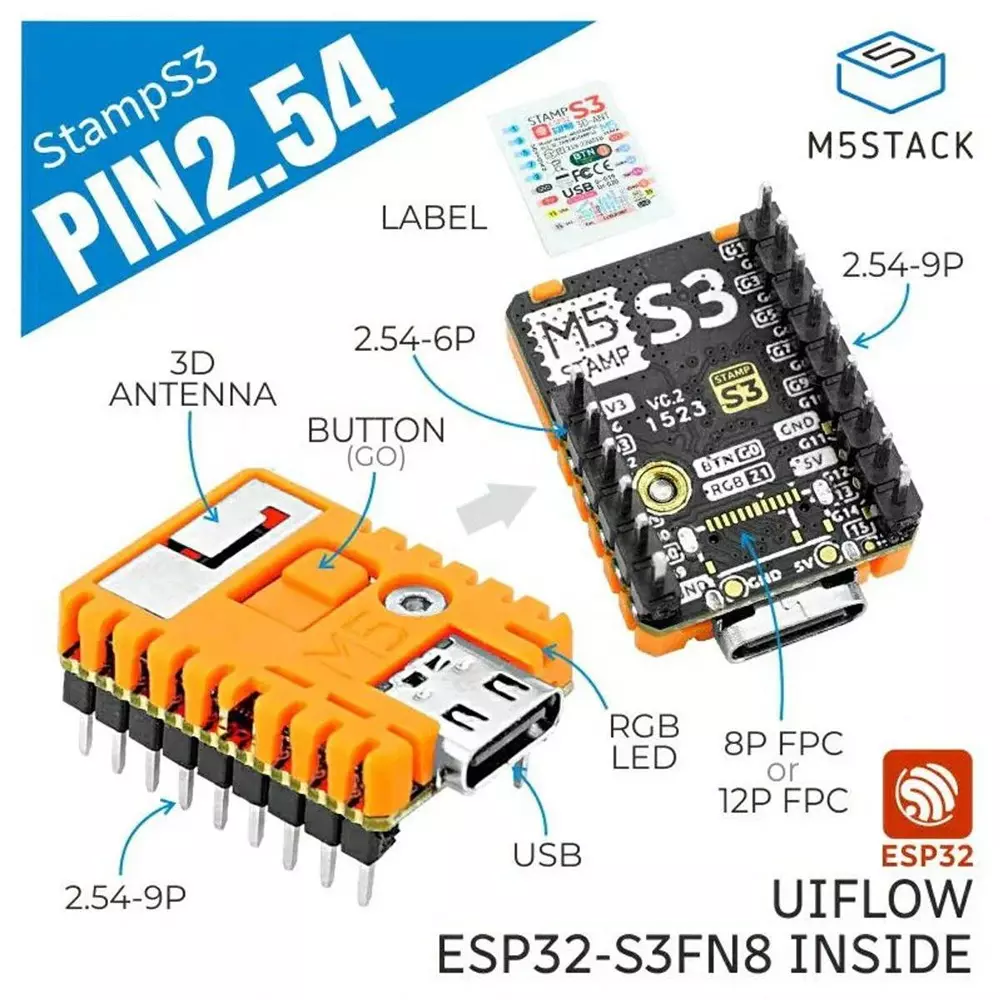

| Type of Product | M5StampS3 (2.54mm pitch pin header mounted) |
| Model No | M5STACK-S007-PIN254 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Type of Product |
M5StampS3 (2.54mm pitch pin header mounted) |
Model No |
M5STACK-S007-PIN254 |
Monotaro ID |
68556437 |
Import Country |
Direct Import from Japan |
Cell Spacing (mm) |
[Pin header] 2.54 [LCD interface] 0.5 @12/8 pin |
Mass (g) |
3.5 |
Antenna |
2.4G 3D Antenna |
Set Contents |
M5StampS3 PIN2.54x1, Silkscreen stickerx1 |
Dimension (mm) |
26x18x4.6 |
Input Power |
5 V |
Operating Temperature Range |
0 to +40℃ |
Capacity |
[Flash] 8 MB |
Interface |
Touch sensor, SD/SDIO/MMC master controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, GPIO, pulse counter |
Specifications |

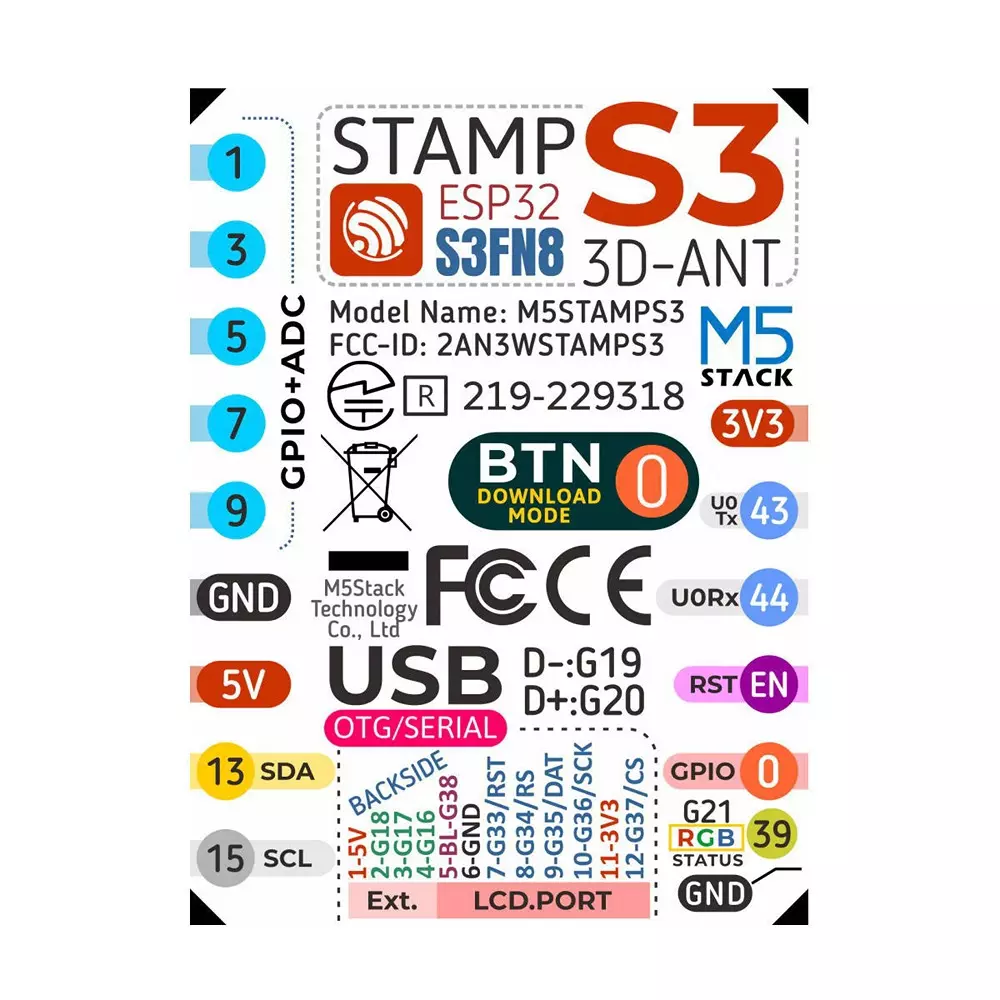

[MCU] ESP32-S3FN8 [DC/DC] MUN3CAD01-SC [Interactive] Buttonx1, RGB LED (WS2812B-2020)x1 [I/O] G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46 |
