| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | M5Stack |

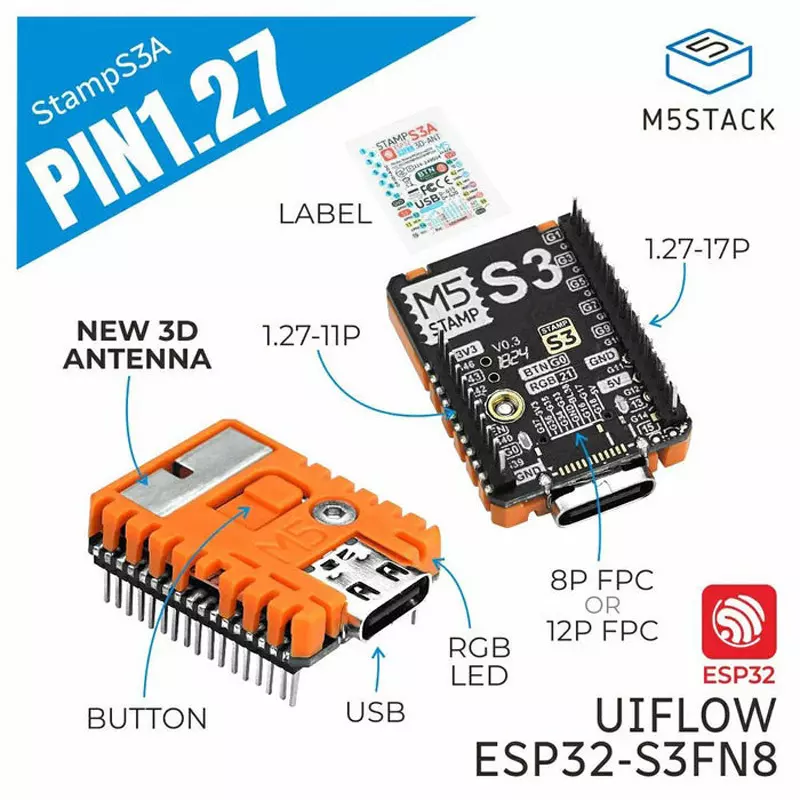

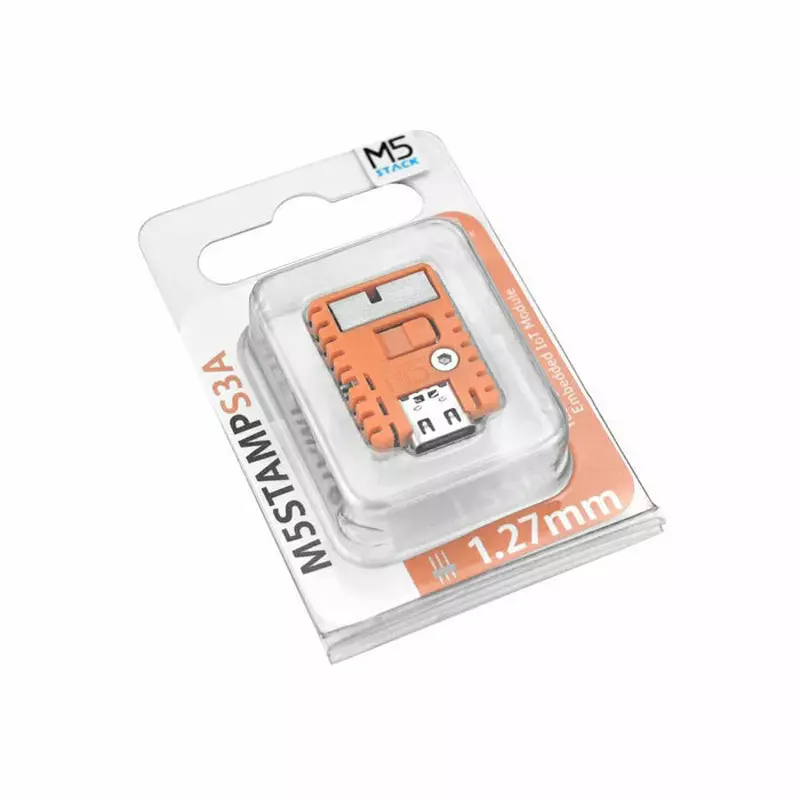

| Type of Product | M5StampS3A (1.27mm pitch pin header mounted) |
| Model No | M5STACK-S007-PIN127-V033 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Type of Product |
M5StampS3A (1.27mm pitch pin header mounted) |
Model No |
M5STACK-S007-PIN127-V033 |
Type |
[Wireless Antenna] 2.4GHz 3D Antenna |
Monotaro ID |
68556157 |
Import Country |
Direct Import from Japan |
Cell Spacing (mm) |
[I/O] 1.27 [LCD FPC] 0.5 (12-pin or 8-pin) |
Mass (g) |
7.6 |
Set Contents |
Stamp-S3A PIN1.27x1, Pin stickerx1 |
Dimension (mm) |
26x18.0x4.7 |
Interface |
Programmable physical buttonx1, programmable RGB LED (WS2812B-2020)x1, touch sensor, SD/SDIO/MMC host controller, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, SPI, I2S, GPIO pulse counter |
Specifications |
[SoC] ESP32-S3FN8 (dual-core 240MHz Xtensa LX7, 2.4GHz Wi-Fi) [GPIO pins (23)] G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46 |
Flash |
8MB |
Converter Type |
[DC/DC Converter] MUN3CAD01-SC |
Power Supply Voltage (V) |
5 |
Operating Temperature (c) |
0 to +40℃ |
