| Type of Product | Valveless Medium Pressure Plug Coupler, Brass (for Male Screw Mounting) |
| Material | Brass |
| Country of Origin | Japan |
| Model No | TS-4PF-BSBM |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Valveless Medium Pressure Plug Coupler, Brass (for Male Screw Mounting) |
Material |
Brass |
Country of Origin |
Japan |
Model No |
TS-4PF-BSBM |
Monotaro ID |
32976273 |
Connection Type |
For male screw connection |
Compatibility |
Sockets and plugs can be connected if they are the same size. Connection is not possible if the sizes are different. |
Suitable Fluid |
Gasoline, heavy oil, kerosene, water, steam, etc. |
Operating Temperature Range |
-20 - 180°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
5 |

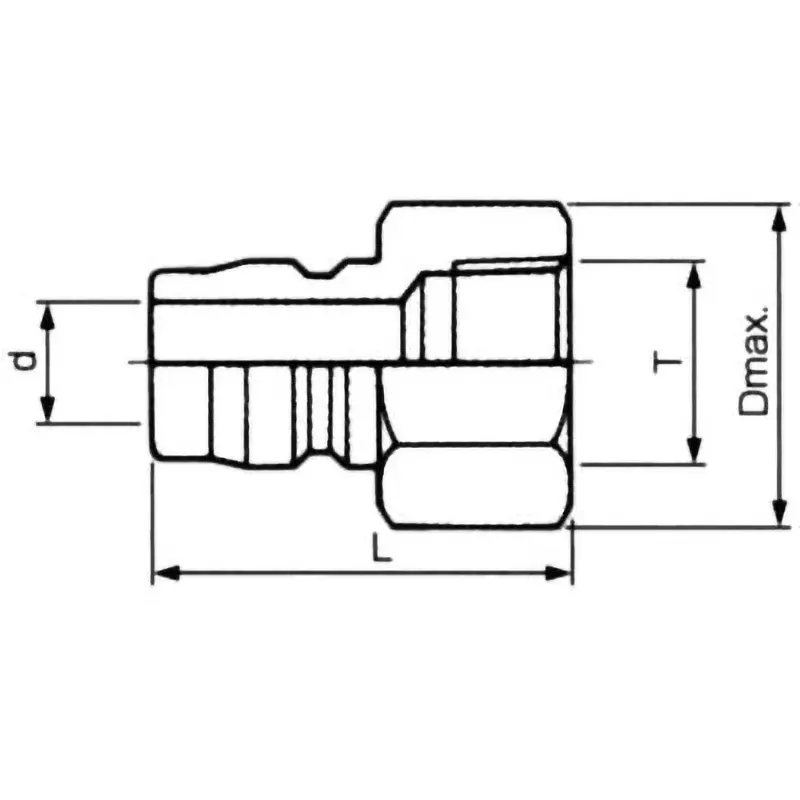

Dimension L (mm) |
44 |
Socket or Plug |
Plug |
Dimension D (Φmm) |
13 |
Mating Connection Size |
R1/2 |
Mass (g) |
85 |
Withstand Pressure (MPa) |
7.5 |
Dimension Dmax (mm) |
26 |
