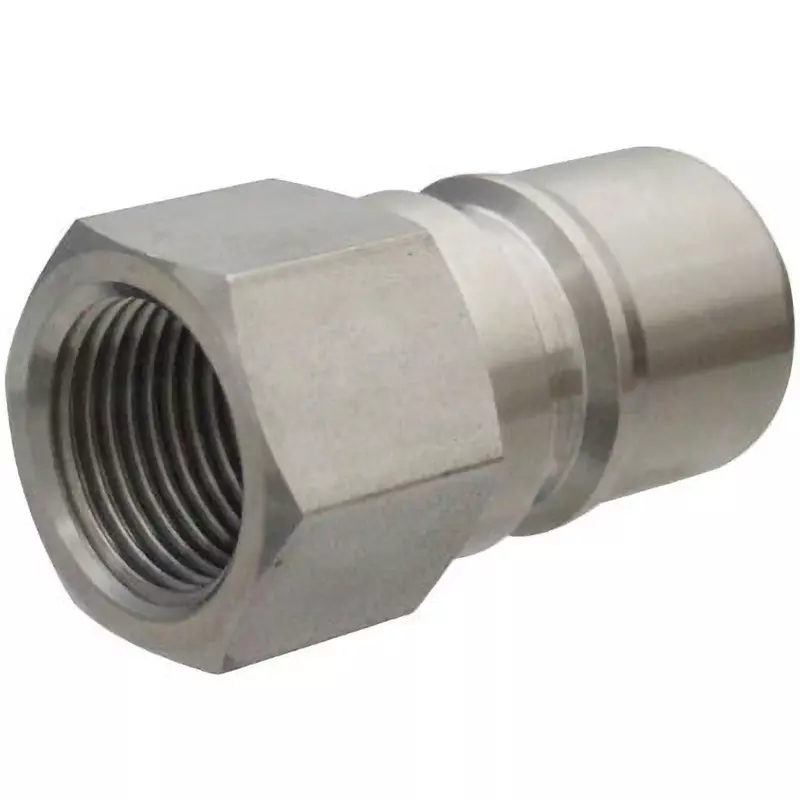

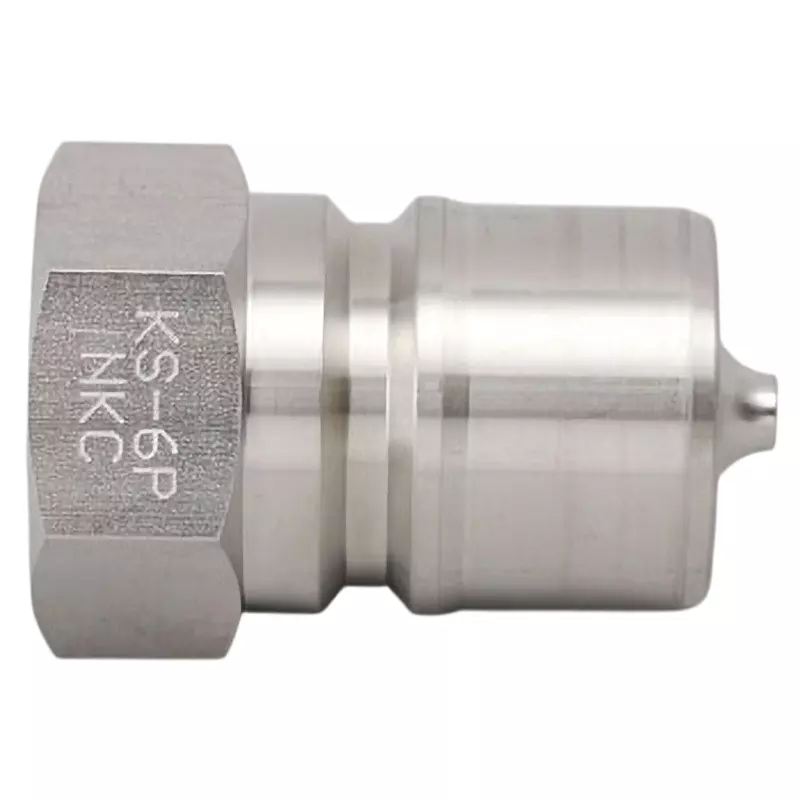

| Type of Product | Sus Valve Type Medium Pressure Plug Coupler |
| Material | SUS304 |
| Country of Origin | JAPAN |
| Model No | KS-6P-SUS |
Type of Product |
Sus Valve Type Medium Pressure Plug Coupler |
Material |
SUS304 |
Country of Origin |
JAPAN |
Model No |
KS-6P-SUS |
Monotaro ID |
32976605 |
Type |
For male screw connection |
Suitable Fluid |
Alkali, salt water, etc. |
Operating Temperature Range |
-20 - 180°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
4.5 |
Socket or Plug |
Plug |
Mating Connection Size |
R3/4 |
Mass (g) |
210 |
Material (O-ring) |
Fluororubber |
Thread Diameter T |
Rc3/4 |
Withstand Pressure (MPa) |
6.5 |

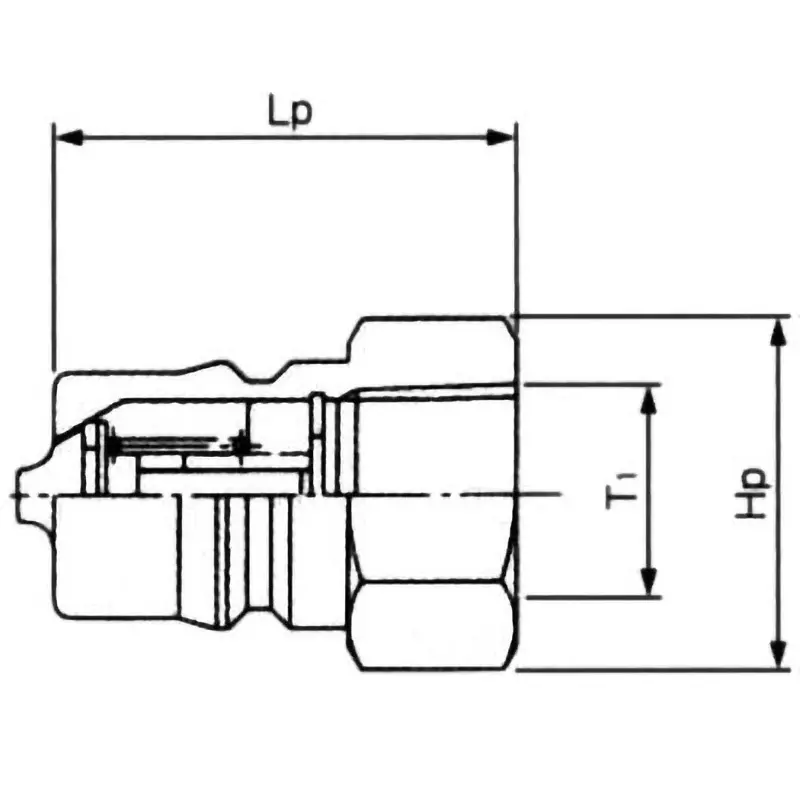

Dimension Hp (mm) |
35 |
Dimension Lp (mm) |
52 |
