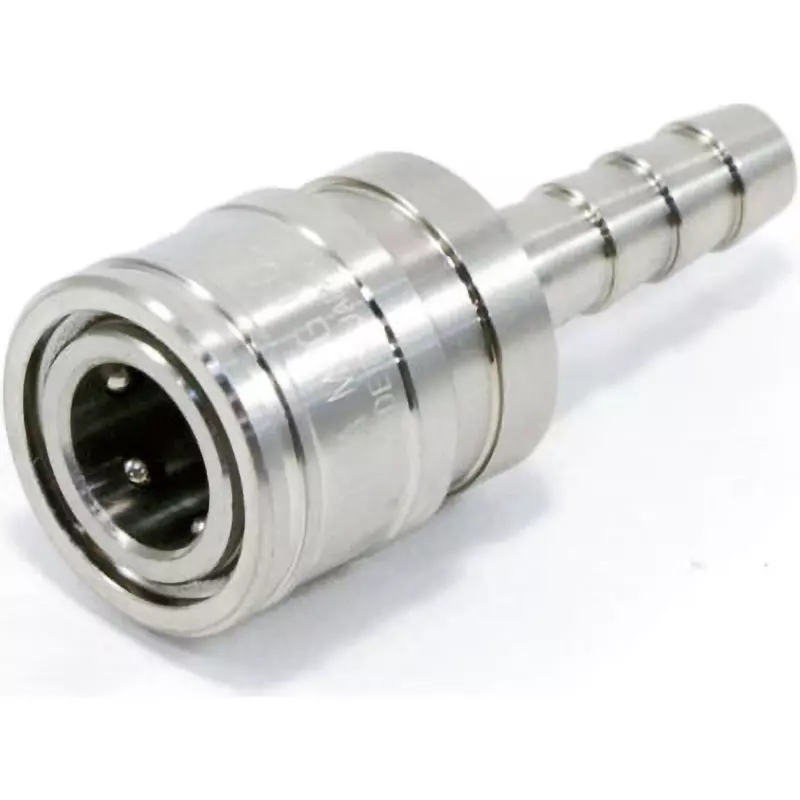

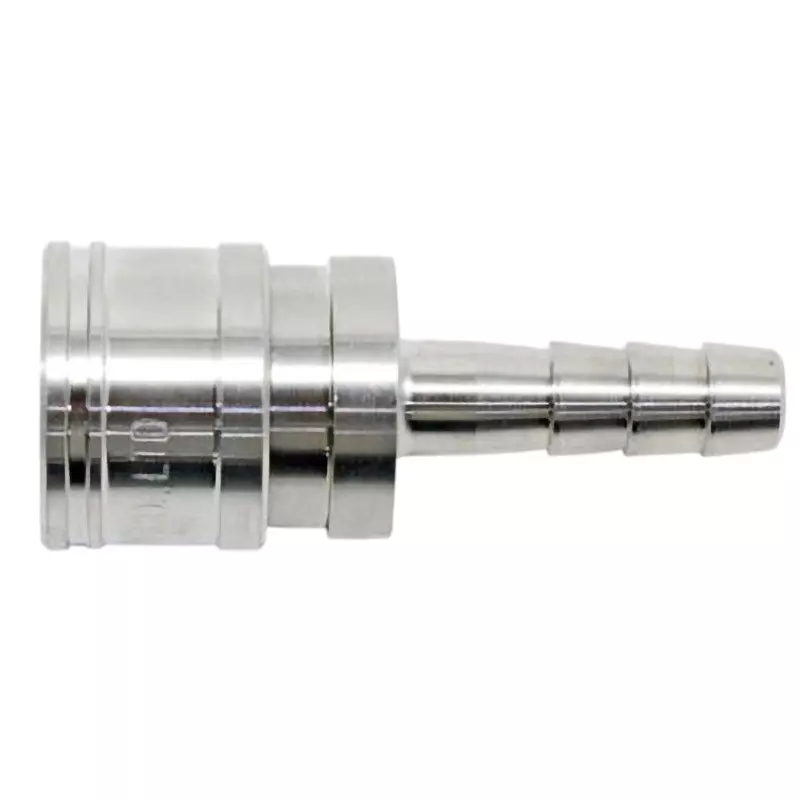

| Type of Product | Valveless Socket Coupler for Medium Pressure, Stainless Steel (for Hose Mounting) |
| Material | Stainless steel SUS304 |
| Country of Origin | JAPAN |
| Model No | TS-2SH-SUS |
Type of Product |
Valveless Socket Coupler for Medium Pressure, Stainless Steel (for Hose Mounting) |
Material |
Stainless steel SUS304 |
Country of Origin |
JAPAN |
Model No |
TS-2SH-SUS |
Monotaro ID |
47307267 |
Type |
TS-2 |
Connection Type |
For hose installation |
Suitable Fluid |
Water, steam, salt water, hydraulic oil, etc. |
Operating Temperature Range |
-20 - +180°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
7.5 |

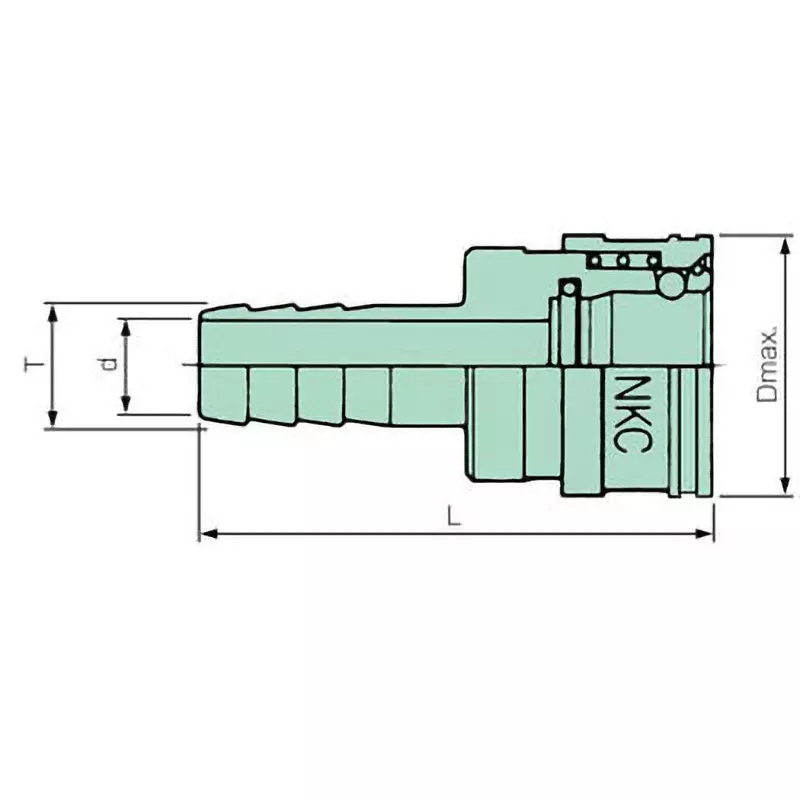

Dimension L (mm) |
57 |
Socket or Plug |
Socket |
Dimension D (Φmm) |
5 |
Dimension T |
1/4 inch (hose) |
Mating Hose Size |
For 1/4 hose |
Nominal Diameter |
1/4 inch |
Mass (g) |
63 |
Material (O-ring) |
Fluororubber |
Dimension Dmax (Φmm) |
24 |
Connection Shape |
Socket / hose nipple (H) |
