| Type of Product | Super Coupler Plug (for Internal Threaded) |
| Material | Steel (SUM24L) |
| Country of Origin | JAPAN |
| Model No | AC-01PM |
Type of Product |
Super Coupler Plug (for Internal Threaded) |
Material |
Steel (SUM24L) |
Country of Origin |
JAPAN |
Model No |
AC-01PM |
Monotaro ID |
47308956 |
Connection Type |
For female screw mounting |
Suitable Fluid |
Air |
Operating Temperature Range |
-20 - 80°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Thread Size |
R1/8 |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1 |

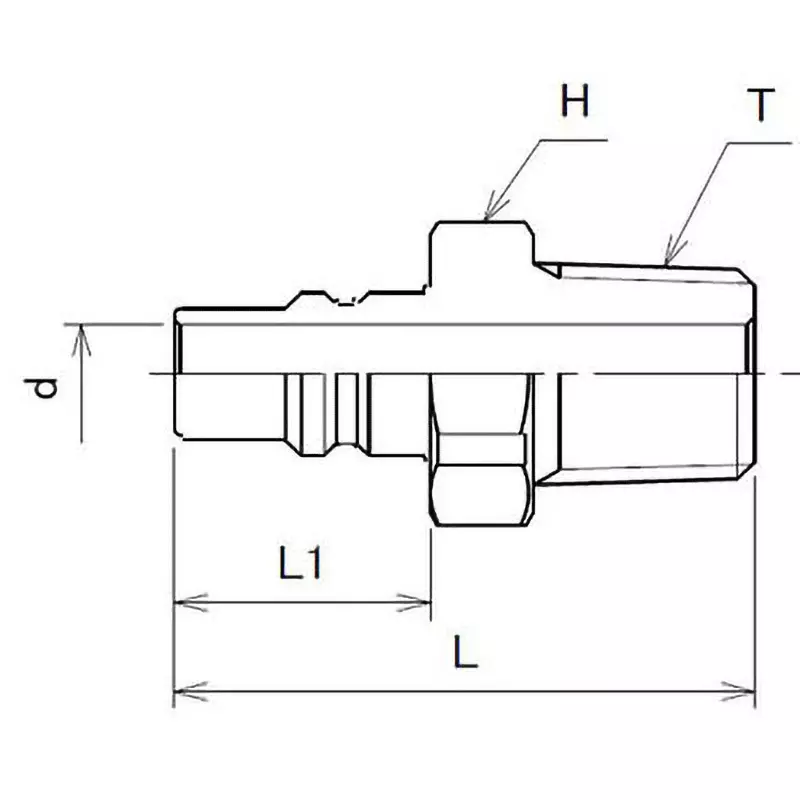

Dimension L (mm) |
31 |
Socket or Plug |
Plug |
Dimension T |
R1/8 |
Dimensions H (mm) |
12(HEX) |
Mass (g) |
12 |
Withstand Pressure (MPa) |
1.5 |
Mounting Screw Size |
Rc1/8 |
Dimension L1 |
15 mm |
