| Type of Product | Super Coupler Socket (for Female Thread Mounting) |
| Material | Steel (SUM24L) |
| Country of Origin | Japan |
| Model No | AC-02SM |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Super Coupler Socket (for Female Thread Mounting) |
Material |
Steel (SUM24L) |
Country of Origin |
Japan |
Model No |
AC-02SM |
Monotaro ID |
47309053 |
Connection Type |
For female screw mounting |
Suitable Fluid |
Air |
Operating Temperature Range |
-20 - 80°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Thread Size |
R1/4 |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1 |

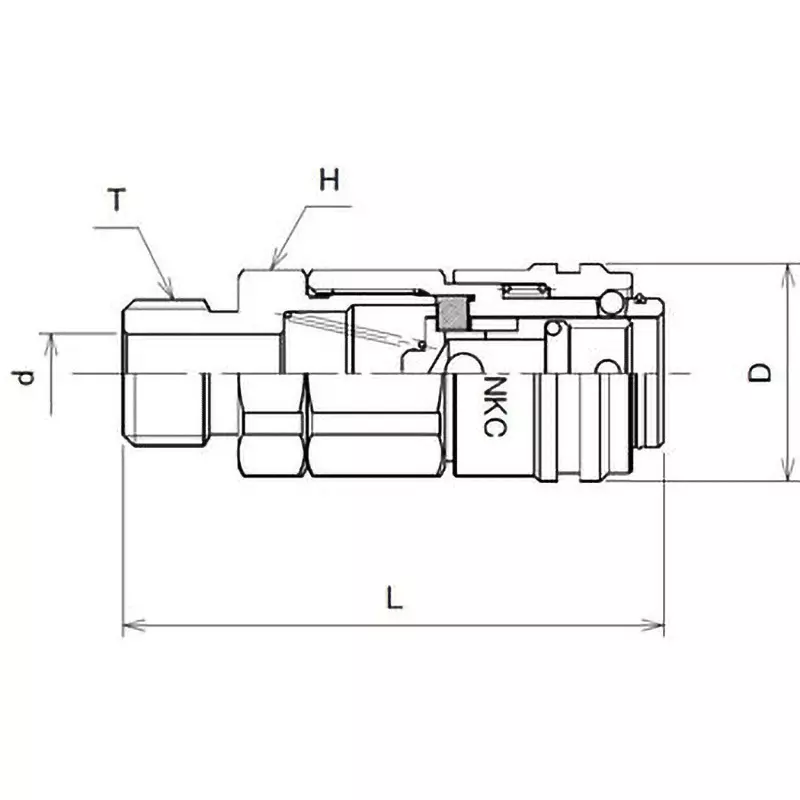

Dimension L (mm) |
50 |
Socket or Plug |
Socket |
Dimension D (Φmm) |
19.5 |
Dimension T |
R1/4 |
Dimensions H (mm) |
17(HEX) |
Mass (g) |
57 |
Material (O-ring) |
Nitrile rubber (NBR) |
Withstand Pressure (MPa) |
1.5 |
Mounting Screw Size |
Rc1/4 |
