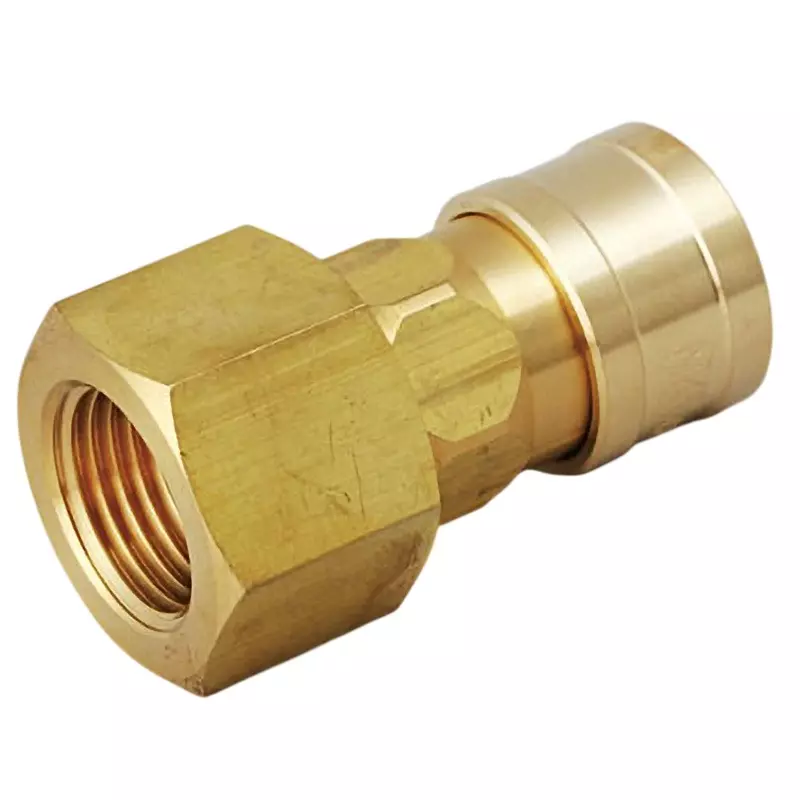

| Type of Product | Brass Socket Coupler (for Male Screw Mounting) |
| Material | Brass |
| Country of Origin | JAPAN |
| Model No | NL-24SF-BSBM |
Type of Product |
Brass Socket Coupler (for Male Screw Mounting) |
Material |
Brass |
Country of Origin |
JAPAN |
Model No |
NL-24SF-BSBM |
Monotaro ID |
32976011 |
Connection Type |
For male screw connection |
Suitable Fluid |
Air, water |
Operating Temperature Range |
-20 - 80°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1 |
Dimension L (mm) |
55.5 |
Socket or Plug |
Socket |
Dimension D (Φmm) |
26 |
Mass (g) |
131 |
Material (O-ring) |
NBR |
Thread Diameter T |
RC1/2 |
Withstand Pressure (MPa) |
1.5 |
