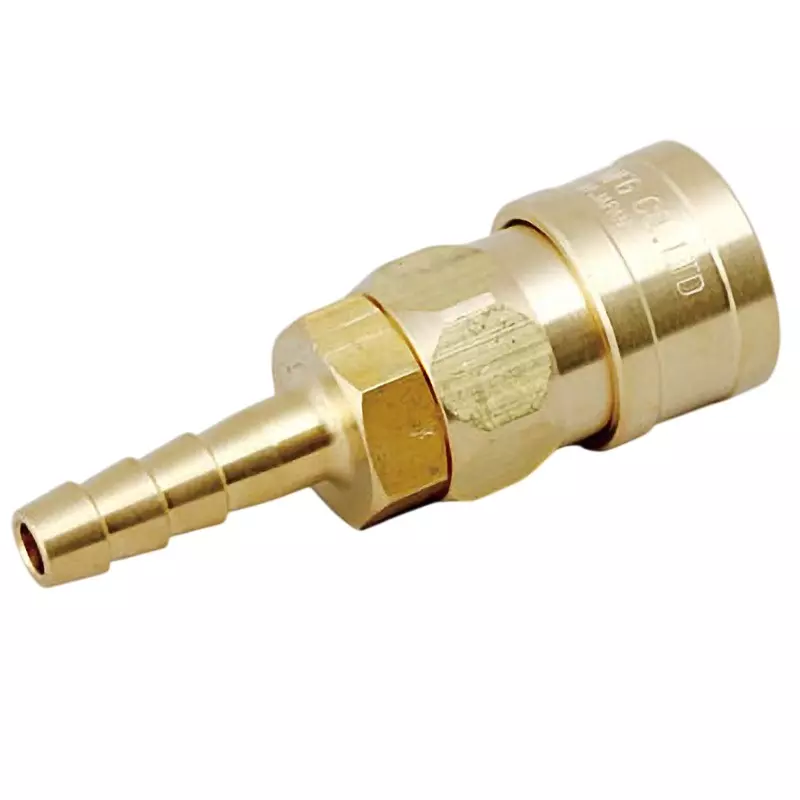

| Type of Product | Brass Socket Coupler (for Hose Connection) |
| Material | Brass |
| Country of Origin | Japan |
| Model No | NL-22SH-BSBM |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Brass Socket Coupler (for Hose Connection) |
Material |
Brass |
Country of Origin |
Japan |
Model No |
NL-22SH-BSBM |
Monotaro ID |
32976027 |
Connection Type |
hose nipple |
Suitable Fluid |
Air, water |
Operating Temperature Range |
-20 - +80°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1 |

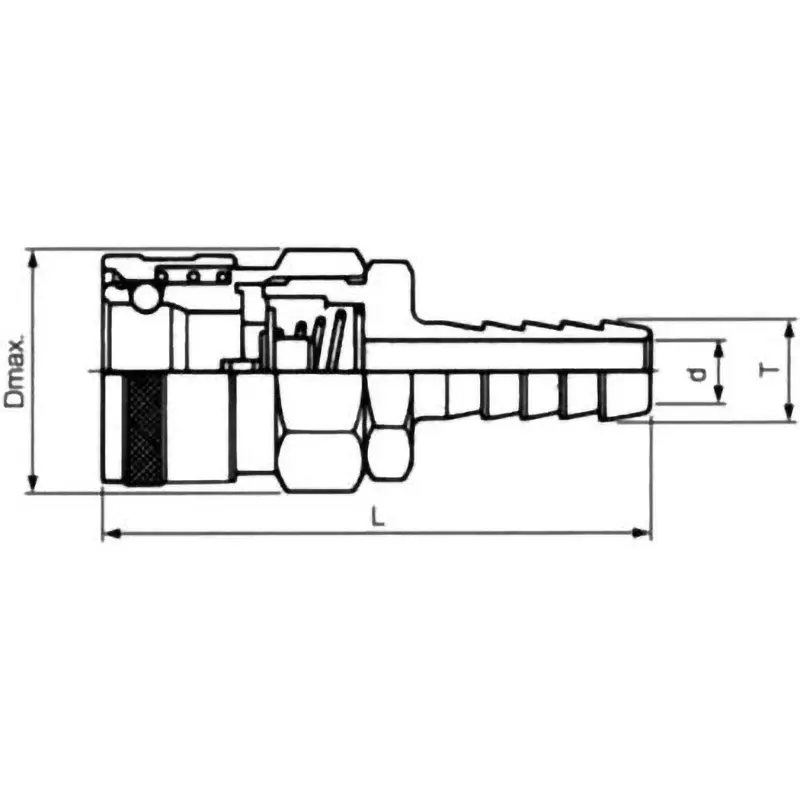

Dimension L (mm) |
72.5 |
Socket or Plug |
Socket |
With or Without Valve |
With valve |
Dimension D (Φmm) |
26 |
Dimension T |
9 mm |
Mating Hose Size |
46026 |
Mating Connection Size |
46026 |
Mass (g) |
104 |
Withstand Pressure (MPa) |
1.5 |
