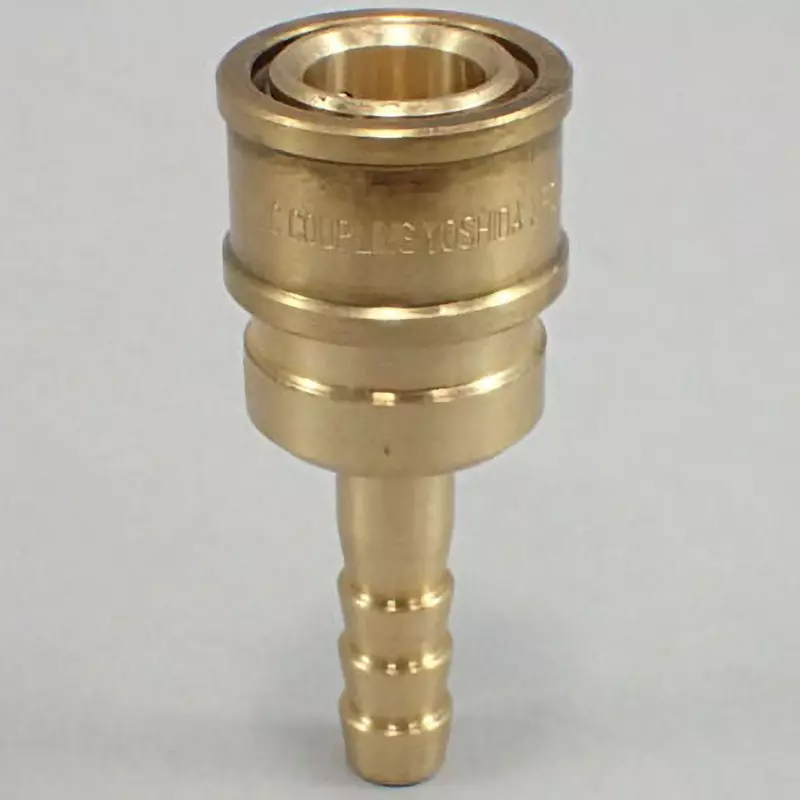

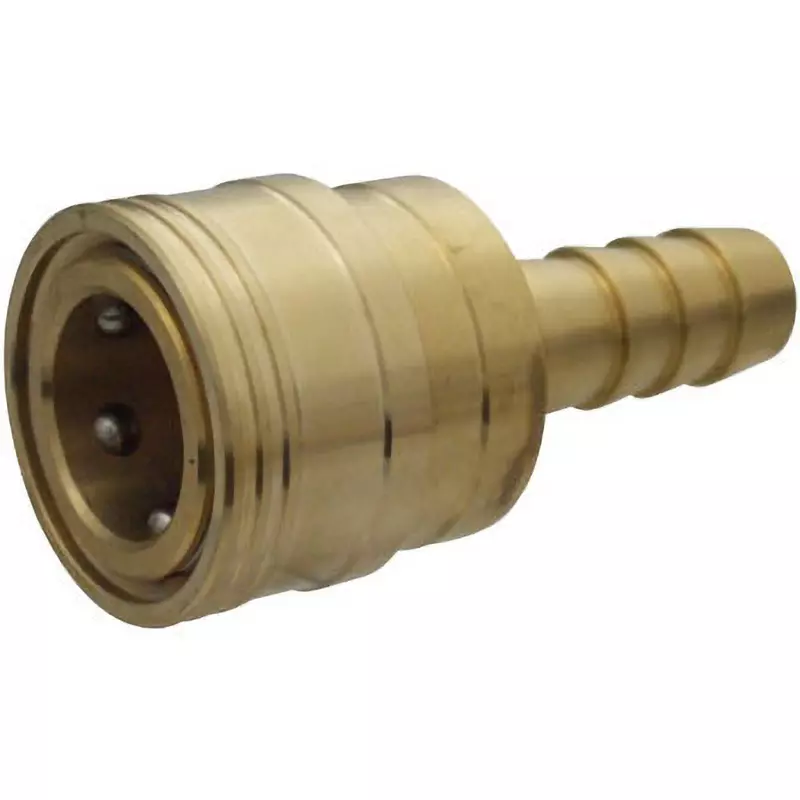

| Type of Product | Valveless Socket Coupler for Medium Pressure, Brass (for Hose Connection) |
| Material | Brass |
| Country of Origin | JAPAN |
| Model No | TS-1SH-BSBM |
Type of Product |
Valveless Socket Coupler for Medium Pressure, Brass (for Hose Connection) |
Material |
Brass |
Country of Origin |
JAPAN |
Model No |
TS-1SH-BSBM |
Monotaro ID |
32976343 |
Connection Type |
For hose connection |
Compatibility |
Sockets and plugs can be connected if they are the same size. Connection is not possible if the sizes are different. |
Suitable Fluid |
Gasoline, heavy oil, kerosene, water, steam, etc. |
Operating Temperature Range |
-20 - 180°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
5 |

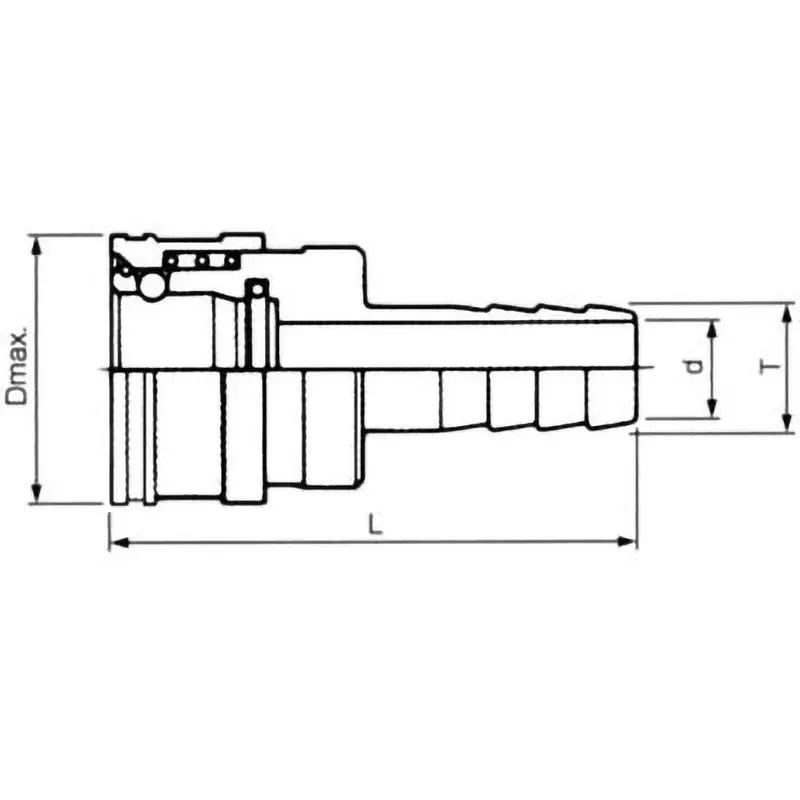

Dimension L (mm) |
42 |
Socket or Plug |
Socket |
Dimension D (Φmm) |
3 |
Dimension T |
6.5 mm |
Mass (g) |
28 |
Material (O-ring) |
Fluororubber |
Withstand Pressure (MPa) |
7.5 |
Dimension Dmax (Φmm) |
18 |
