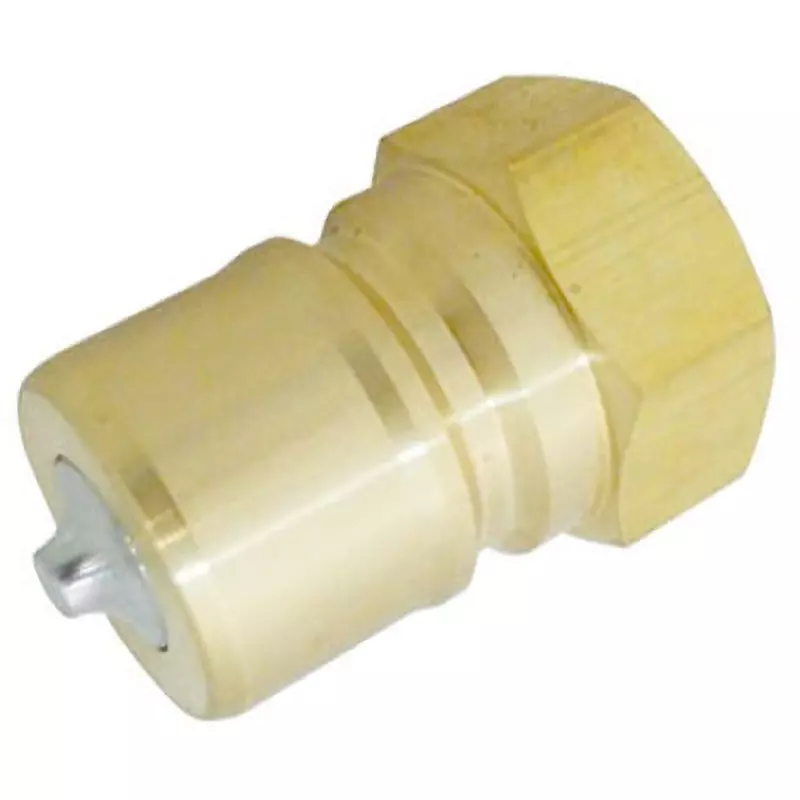

| Type of Product | Brass Valve Type Medium Pressure Plug Coupler |
| Material | Brass |
| Country of Origin | JAPAN |
| Model No | KS-6P-BSBM |
Type of Product |
Brass Valve Type Medium Pressure Plug Coupler |
Material |
Brass |
Country of Origin |
JAPAN |
Model No |
KS-6P-BSBM |
Monotaro ID |
32976483 |
Connection Type |
Female thread |
Compatibility |
Sockets and plugs can be connected if they are the same size. Connection is not possible if the sizes are different. |
Suitable Fluid |
Gasoline, heavy oil, kerosene, water, steam, etc. |
Operating Temperature Range |
-20 - +180°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
3 |
Socket or Plug |
Plug |
With or Without Valve |
With valve |
Mass (g) |
230 |
Material (O-ring) |
Fluororubber |
Thread Diameter T |
Rc3/4 |
Withstand Pressure (MPa) |
4.5 |

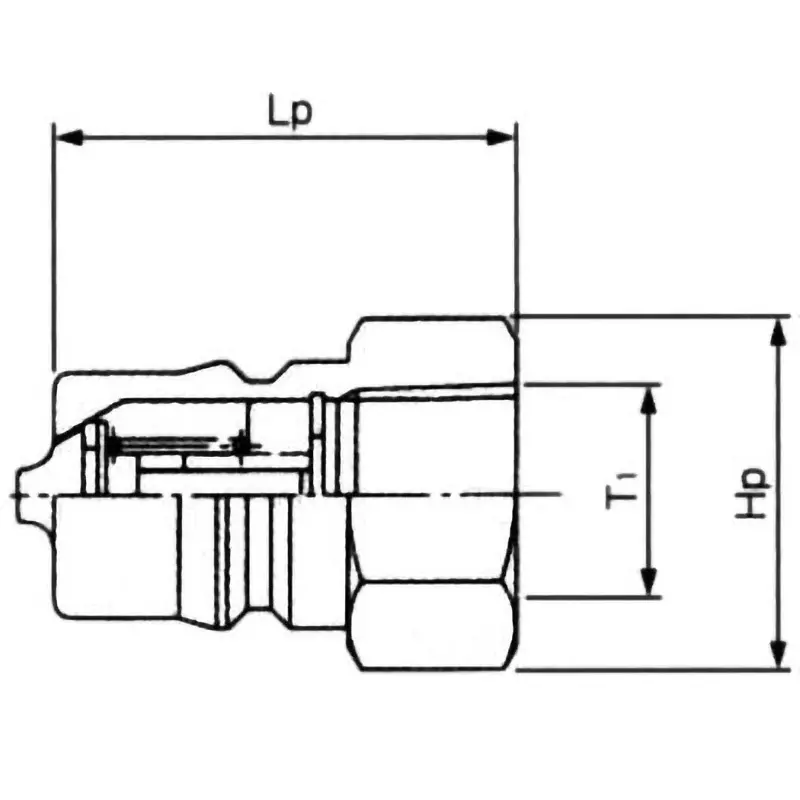

Dimension Hp (mm) |
35 |
Dimension Lp (mm) |
52 |
