| Type of Product | Brass Valve Type Medium Pressure Socket Coupler |
| Material | Brass |
| Country of Origin | JAPAN |
| Model No | KS-4S-BSBM |
Type of Product |
Brass Valve Type Medium Pressure Socket Coupler |
Material |
Brass |
Country of Origin |
JAPAN |
Model No |
KS-4S-BSBM |
Monotaro ID |
32976535 |
Connection Type |
Female thread |
Compatibility |
Sockets and plugs can be connected if they are the same size. Connection is not possible if the sizes are different. |
Suitable Fluid |
Gasoline, heavy oil, kerosene, water, steam, etc. |
Operating Temperature Range |
-20 - +180°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
3 |
Socket or Plug |
Socket |
With or Without Valve |
With valve |

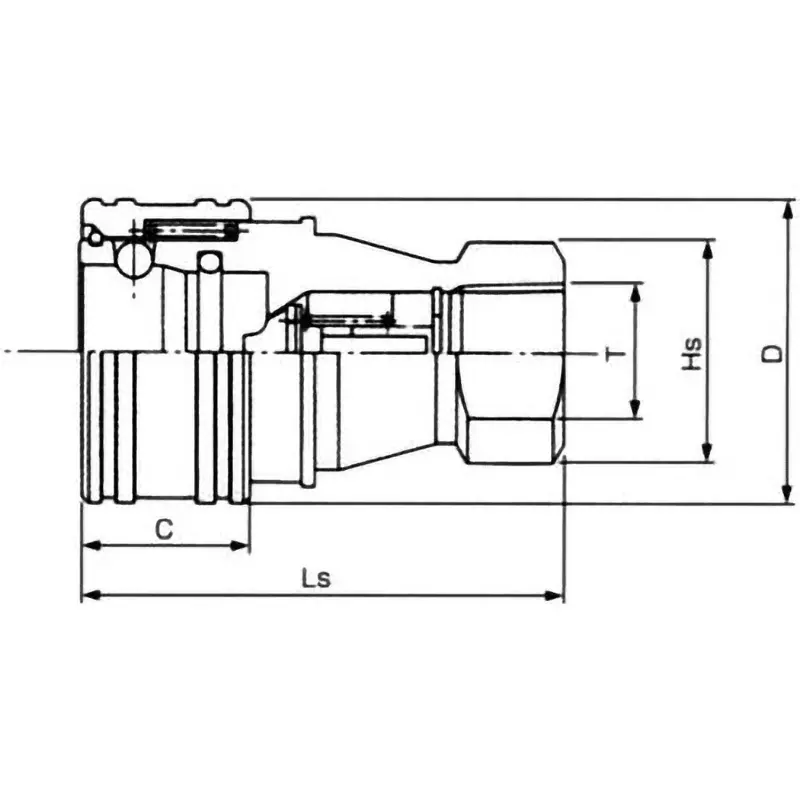

Dimension D (Φmm) |
45 |
Dimension Ls (mm) |
72 |
Mating Connection Size |
R1/2 |
Dimensions C (mm) |
25 |
Mass (g) |
470 |
Material (O-ring) |
Fluororubber |
Thread Diameter T |
Rc1/2 |
Withstand Pressure (MPa) |
4.5 |
