| Type of Product | Valveless Medium Pressure Plug Coupler, Stainless Steel (for Internal Threaded) |
| Material | Stainless steel SUS304 |
| Country of Origin | JAPAN |
| Model No | TS-1PM-SUS |
Type of Product |
Valveless Medium Pressure Plug Coupler, Stainless Steel (for Internal Threaded) |
Material |
Stainless steel SUS304 |
Country of Origin |
JAPAN |
Model No |
TS-1PM-SUS |
Monotaro ID |
47307014 |
Type |
TS-1 |
Connection Type |
For female screw mounting |
Operating Temperature Range |
-20 - +180°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Thread Size |
R1/8 |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
7.5 |

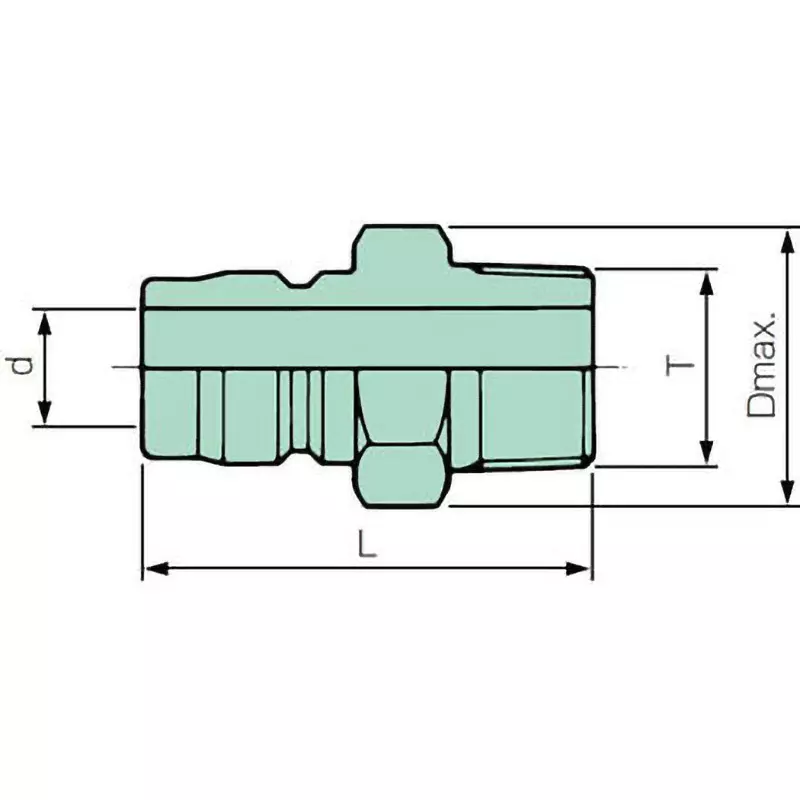

Dimension L (mm) |
32 |
Socket or Plug |
Plug |
Dimension D (Φmm) |
5 |
Dimension T |
R1/8 inch |
Nominal Diameter |
1/8 inch |
Mass (g) |
24 |
Withstand Pressure (MPa) |
10 |
Dimension Dmax (Φmm) |
11(HEX) |
Connection Shape |
Socket / Female thread (F) |
