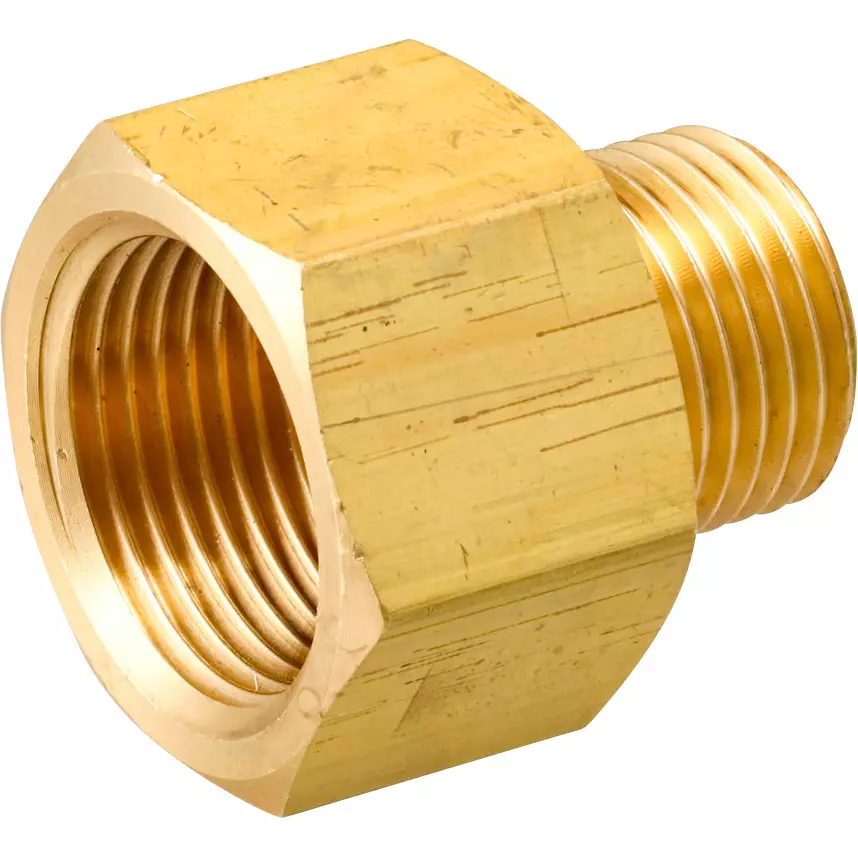

| Type of Product | Inner and Outer Sockets Different Diameters Made of Brass |
| Material | Brass |
| Country of Origin | TAIWAN |
| Shape | Socket |
Type of Product |
Inner and Outer Sockets Different Diameters Made of Brass |
Material |
Brass |
Country of Origin |
TAIWAN |
Shape |
Socket |
Monotaro ID |
46630037 |
Suitable Fluid |
Water, air, oil |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
6.9 |

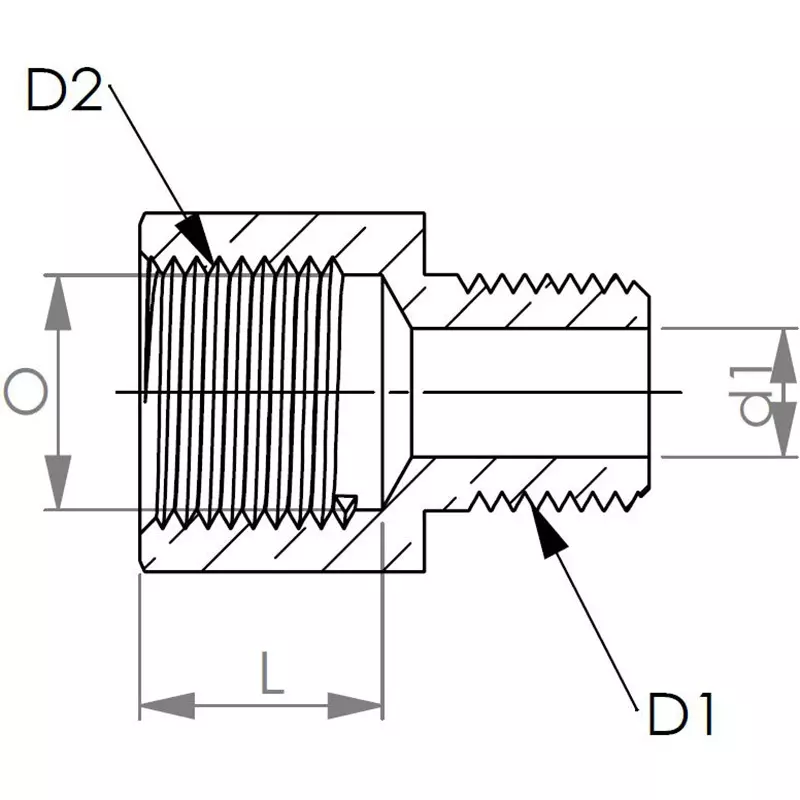

Dimension L (mm) |
18 |
Dimension O |
23 mm |

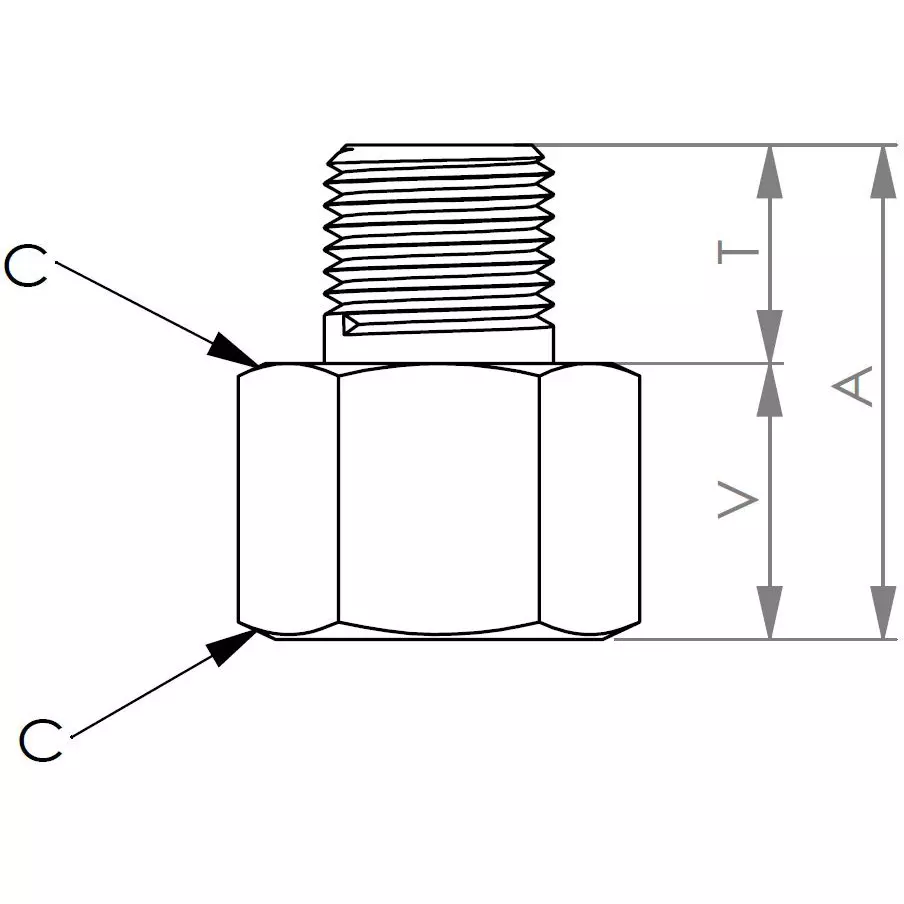

Dimension T |
15 mm |
Nominal Diameter |
PT1/2xPT3/4 |
Dimension V (mm) |
21 |
Dimension D1 (mm) |
13 |
Mounting Screw (D2) |
PT3/4 |
Chamfer Dimension C (mm) |
1.3 |

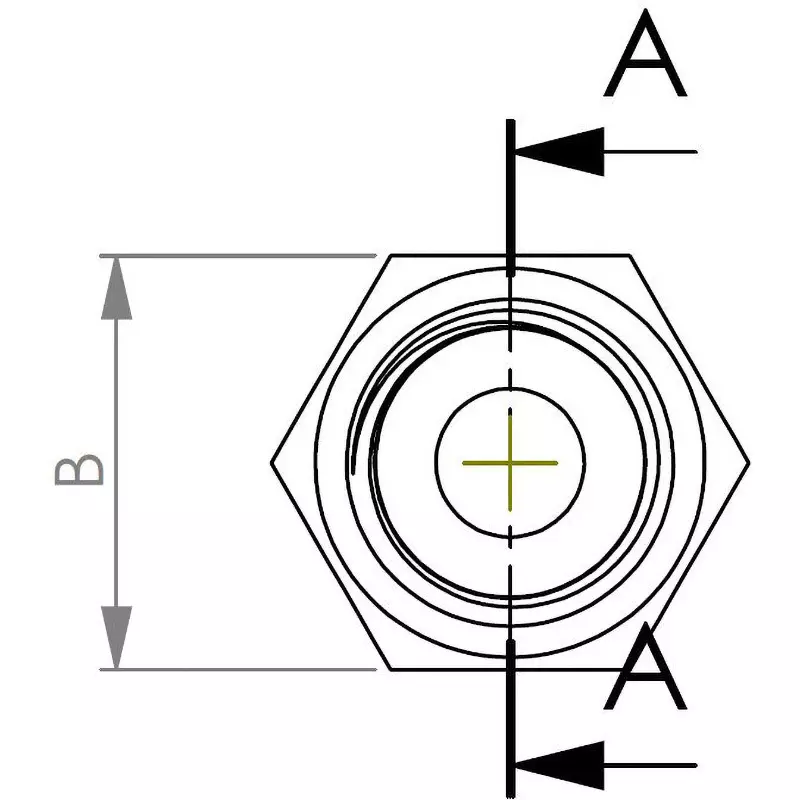

Opposite Side B (mm) |
32 |
Overall Length A (mm) |
36 |
Maximum Operating Pressure (MPa [kgf/cm²]) |
6.9[70] |
