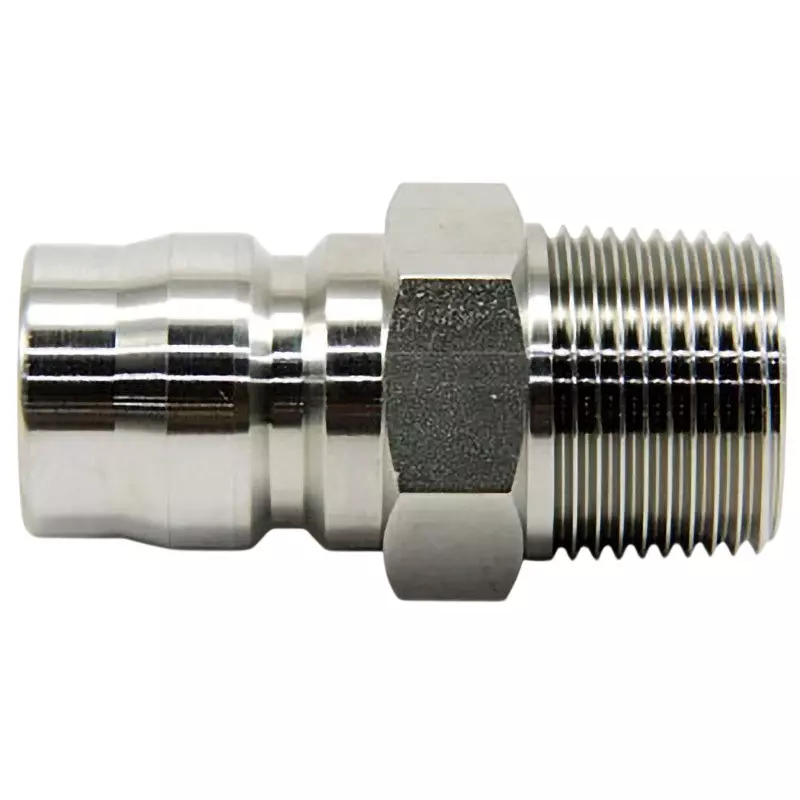

| Type of Product | Valveless Medium Pressure Plug Coupler, Stainless Steel (for Internal Threaded) |
| Material | Stainless steel SUS304 |
| Country of Origin | JAPAN |
| Model No | TS-6PM-SUS |
Type of Product |
Valveless Medium Pressure Plug Coupler, Stainless Steel (for Internal Threaded) |
Material |
Stainless steel SUS304 |
Country of Origin |
JAPAN |
Model No |
TS-6PM-SUS |
Monotaro ID |
47307057 |
Type |
TS-6 |
Connection Type |
For female screw mounting |
Operating Temperature Range |
-20 - +180°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Thread Size |
R3/4 |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
4.5 |

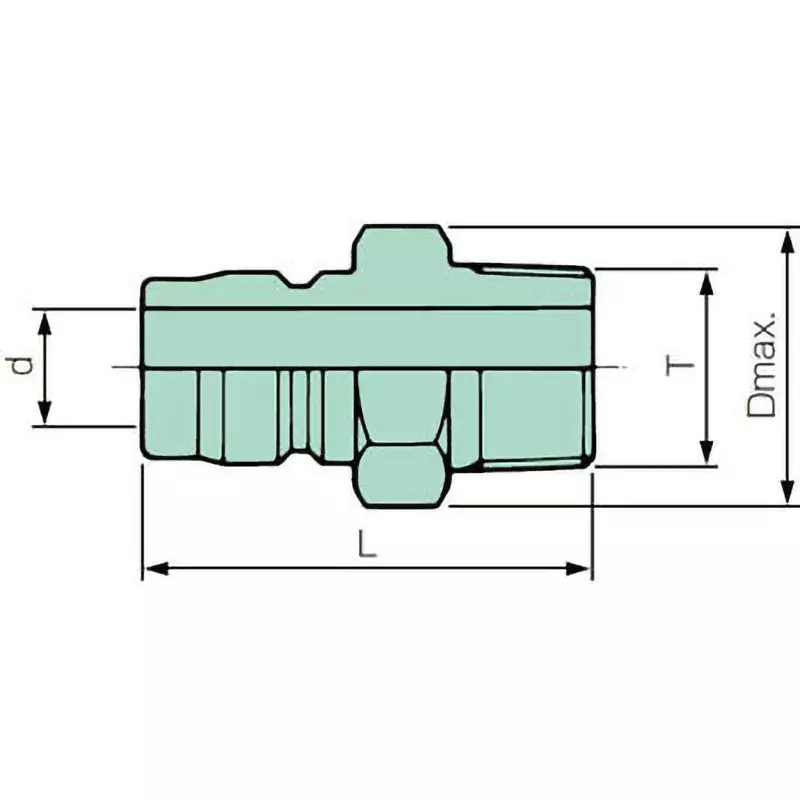

Dimension L (mm) |
59 |
Socket or Plug |
Plug |
Dimension D (Φmm) |
17 |
Dimension T |
R3/4 inch |
Nominal Diameter |
3/4 inch |
Mass (g) |
138 |
Withstand Pressure (MPa) |
6.5 |
Dimension Dmax (Φmm) |
29(HEX) |
Connection Shape |
Socket / Female thread (F) |
