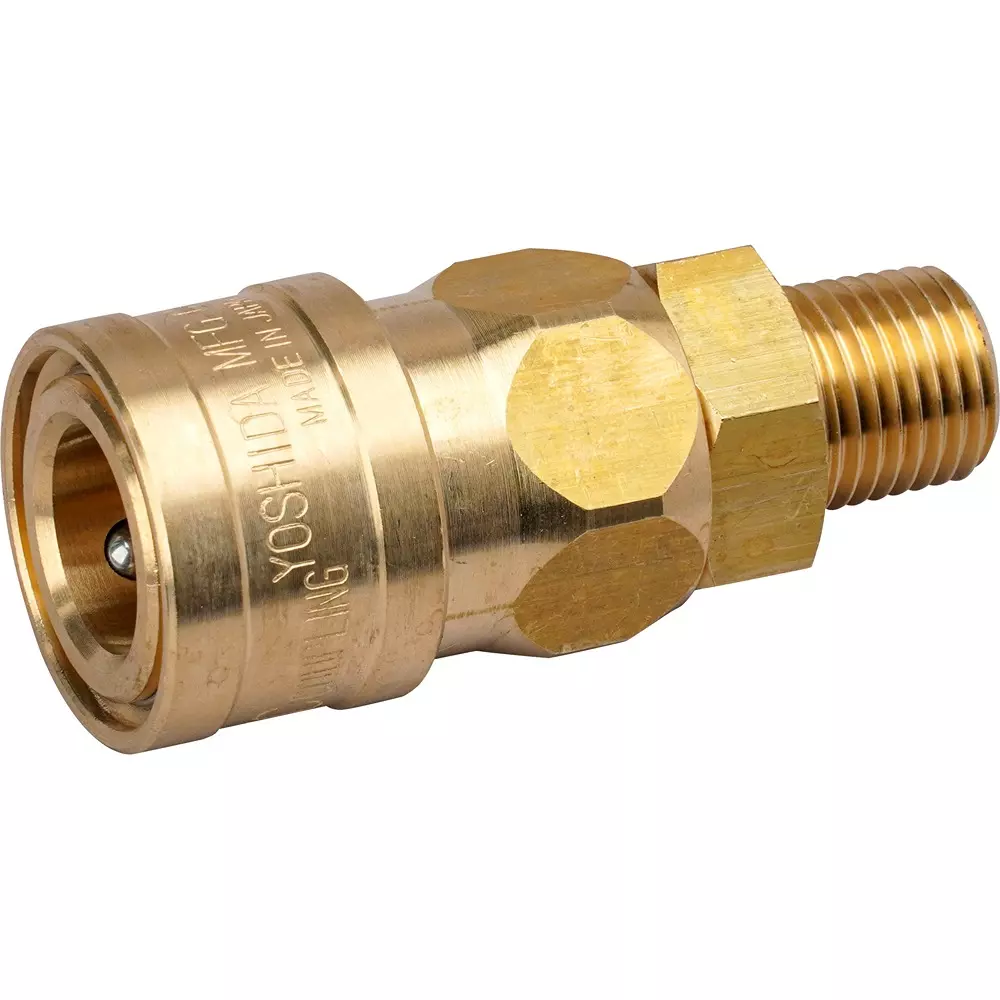

| Type of Product | Brass Socket Coupler (for Internal Threaded) |
| Material | Brass |
| Country of Origin | JAPAN |
| Model No | NL-22SM-BSBM |
Type of Product |
Brass Socket Coupler (for Internal Threaded) |
Material |
Brass |
Country of Origin |
JAPAN |
Model No |
NL-22SM-BSBM |
Monotaro ID |
32975966 |
Connection Type |
For female screw connection |
Suitable Fluid |
Air, water |
Operating Temperature Range |
-20 - 80°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1 |

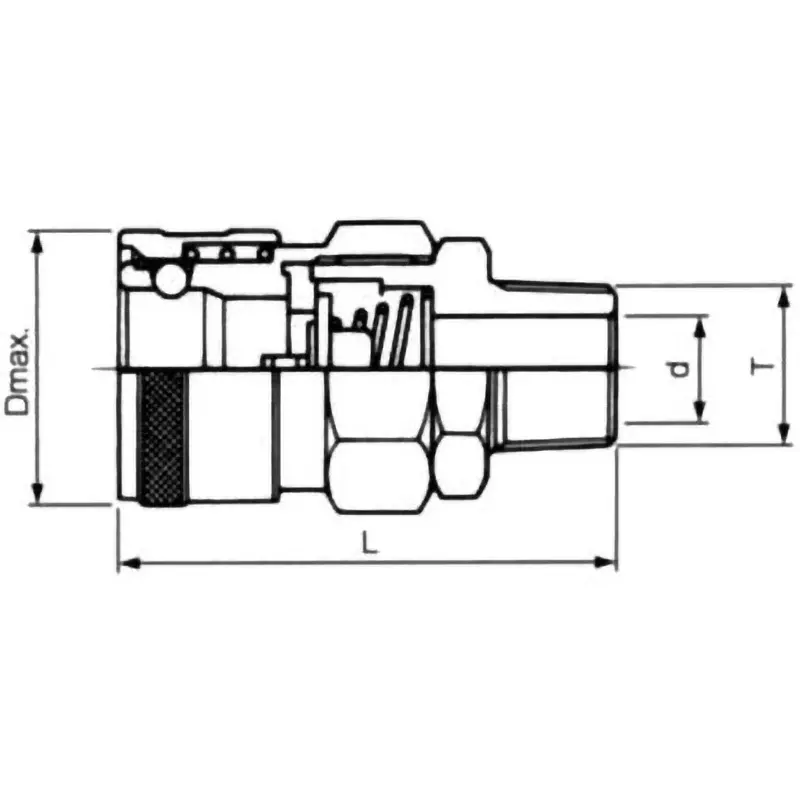

Dimension L (mm) |
55.5 |
Socket or Plug |
Socket |
Dimension D (Φmm) |
26 |
Mass (g) |
104 |
Material (O-ring) |
NBR |
Thread Diameter T |
R1/4 |
Withstand Pressure (MPa) |
1.5 |
