Ships within 25 days
View
View
View
View

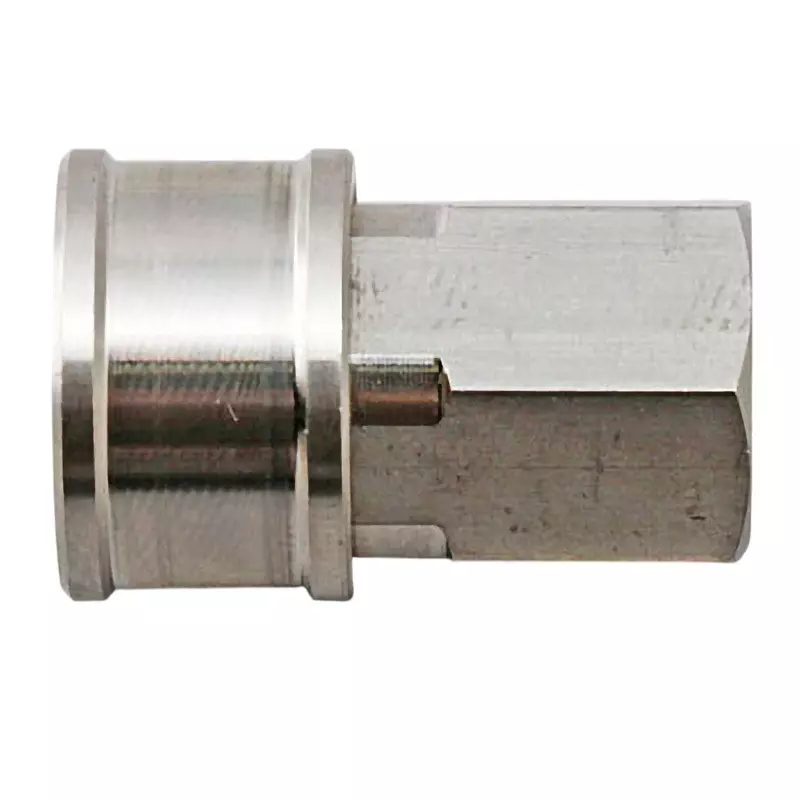

| Type of Product | Valveless Socket Coupler for Medium Pressure, Stainless Steel (for Male Screw Mounting) |
| Material | Stainless steel SUS304 |
| Country of Origin | JAPAN |
| Model No | TS-1SF-SUS |
Type of Product |
Valveless Socket Coupler for Medium Pressure, Stainless Steel (for Male Screw Mounting) |
Material |
Stainless steel SUS304 |
Country of Origin |
JAPAN |
Model No |
TS-1SF-SUS |
Monotaro ID |
47307312 |
Type |
TS-1 |
Connection Type |
For male screw mounting |
Suitable Fluid |
Water, steam, salt water, hydraulic oil, etc. |
Operating Temperature Range |
-20 - +180°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Thread Size |
Rc 1/8 |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
7.5 |

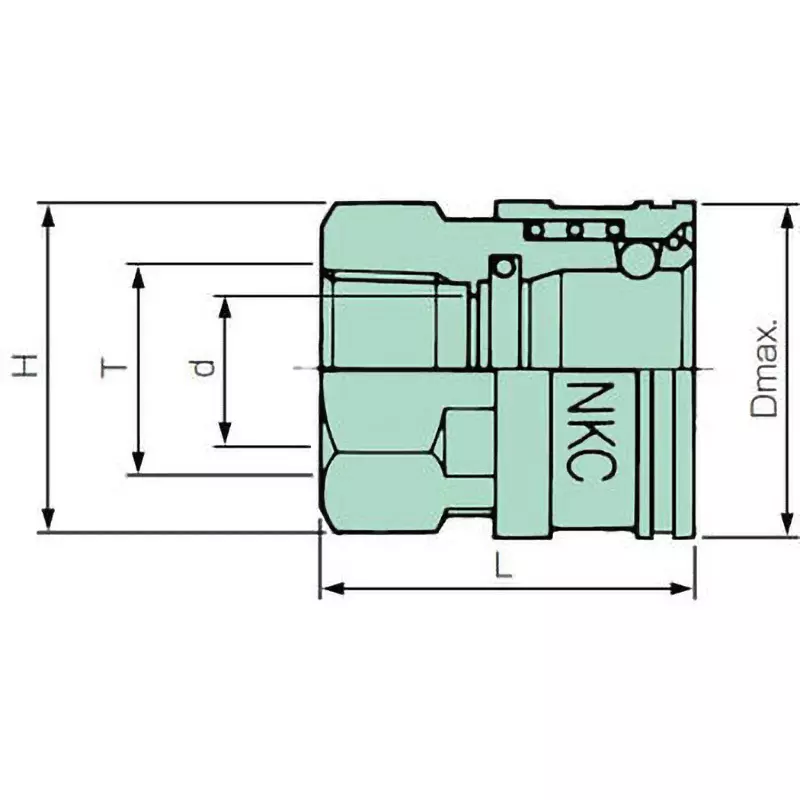

Dimension L (mm) |
25 |
Socket or Plug |
Socket |
Dimension D (Φmm) |
5 |
Dimension T |
Rc1/8 inch |
Nominal Diameter |
1/8 inch |
Dimensions H (mm) |
14(HEX) |
Mass (g) |
24 |
Withstand Pressure (MPa) |
10 |
Dimension Dmax (Φmm) |
18 |
Connection Shape |
Socket / Male (M) |
