Ships within 25 days
View
View
View
View
| Type of Product | Mold Coupler Plug (For Male Screw Mounting) |
| Material | Brass (C3604) |
| Country of Origin | JAPAN |
| Model No | KC-02PF |
Type of Product |
Mold Coupler Plug (For Male Screw Mounting) |
Material |
Brass (C3604) |
Country of Origin |
JAPAN |
Model No |
KC-02PF |
Monotaro ID |
34892155 |
Connection Type |
For male screw mounting |
Suitable Fluid |
Water |
Operating Temperature Range |
-20 to 180°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1 |

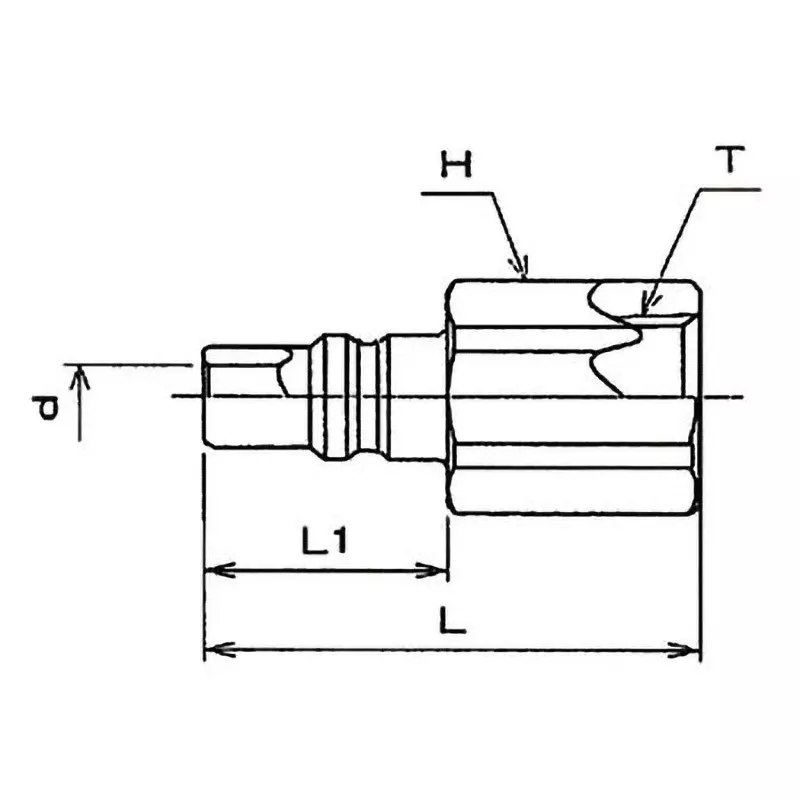

Dimension L (mm) |
30.5 |
Socket or Plug |
Plug |
Dimension D (Φmm) |
6 |
Dimensions H (mm) |
17(HEX) |
Mass (g) |
20 |
Thread Diameter T |
Rc1/4 |
Withstand Pressure (MPa) |
1.5 |
Dimension L1 |
15 mm |
