Ships within 25 days
View
View
View
View

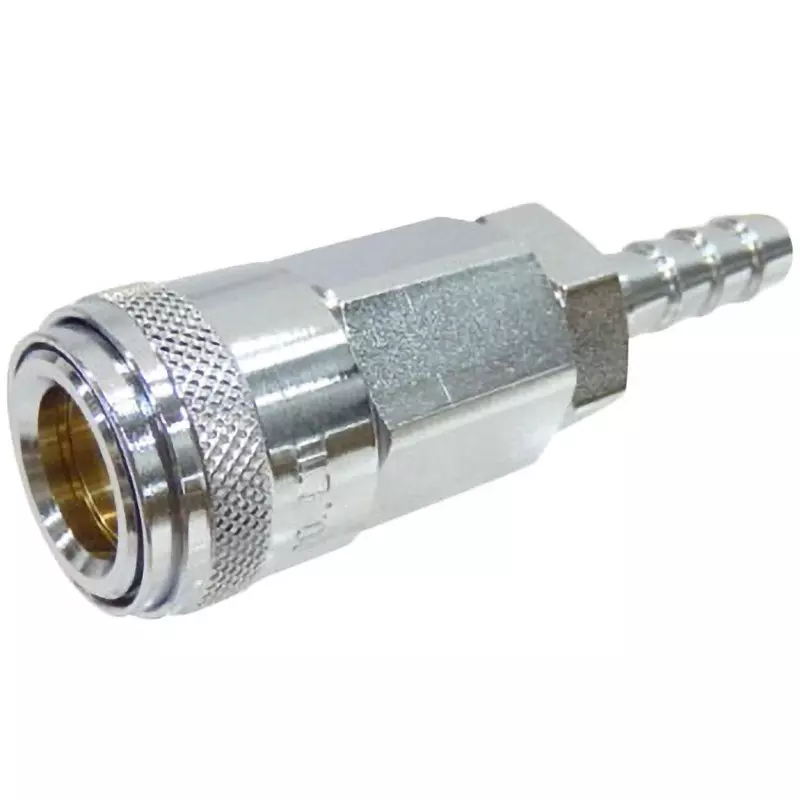

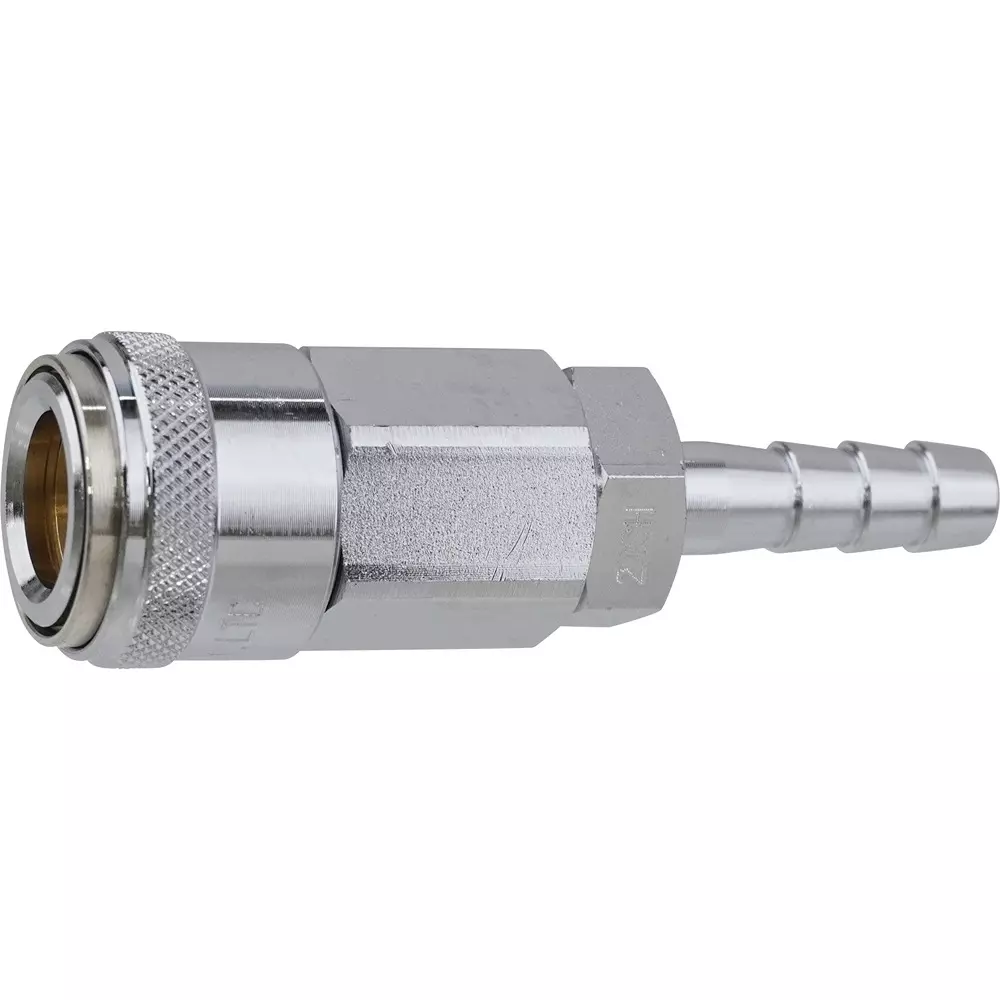

| Type of Product | One-Touch Socket Coupler (For Hose Installation) |
| Material | Steel SC (chrome plating) |
| Country of Origin | JAPAN |
| Model No | YNL-22SH |
Type of Product |
One-Touch Socket Coupler (For Hose Installation) |
Material |
Steel SC (chrome plating) |
Country of Origin |
JAPAN |
Model No |
YNL-22SH |
Monotaro ID |
32975731 |
Connection Type |
hose nipple |
Operating Temperature Range |
-20 to +80°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Thread Size |
Rc1/4 |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1.5 |

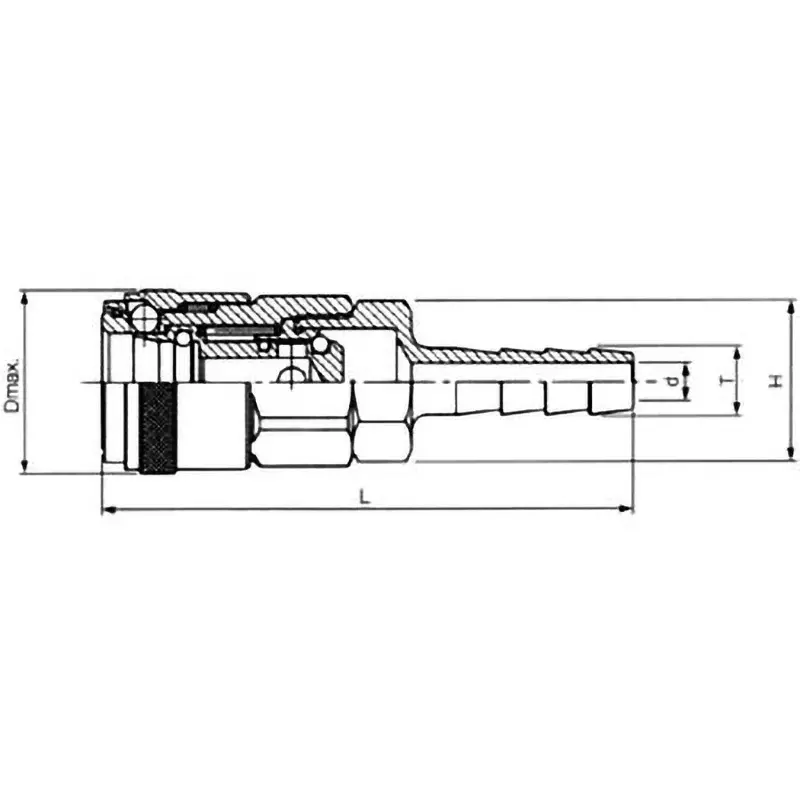

Dimension L (mm) |
79 |
Socket or Plug |
Socket |
With or Without Valve |
With valve |
Dimension D (Φmm) |
5 |
Dimension T |
9 mm |
Mating Hose Size |
46026 |
Mating Connection Size |
46026 |
Dimensions H (mm) |
19 |
Mass (g) |
95 |
Material (O-ring) |
NBR |
Withstand Pressure (MPa) |
2 |
Dimension Dmax (Φmm) |
25 |
