| Type of Product | Bronze Check Valve |
| Material | Bronze CC491K |
| Country of Origin | CHINA |
| Monotaro ID | 35345021 |
Type of Product |
Bronze Check Valve |
Material |
Bronze CC491K |
Country of Origin |
CHINA |
Monotaro ID |
35345021 |
Connection Type |
Screw-in type |
Suitable Fluid |
Water, oil, steam |
Operating Temperature Range |
170°C or less |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
2 |
Nominal Diameter (B) |
46085 |
Nominal Diameter (A) |
20 |

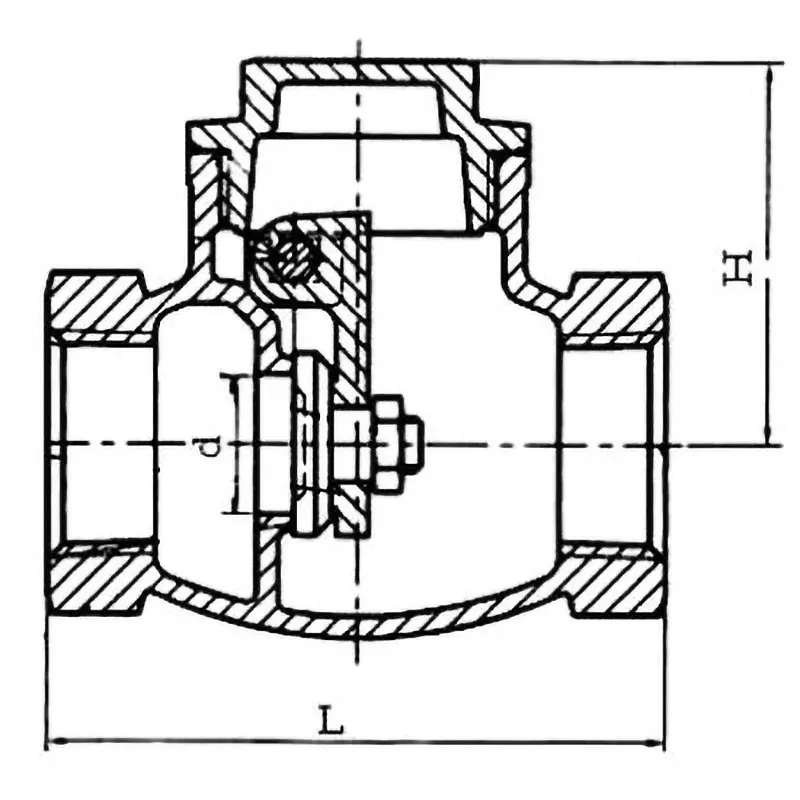

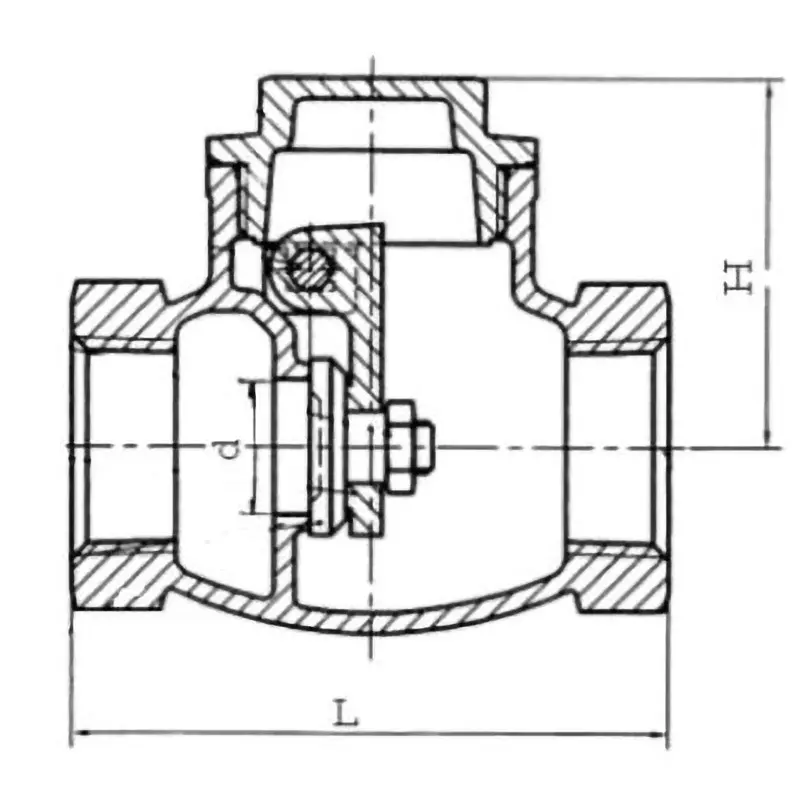

Dimension L (mm) |
66 |
Dimensions H (mm) |
43 |
Dimensions D (mm) |
19 |
Valve Type |
Check valve |
Cap Material |
Bronze CC491K |
Hinge Material |
Brass CW617N |
Material (hinge nut) |
Brass CW617N |
Material (Hinge Pin) |
Stainless Steel 2Cr13 |
