| Type of Product | Coupling Plug - Female Thread |
| Material | Steel (chrome plating) |
| Country of Origin | TAIWAN |
| Model No | PM40-Steel |
Type of Product |
Coupling Plug - Female Thread |
Material |
Steel (chrome plating) |
Country of Origin |
TAIWAN |
Model No |
PM40-Steel |
Monotaro ID |
9926235 |
Connection Type |
Male screw |
Suitable Fluid |
Air |
Operating Temperature Range |
-20 - +70°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Thread Size |
R1/2 |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1 |

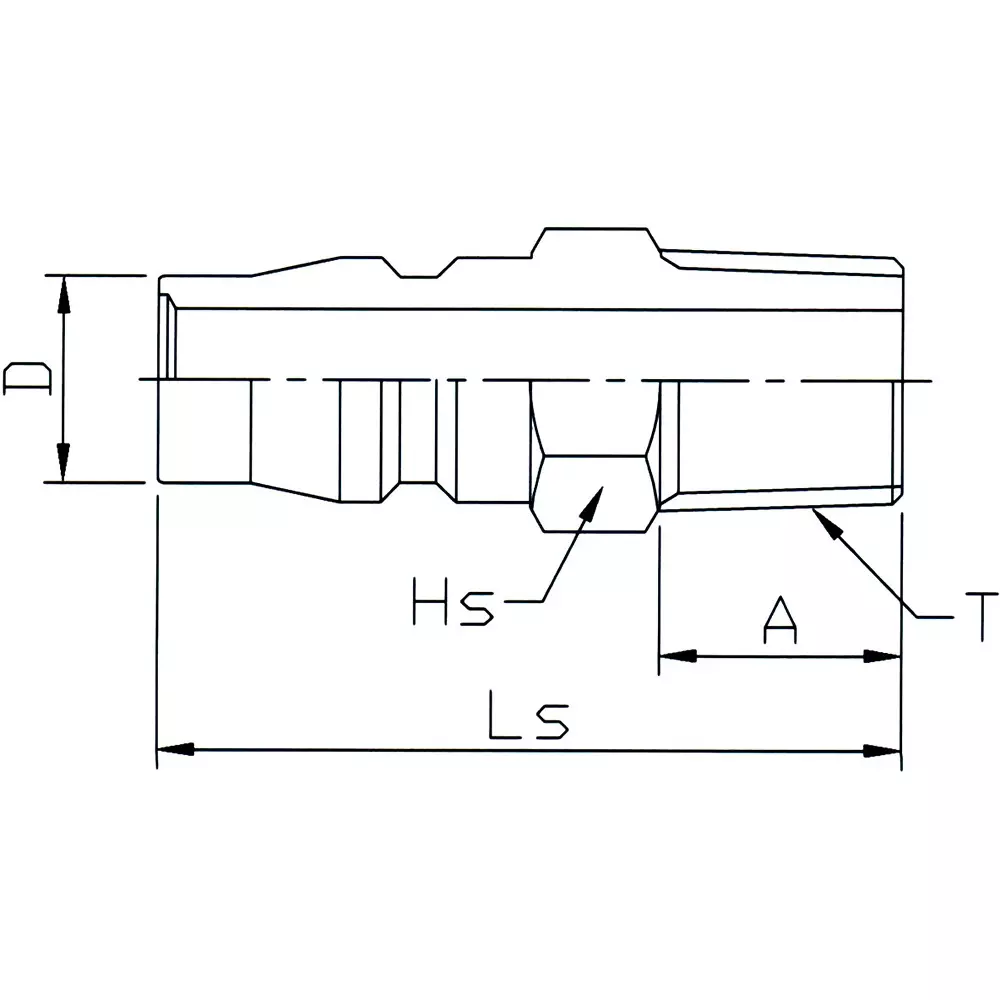

Dimensions A (mm) |
16 |
Socket or Plug |
Plug |
With or Without Valve |
Without valve |
Dimension D (Φmm) |
11 |
Dimension T |
PT1/2 inch |
Dimension Ls (mm) |
44.4 |
Mating Connection Size |
Rc1/2 |
