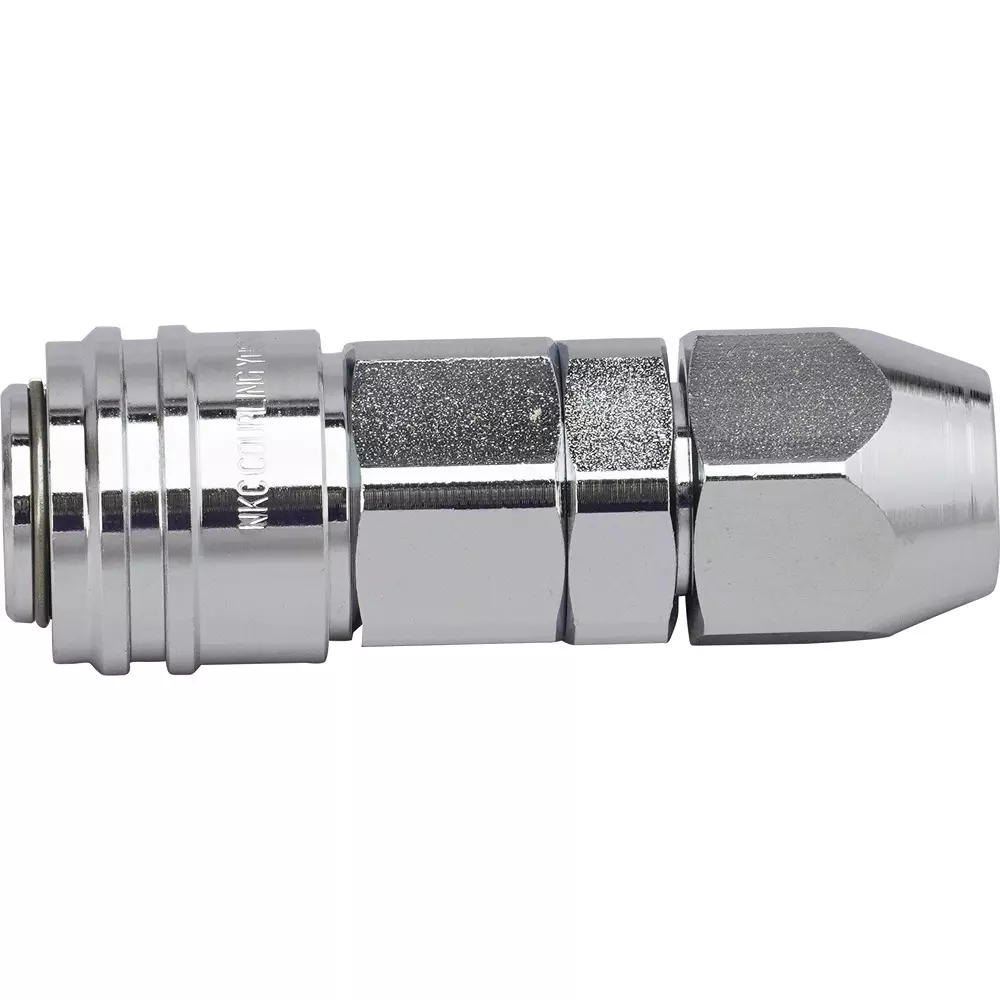

| Type of Product | Super Coupler Socket (for Urethane Hose Connection) |
| Material | Steel (SUM24L) |
| Country of Origin | JAPAN |
| Model No | AC-02SN |
Type of Product |
Super Coupler Socket (for Urethane Hose Connection) |
Material |
Steel (SUM24L) |
Country of Origin |
JAPAN |
Model No |
AC-02SN |
Monotaro ID |
47309001 |
Connection Type |
For hose installation |
Suitable Fluid |
Air |
Operating Temperature Range |
-20 - 80°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
1 |

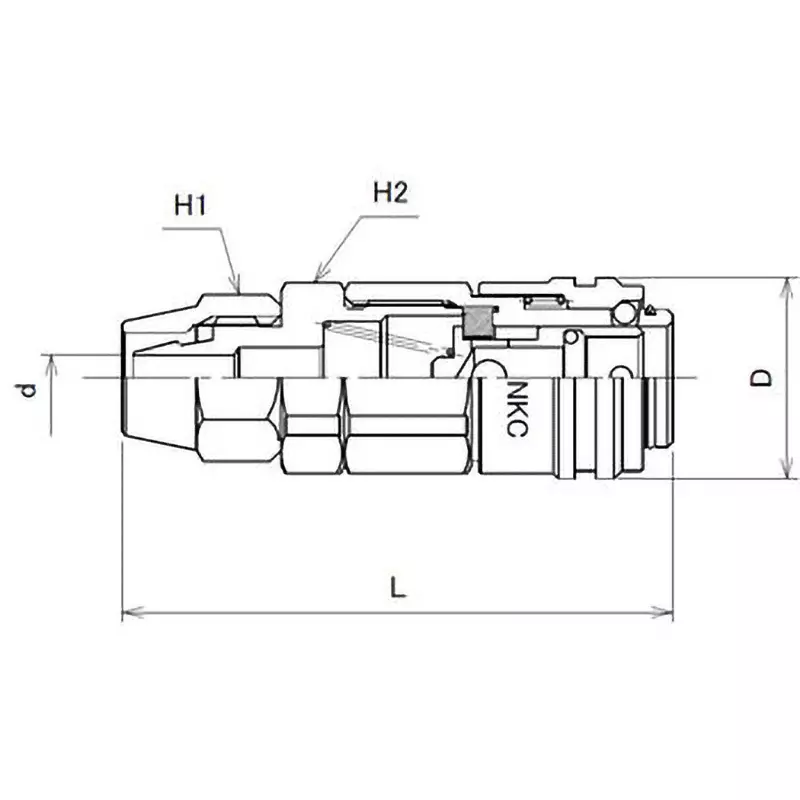

Dimension L (mm) |
47.5 |
Socket or Plug |
Socket |
Dimension D (Φmm) |
19.5 |
Mass (g) |
50 |
Withstand Pressure (MPa) |
1.5 |
Dimension H1 |
17 mm (HEX) |
Connection Size |
(Hose) 6.5 x 10 |
Applicable Hose Inner Diameter x Outer Diameter (Φmm) |
Φ6.5xΦ10 |
Dimension H2 |
17 mm (HEX) |
