| Height | 78.6 mm |

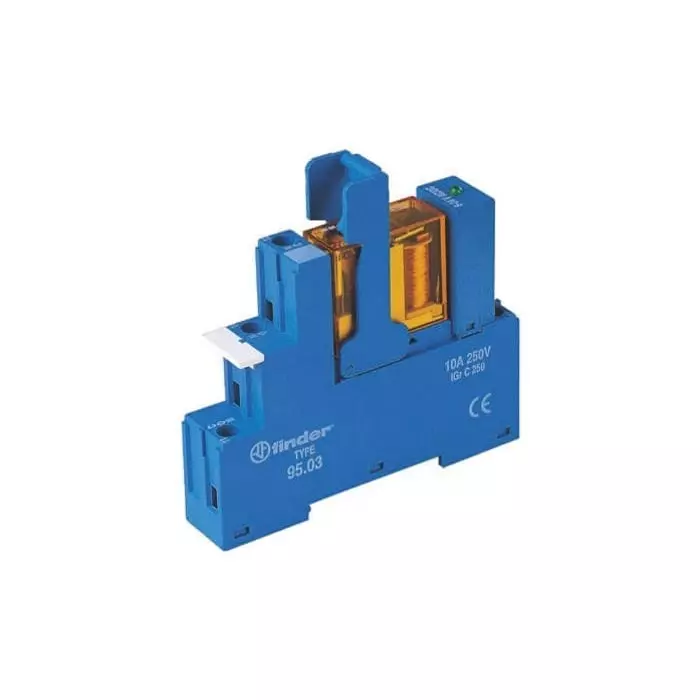

| Type of Product | Interface Relay |
| Length | 15.8 mm |
| Coil Voltage | 110 V AC |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Height |
78.6 mm |
Type of Product |
Interface Relay |
Length |
15.8 mm |
Coil Voltage |
110 V AC |
Country of Origin |
Italy |
Dimension |
15.8x75.3x78.6 mm |
No. of Pole |
1 |
Series |
48 Series |
Depth |
75.3 mm |
Terminal Type |
Screw |
Input Current |
10.1 mA |
Operating Temperature Range |
-40 to +70°C |
Contact Configuration |
SPDT |
Maximum Operating Temperature |
+70°C |
Mounting Type |
DIN Rail |
Minimum Operating Temperature |
-40°C |
Switching Voltage |
250 V AC |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Manufacturer Part Number |
48.31.8.110.0060SPA |
Standards Met |
CE, cULus, EAC, EN 60715, PCT, RINA, SA, UL, VDE |
