| Monotaro ID | 34598112 |

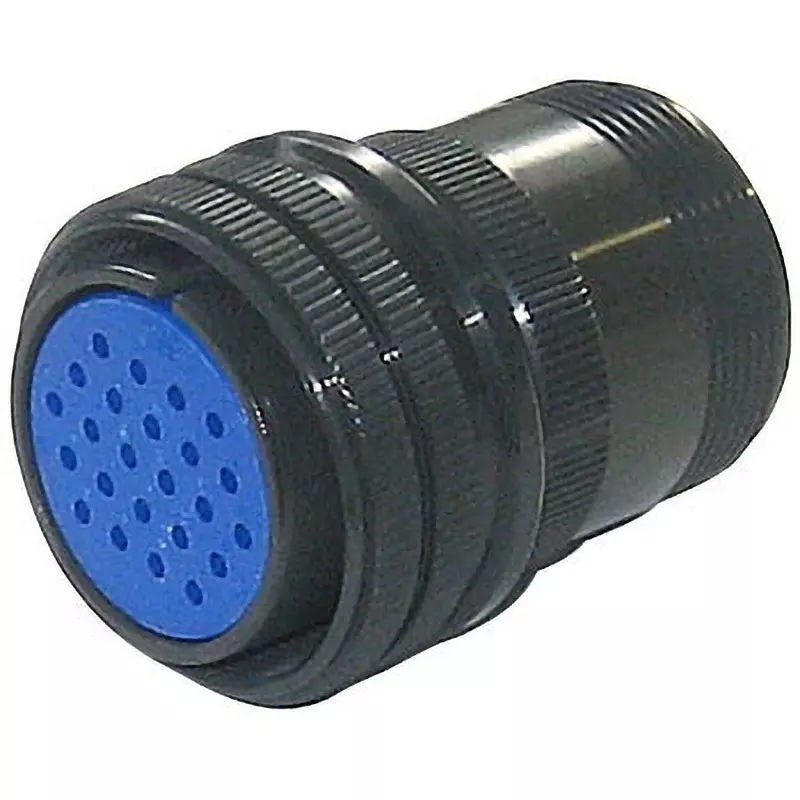

| Type of Product | Solid Shell Straight Plug |
| Model No | D/MS3106A18-4S |
| Type | Round Type |
Monotaro ID |
34598112 |
Type of Product |
Solid Shell Straight Plug |
Model No |
D/MS3106A18-4S |
Type |
Round Type |
Rated Voltage (V) |
AC 900/DC 1250 |
Rated Current (A) |
13 |
Shape |
Straight |
No. of Pole |
4 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
18-4 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
18 |
Applicable Wire Range AWG |
16 to 22 |
Compatible Cable |
1.25 mm² |
Mounting Screw |
1-20 UNEF |

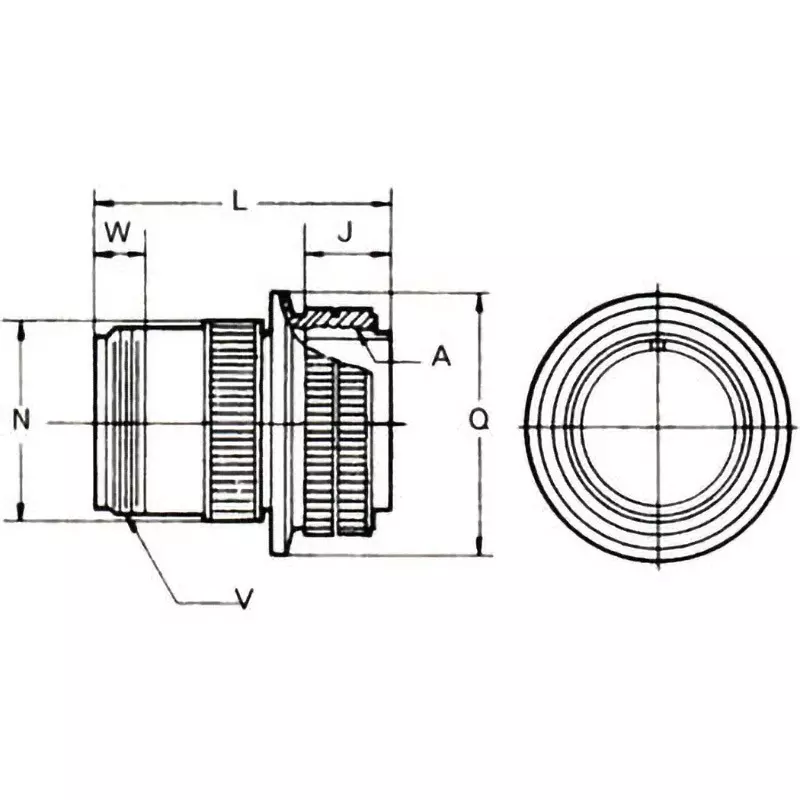

Effective Screw Length W (mm) |
9.53 Or More |
Connecting Screw A |
1 1/8-18 UNEF |
Joint Length J (mm) |
18.26(±0.12) |
Connector Nut Outer Diameter Q (Φmm) |
34.13(-0.38 to 0) |
Contact Size |
4-#16 |
Overall Length L |
50.8 mm (±0.5) |
Outer Diameter (Φmm) |
28.64(±0.5) |
