| Monotaro ID | 85044270 |

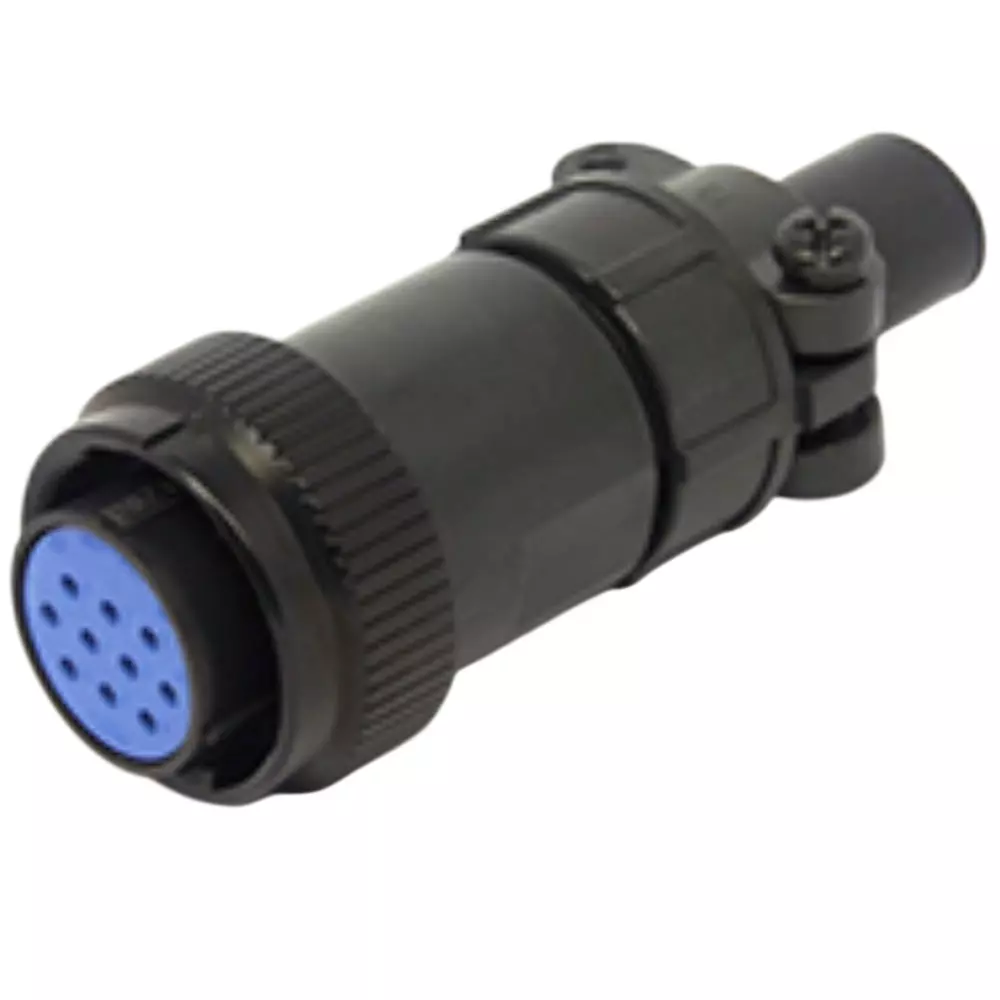

| Type of Product | Straight Plug |
| Model No | WEBSP2528F-2-D(R1) |
| Rated Voltage (V) | AC 250 (RMS) or DC 350 |
Monotaro ID |
85044270 |
Type of Product |
Straight Plug |
Model No |
WEBSP2528F-2-D(R1) |
Rated Voltage (V) |
AC 250 (RMS) or DC 350 |
Rated Current (A) |
(1 to 24) 5/contact, (A to D) 10/contact |
No. of Pole |
28 |
Suitable Wire |
(1 to 24) Conductor diameter: 1.0 mm or less, Conductor cross-sectional area: 0.5 mm2 or less (A to D) Conductor diameter: 1.5 mm or less, Conductor cross-sectional area: 1.25 mm2 or less |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Shape Type |
Socket (Female) |
Shell Size |
25 |
Suitable Cable Outer Dia. (Φmm) |
9.5 to 13.0 |
RoHS Directive |
Correspondence |
Diameter (Φmm) |
(Contact diameter) 1-24 contacts: 1.0, A-D: 1.6 |
