| Monotaro ID | 34599634 |

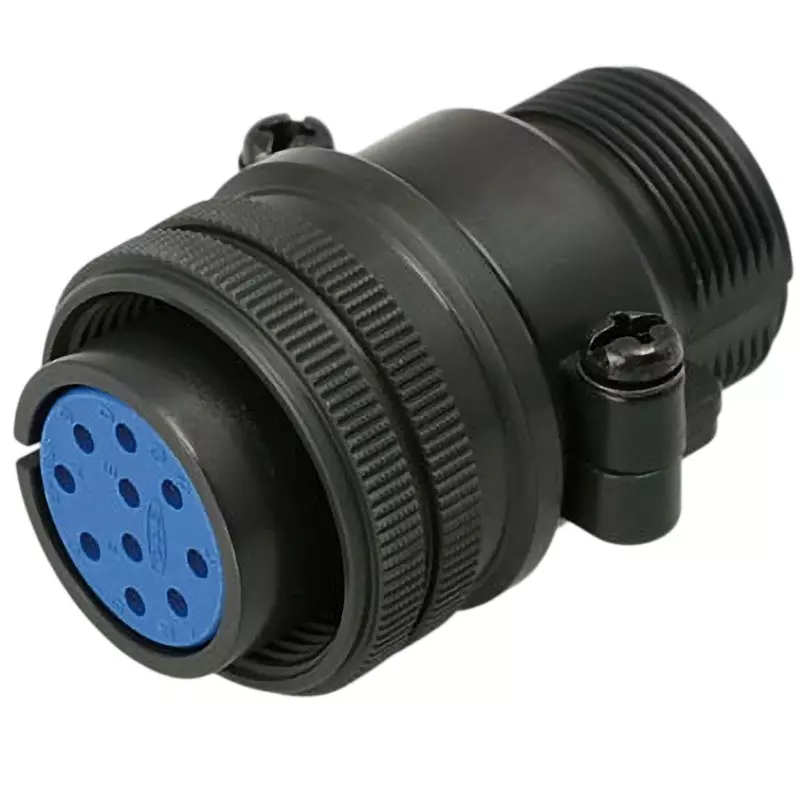

| Type of Product | Straight Plug Split Shell |
| Model No | D/MS3106B18-19S |
| Type | Round Type |
Monotaro ID |
34599634 |
Type of Product |
Straight Plug Split Shell |
Model No |
D/MS3106B18-19S |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13 |
Shape |
Straight |

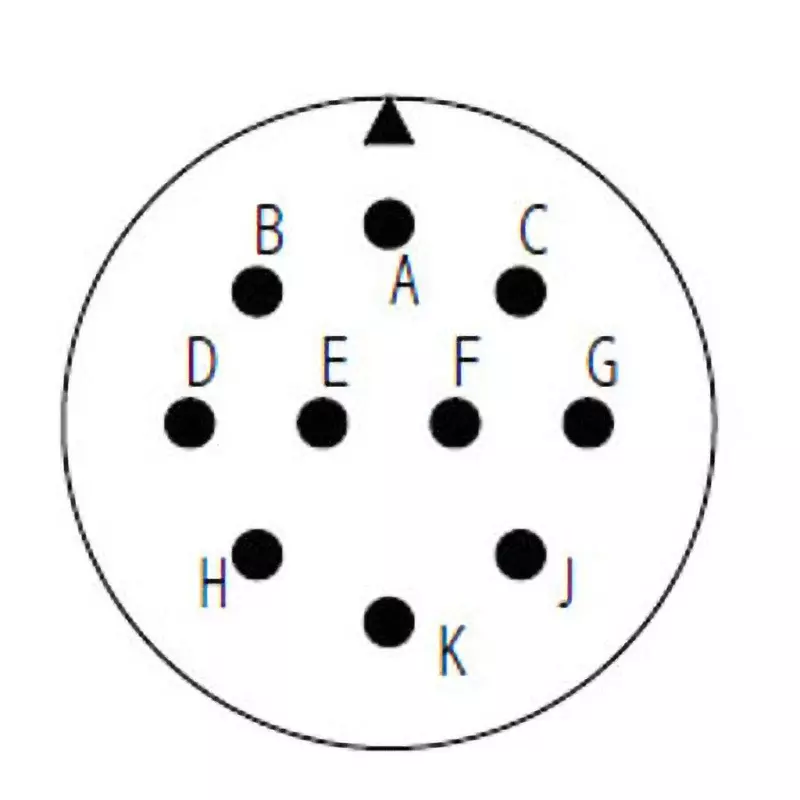

No. of Pole |
10 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
18-19 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
18 |
Applicable Wire Range AWG |
16 to 22 |
Compatible Cable |
1.25 mm² |
Mounting Screw |
1-20 UNEF |

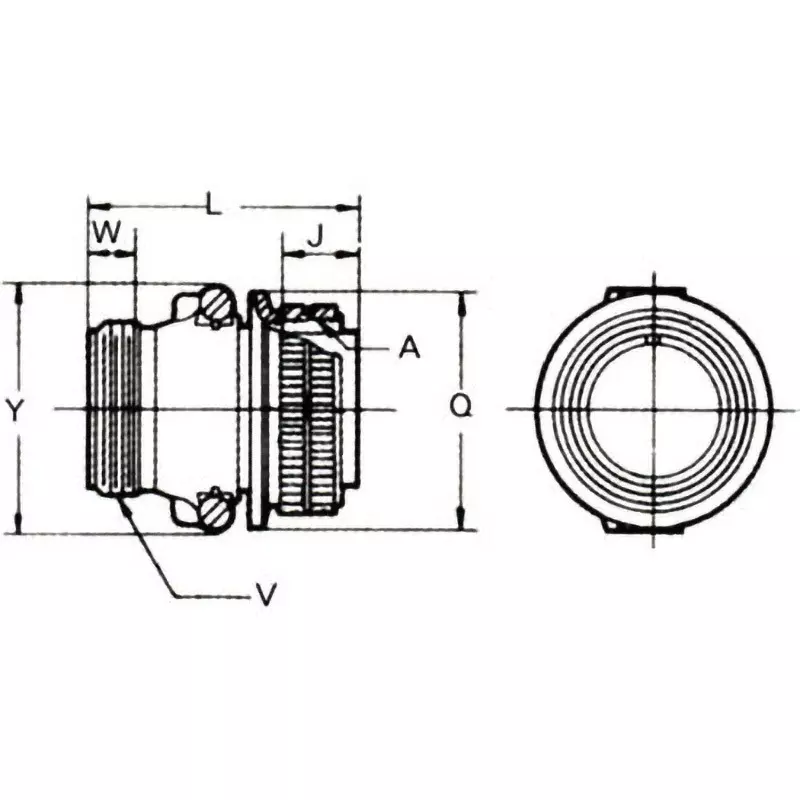

Effective Screw Length W (mm) |
9.53 Or More |
Connecting Screw A |
1 1/8-18 UNEF |
Joint Length J (mm) |
18.26(±012) |
Connector Nut Outer Diameter Q (Φmm) |
34.13(-0.38 to 0) |
Contact Size |
10-#16 |
Overall Length L |
52.37 mm or less |
Maximum Width (mm) |
42 or less |
