| Monotaro ID | 34600806 |

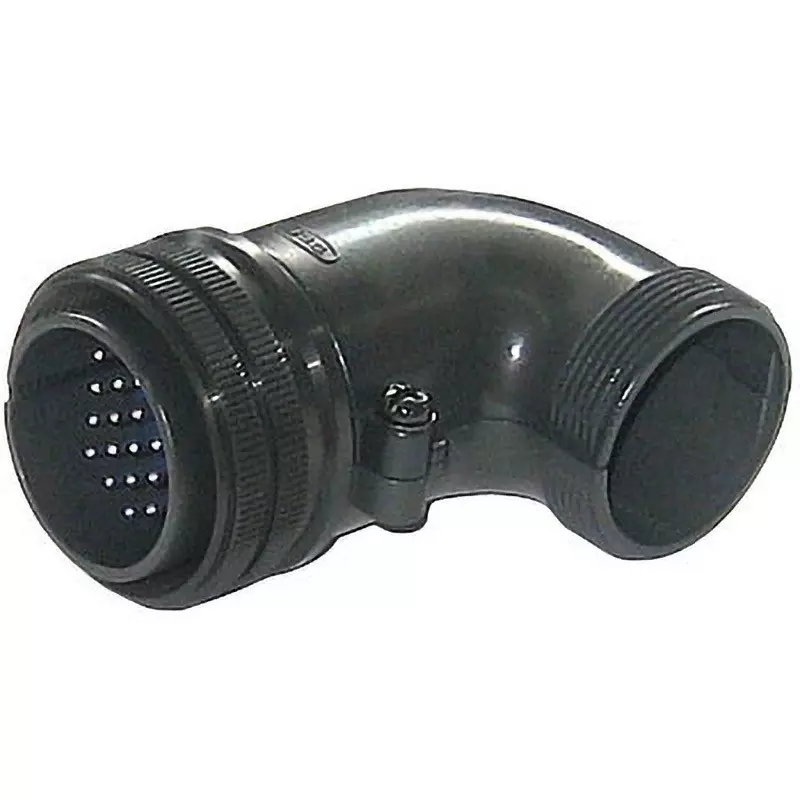

| Type of Product | L-Shaped Plug Split Shell |
| Model No | D/MS3108B16S-1P |
| Type | Round Type |
Monotaro ID |
34600806 |
Type of Product |
L-Shaped Plug Split Shell |
Model No |
D/MS3108B16S-1P |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13 |
Shape |
Angle |
No. of Pole |
7 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Sequence Number |
16S-1 |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
16S |
Applicable Wire Range AWG |
16 to 22 |
Compatible Cable |
1.25 mm² |
Mounting Screw |
7/8-20 UNEF |

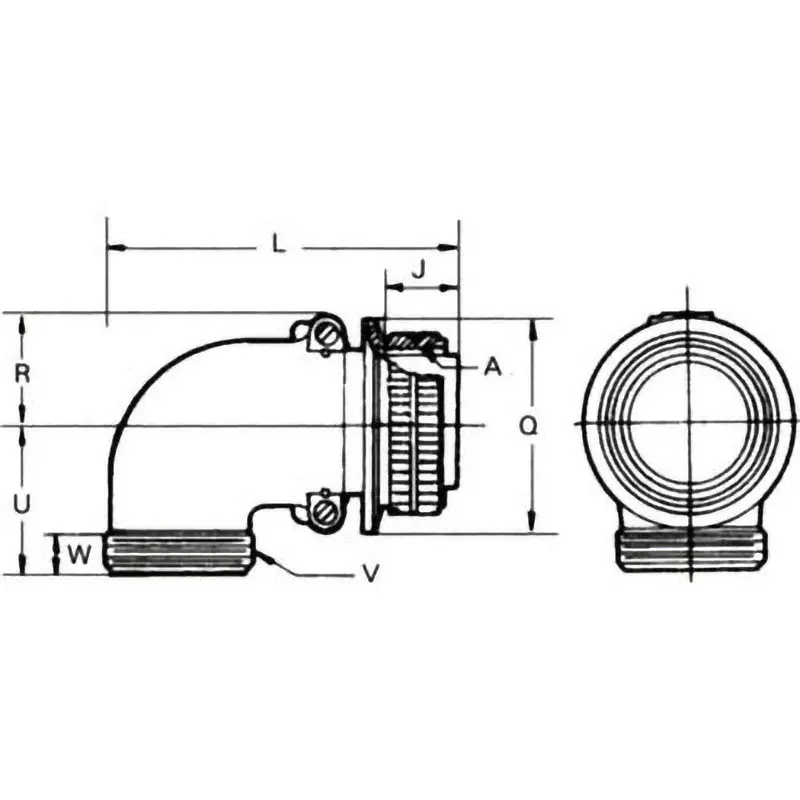

Dimension R |
18.5 mm (±0.5) |
Effective Screw Length W (mm) |
9.53 Or More |
Connecting Screw A |
1-20 UNEF |
Joint Length J (mm) |
13.49(±0.12) |
Dimension U (mm) |
28.6(±0.5) |
Connector Nut Outer Diameter Q (Φmm) |
31.75(-0.38 to 0) |
Contact Size |
7-#16 |
Overall Length L |
60.32 mm or less |
