| Monotaro ID | 34601874 |

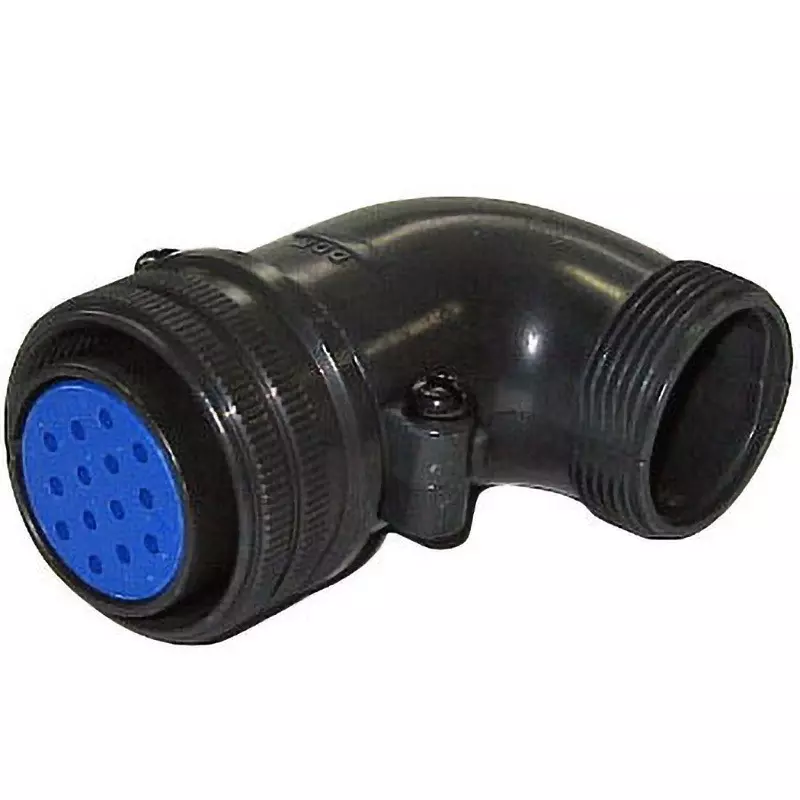

| Type of Product | L-Shaped Plug Split Shell |
| Model No | D/MS3108B32-9S |
| Type | Round Type |
Monotaro ID |
34601874 |
Type of Product |
L-Shaped Plug Split Shell |
Model No |
D/MS3108B32-9S |
Type |
Round Type |
Rated Voltage (V) |
AC 900/DC 1250 |
Rated Current (A) |
13/80 |
Shape |
Angle |
No. of Pole |
14 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Sequence Number |
32-9 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
32 |
Applicable Wire Range AWG |
(#4)4 to 6, (#16)16 to 22 |
Compatible Cable |
(#4)22, (#16)1.25 mm² |
Mounting Screw |
1 3/4-18 UNS |

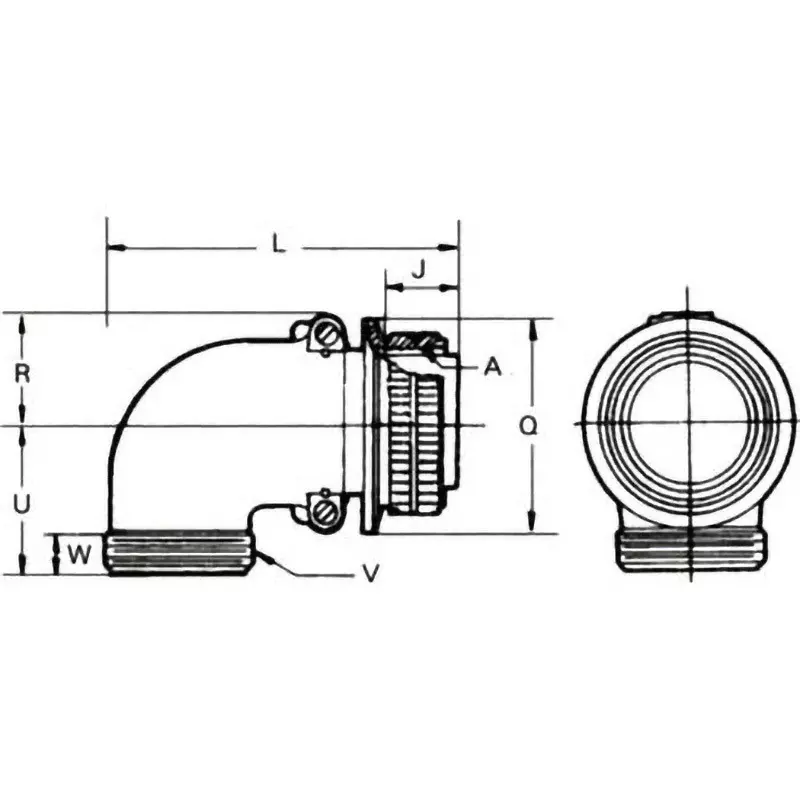

Dimension R |
32.8 mm (±0.5) |
Effective Screw Length W (mm) |
11.13 or more |
Connecting Screw A |
2-18 UNS |
Joint Length J (mm) |
18.26(±0.12) |
Dimension U (mm) |
44.4(±0.5) |
Connector Nut Outer Diameter Q (Φmm) |
56.33(-0.38 to 0) |

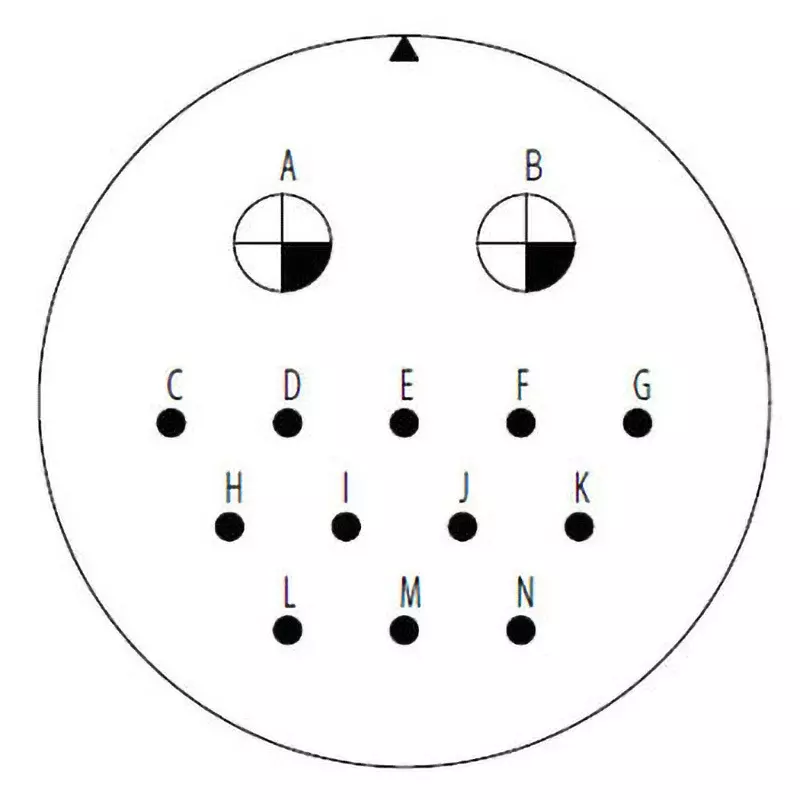

Contact Size |
2-#4, 12-#16 |
Overall Length L |
95.25 mm or less |
