| Monotaro ID | 34598627 |
| Type of Product | Solid Shell Straight Plug |
| Model No | D/MS3106A22-23P |
| Type | Round Type |
Monotaro ID |
34598627 |
Type of Product |
Solid Shell Straight Plug |
Model No |
D/MS3106A22-23P |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC700, AC 500/DC700 |
Rated Current (A) |
23 |
Shape |
Straight |

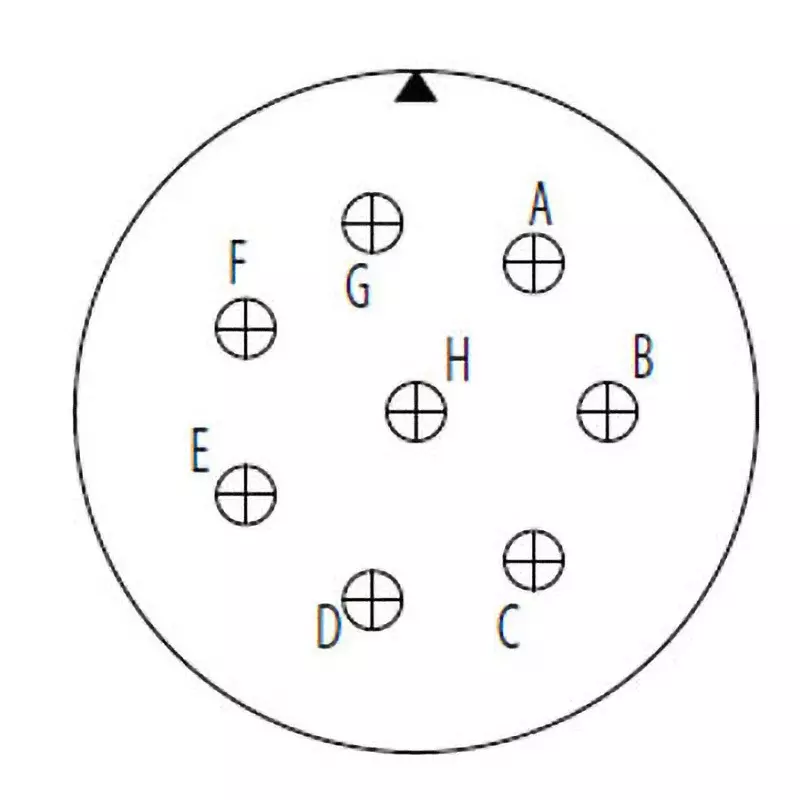

No. of Pole |
8 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
22-23 |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
22 |
Applicable Wire Range AWG |
12 to 14 |
Compatible Cable |
3.5 mm² |

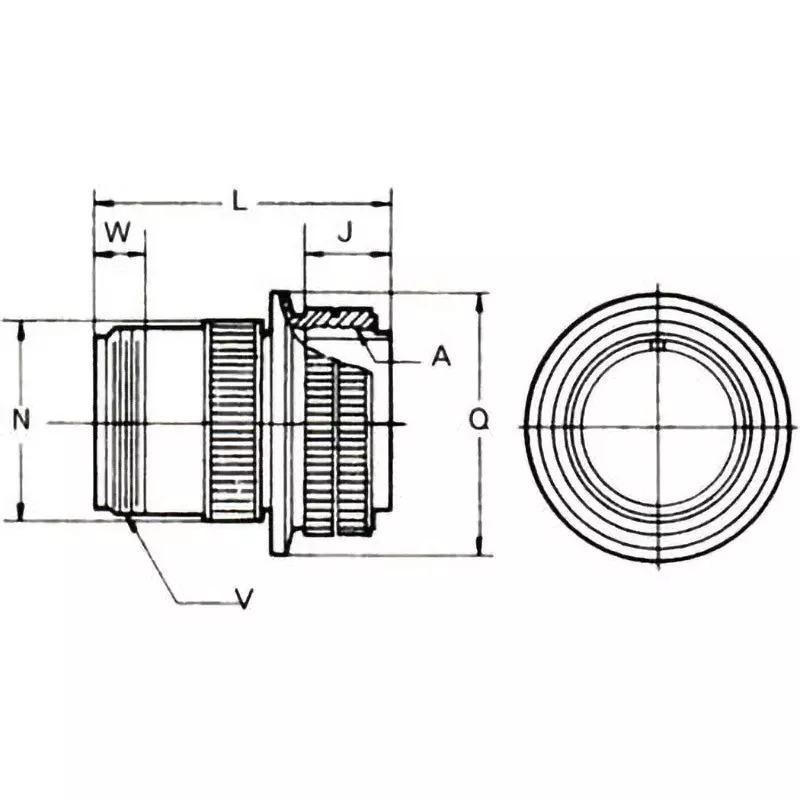

Mounting Screw |
1 3/16-18 UNEF |
Effective Screw Length W (mm) |
9.53 Or More |
Connecting Screw A |
1 3/8-18 UNEF |
Joint Length J (mm) |
18.26(±0.12) |
Connector Nut Outer Diameter Q (Φmm) |
40.48(-0.38 to 0) |
Contact Size |
8-#12 |
Overall Length L |
54 mm (±0.5) |
Outer Diameter (Φmm) |
34.99(±0.5) |
