| Monotaro ID | 34601271 |
| Type of Product | L-Shaped Plug Split Shell |
| Model No | D/MS3108B20-23S |
| Type | Round Type |
Monotaro ID |
34601271 |
Type of Product |
L-Shaped Plug Split Shell |
Model No |
D/MS3108B20-23S |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
46 |
Shape |
Angle |

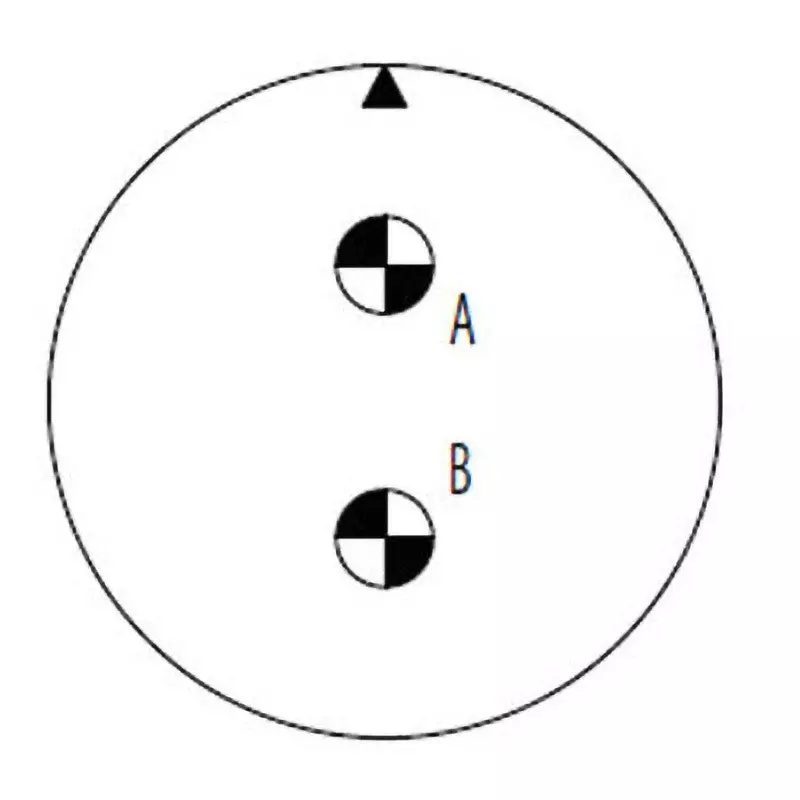

No. of Pole |
2 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Sequence Number |
20-23 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
20 |
Applicable Wire Range AWG |
8 to 10 |
Compatible Cable |
8 mm² |
Mounting Screw |
1 3/16-18 UNEF |

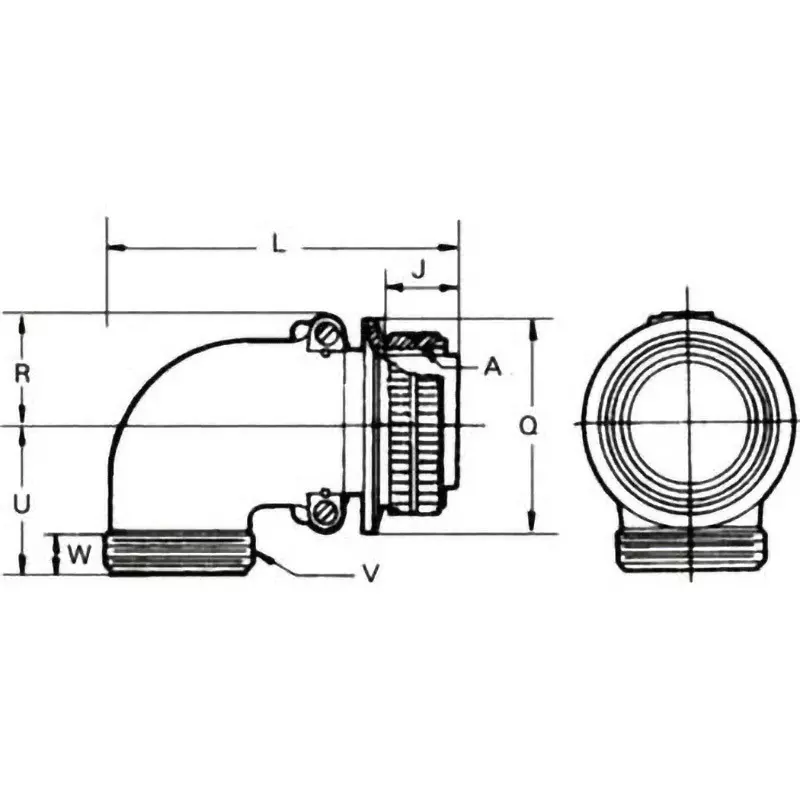

Dimension R |
22.5 mm (±0.5) |
Effective Screw Length W (mm) |
9.53 Or More |
Connecting Screw A |
1 1/4-18 UNEF |
Joint Length J (mm) |
18.26(±0.12) |
Dimension U (mm) |
33.3(±0.5) |
Connector Nut Outer Diameter Q (Φmm) |
37.28(-0.38 to 0) |
Contact Size |
2-#8 |
Overall Length L |
76.98 mm or less |
