| Monotaro ID | 34599153 |

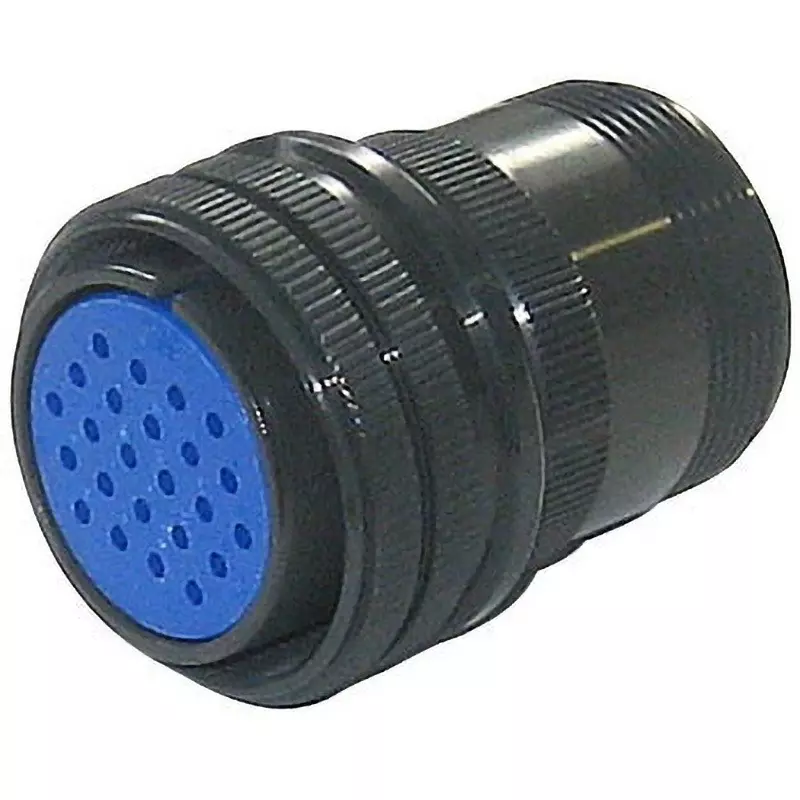

| Type of Product | Solid Shell Straight Plug |
| Model No | D/MS3106A36-3S |
| Type | Round Type |
Monotaro ID |
34599153 |
Type of Product |
Solid Shell Straight Plug |
Model No |
D/MS3106A36-3S |
Type |
Round Type |
Rated Voltage (V) |
AC 900/DC 1250 |
Rated Current (A) |
23/150 |
Shape |
Straight |
No. of Pole |
6 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |

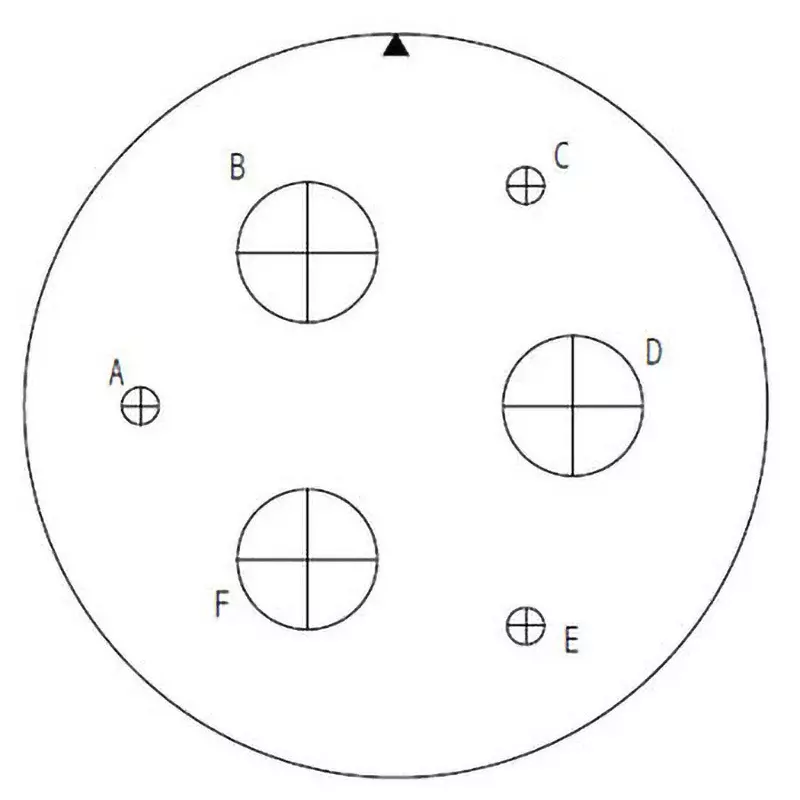

Sequence Number |
36-3 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
36 |
Applicable Wire Range AWG |
(#0)0 to 2, (#12)12 to 14 |
Compatible Cable |
(#0)50, (#12)3.5 mm² |
Mounting Screw |
2-18 UNS |

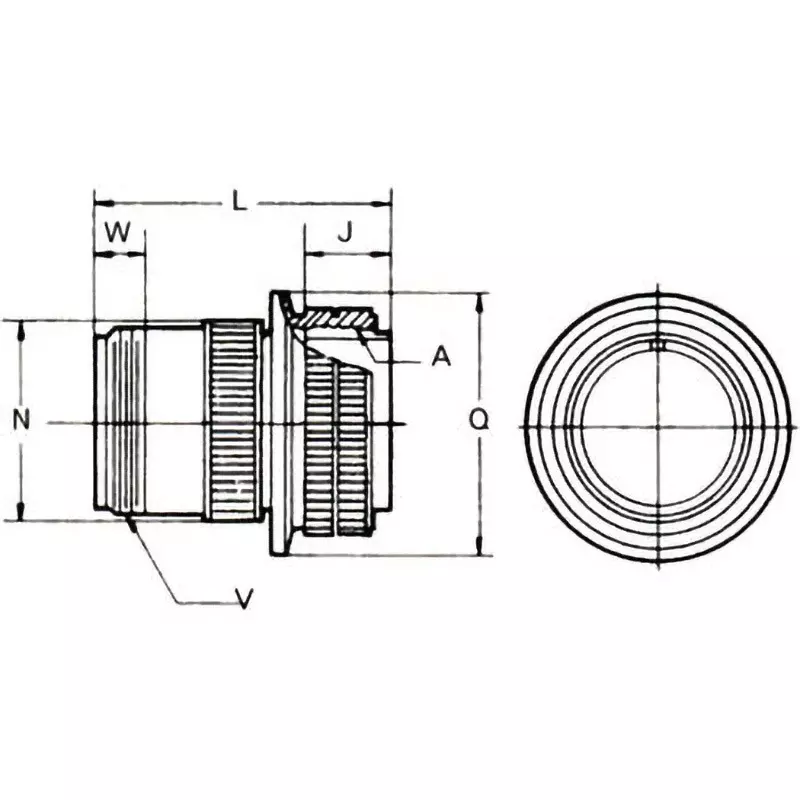

Effective Screw Length W (mm) |
12.7 or more |
Connecting Screw A |
2 1/4-16UN |
Joint Length J (mm) |
18.26(±0.12) |
Connector Nut Outer Diameter Q (Φmm) |
62.68(-0.38 to 0) |
Contact Size |
3-#0, 3-#12 |
Overall Length L |
60.3 mm (±0.5) |
Outer Diameter (Φmm) |
57.21(±0.5) |
