Ships within 25 days
View
View
View
View
| Monotaro ID | 85044595 |

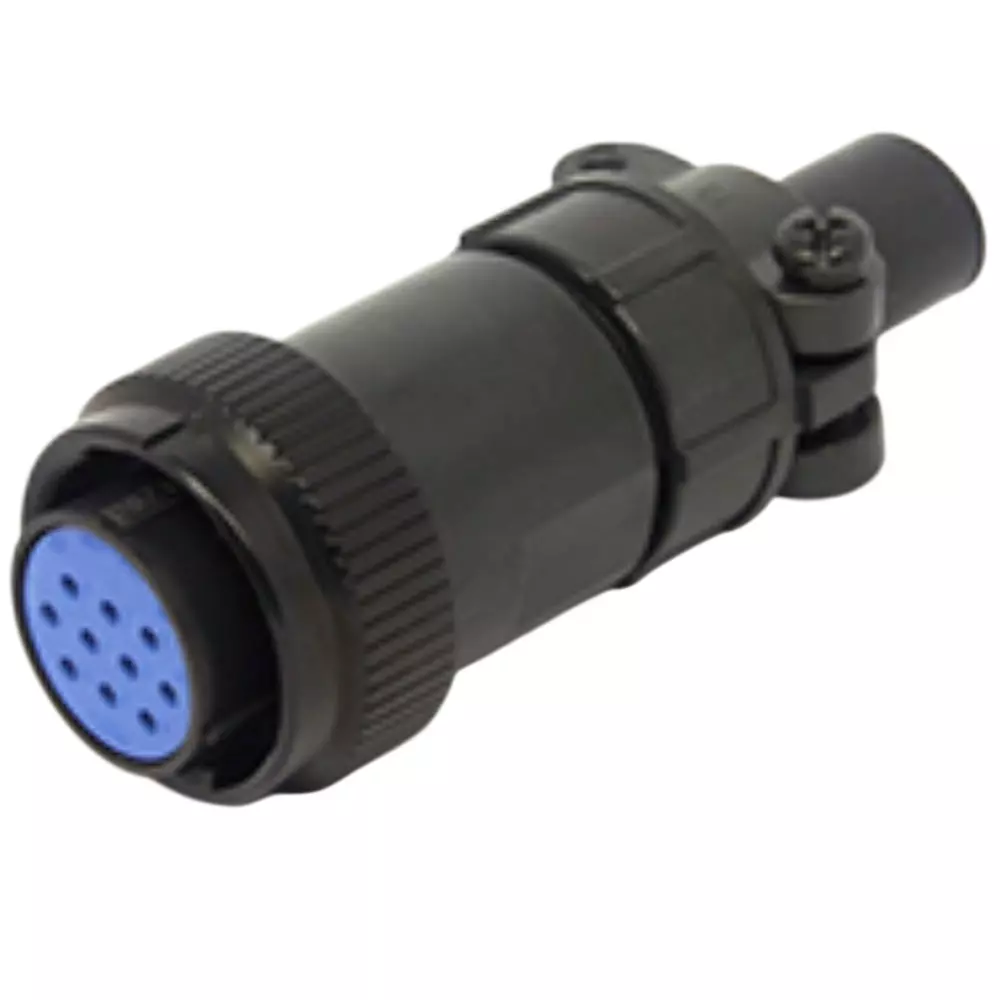

| Type of Product | Straight Plug |
| Model No | WEBSP2524M-3-D(R1) |
| Rated Voltage (V) | AC 250 (RMS) or DC 350 |
Monotaro ID |
85044595 |
Type of Product |
Straight Plug |
Model No |
WEBSP2524M-3-D(R1) |
Rated Voltage (V) |
AC 250 (RMS) or DC 350 |
Rated Current (A) |
5 / Contact |
No. of Pole |
24 |
Suitable Wire |
Conductor diameter: 1.0 mm or less, Conductor cross-section: 0.5 mm² or less |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Shape Type |
Pin (Male) |
Shell Size |
25 |
Suitable Cable Outer Dia. (Φmm) |
6.8 to 10.0 |
RoHS Directive |
Correspondence |
Diameter (Φmm) |
Contact diameter) 1 |
