| Monotaro ID | 34601454 |

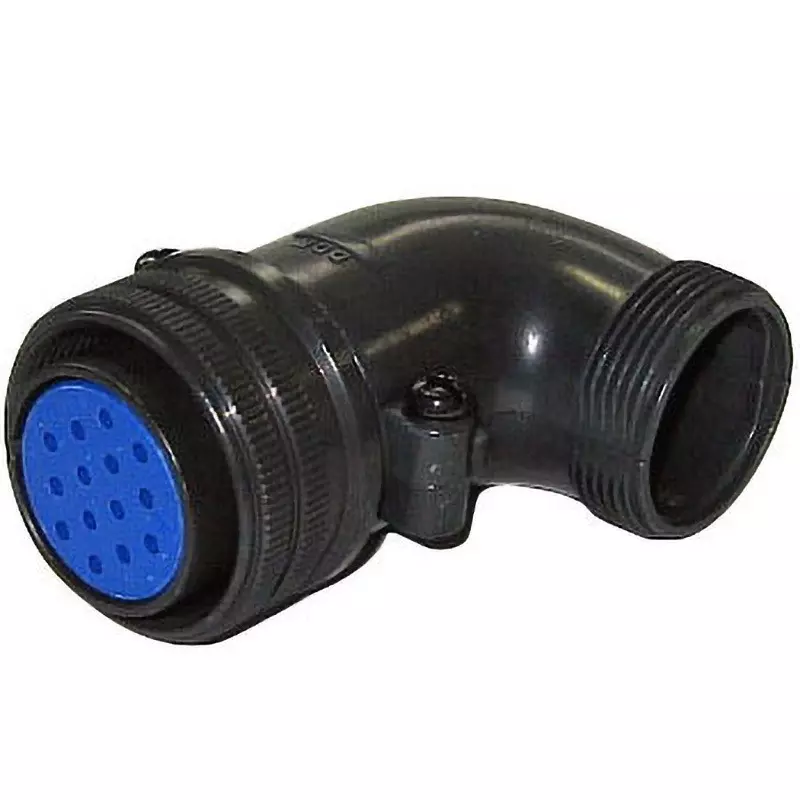

| Type of Product | L-Shaped Plug Split Shell |
| Model No | D/MS3108B22-28S |
| Type | Round Type |
Monotaro ID |
34601454 |
Type of Product |
L-Shaped Plug Split Shell |
Model No |
D/MS3108B22-28S |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
23 |
Shape |
Angle |

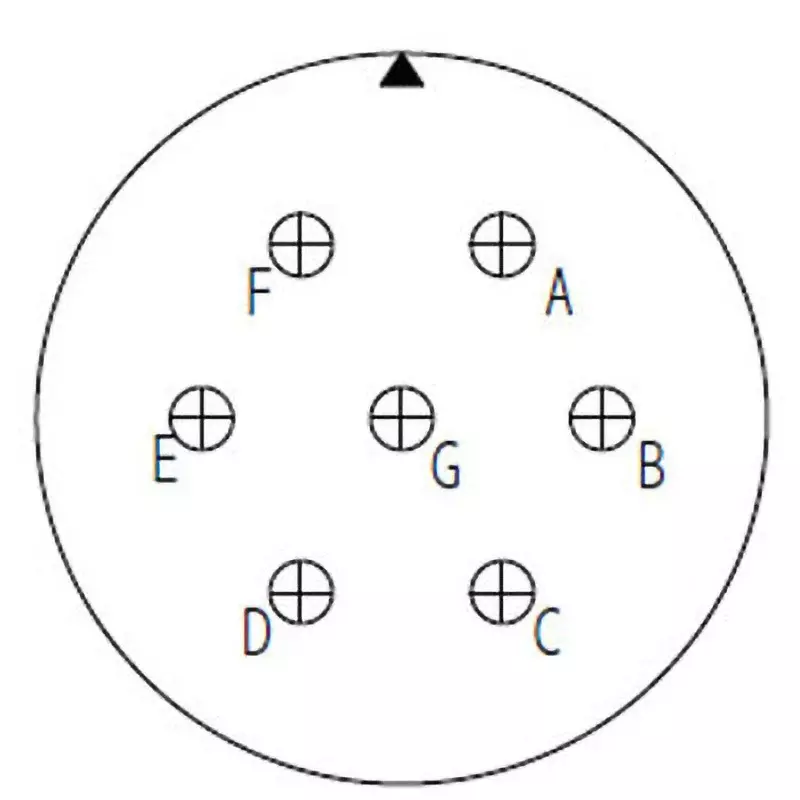

No. of Pole |
7 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Sequence Number |
22-28 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
22 |
Applicable Wire Range AWG |
12 to 14 |
Compatible Cable |
3.5 mm² |
Mounting Screw |
1 3/16-18 UNEF |

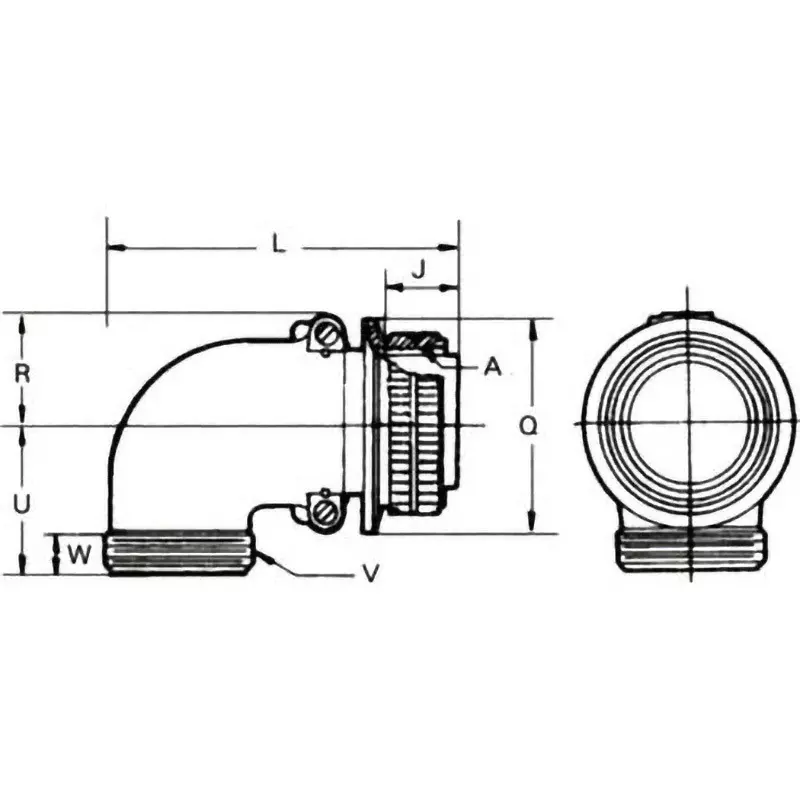

Dimension R |
24.1 mm (±0.5) |
Effective Screw Length W (mm) |
9.53 Or More |
Connecting Screw A |
1 3/8-18 UNEF |
Joint Length J (mm) |
18.26(±0.12) |
Dimension U (mm) |
33.3(±0.5) |
Connector Nut Outer Diameter Q (Φmm) |
40.48(-0.38 to 0) |
Contact Size |
7-#12 |
Overall Length L |
76.98 mm or less |
