Ships within 25 days
View
View
View
View
| Monotaro ID | 34598794 |

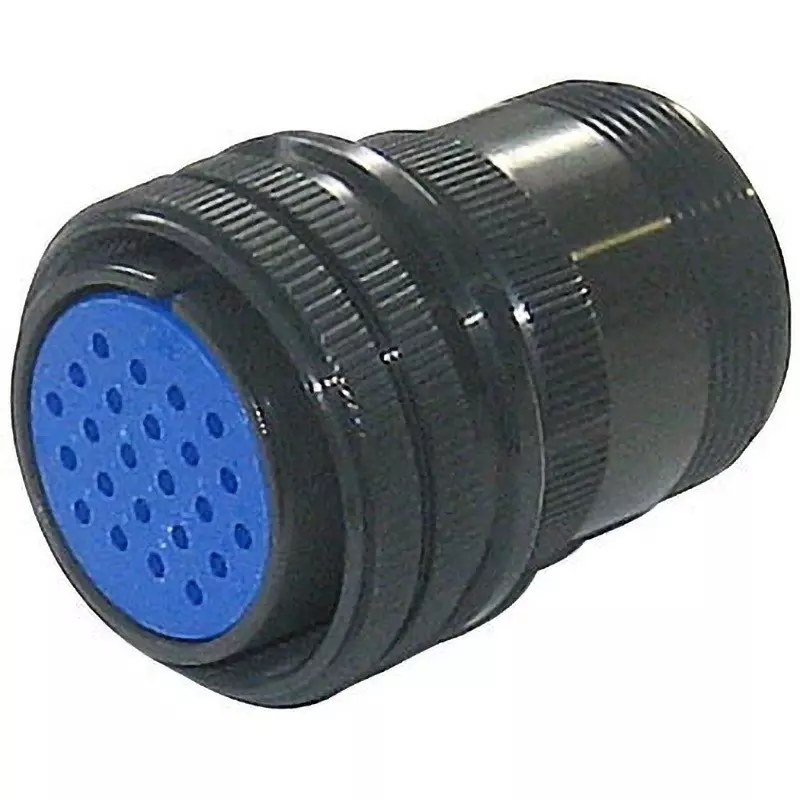

| Type of Product | Solid Shell Straight Plug |
| Model No | D/MS3106A24-22S |
| Type | Round Type |
Monotaro ID |
34598794 |
Type of Product |
Solid Shell Straight Plug |
Model No |
D/MS3106A24-22S |
Type |
Round Type |
Rated Voltage (V) |
AC 900/DC 1250 |
Rated Current (A) |
46 |
Shape |
Straight |

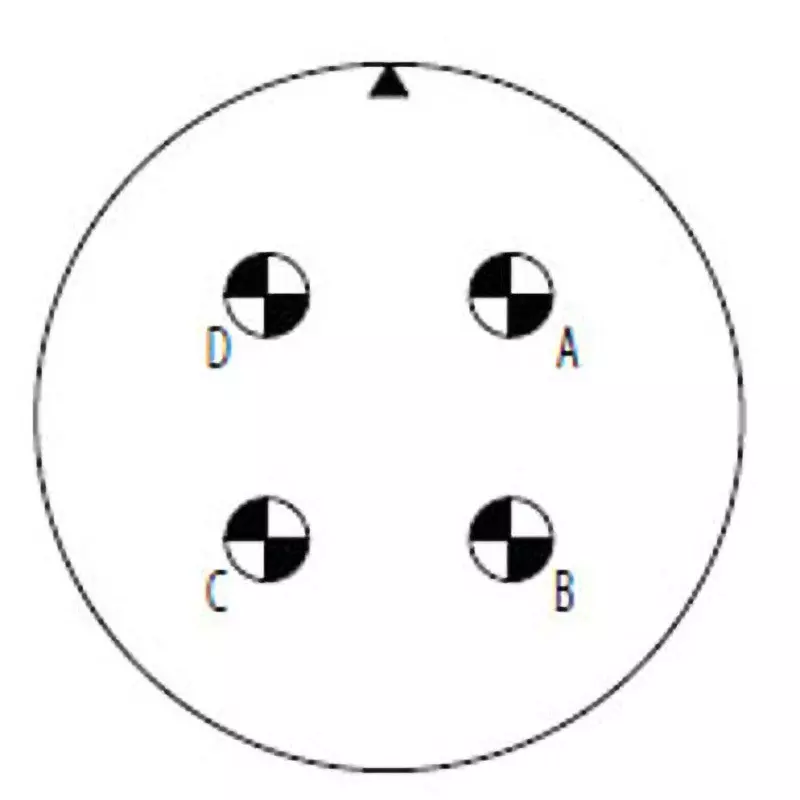

No. of Pole |
4 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
24-22 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
24 |
Applicable Wire Range AWG |
8 to 10 |
Compatible Cable |
8 mm² |

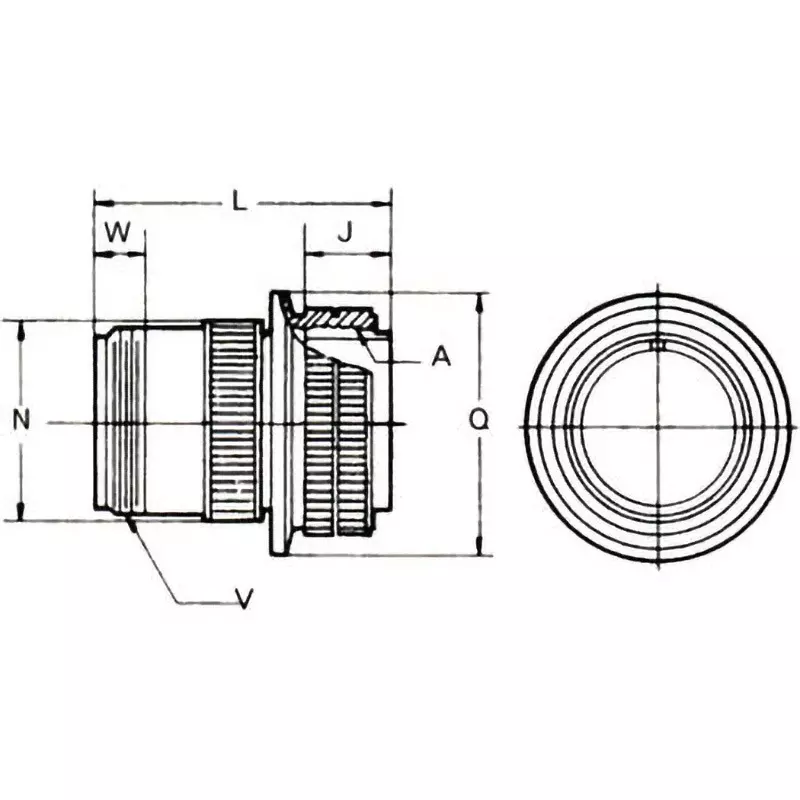

Mounting Screw |
1 7/16-18 UNEF |
Effective Screw Length W (mm) |
9.53 Or More |
Connecting Screw A |
1 1/2-18 UNEF |
Joint Length J (mm) |
18.26(±0.12) |
Connector Nut Outer Diameter Q (Φmm) |
43.63(-0.38 to 0) |
Contact Size |
4-#8 |
Overall Length L |
57.2 mm (±0.5) |
Outer Diameter (Φmm) |
38.15(±0.5) |
