| Monotaro ID | 34600413 |

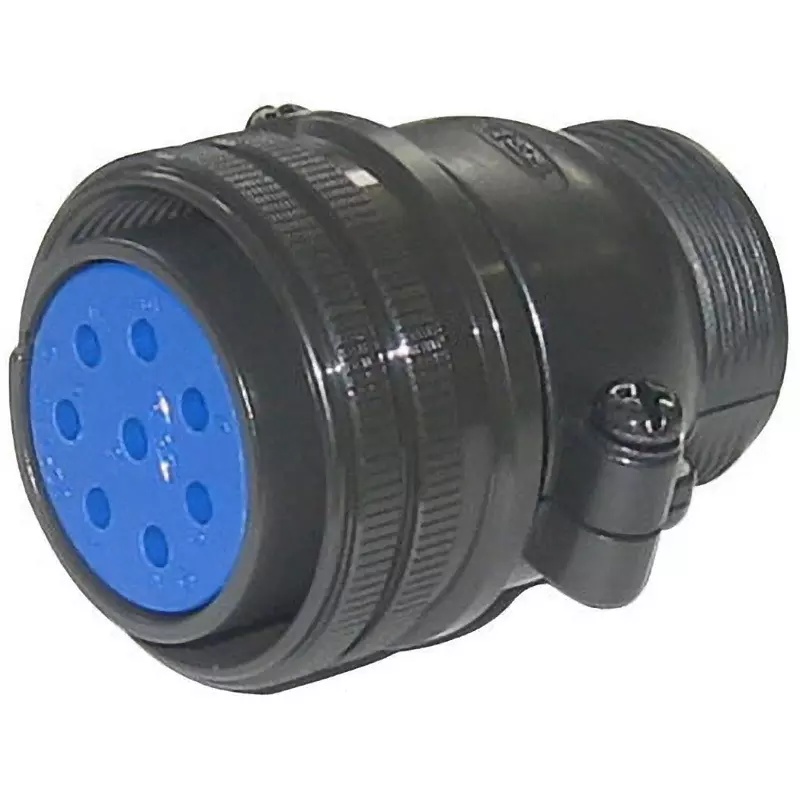

| Type of Product | Straight Plug Split Shell |
| Model No | D/MS3106B32-5S |
| Type | Round Type |
Monotaro ID |
34600413 |
Type of Product |
Straight Plug Split Shell |
Model No |
D/MS3106B32-5S |
Type |
Round Type |
Rated Voltage (V) |
AC 900/DC 1250 |
Rated Current (A) |
150 |
Shape |
Straight |
No. of Pole |
2 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
32-5 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
32 |
Applicable Wire Range AWG |
0 to 2 |
Compatible Cable |
50 mm² |
Mounting Screw |
1 3/4-18 UNS |

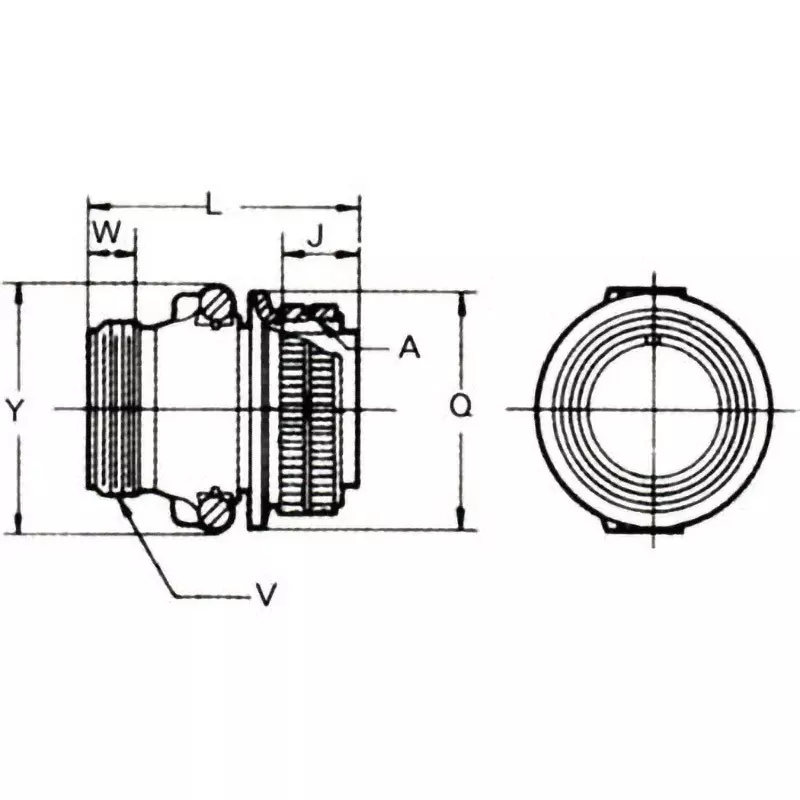

Effective Screw Length W (mm) |
11.13 or more |
Connecting Screw A |
2-18 UNS |
Joint Length J (mm) |
18.26(±012) |
Connector Nut Outer Diameter Q (Φmm) |
56.33(-0.38 to 0) |
Contact Size |
2-#0 |
Overall Length L |
61.92 mm or less |
Maximum Width (mm) |
66 or less |
