| Monotaro ID | 34597857 |
| Type of Product | Solid Shell Straight Plug |
| Model No | D/MS3106A10SL-4S |
| Type | Round Type |
Monotaro ID |
34597857 |
Type of Product |
Solid Shell Straight Plug |
Model No |
D/MS3106A10SL-4S |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13 |
Shape |
Straight |
No. of Pole |
2 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
10SL-4 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
10SL |
Applicable Wire Range AWG |
16 to 22 |
Compatible Cable |
1.25 mm² |
Mounting Screw |
5/8-24 UNEF |

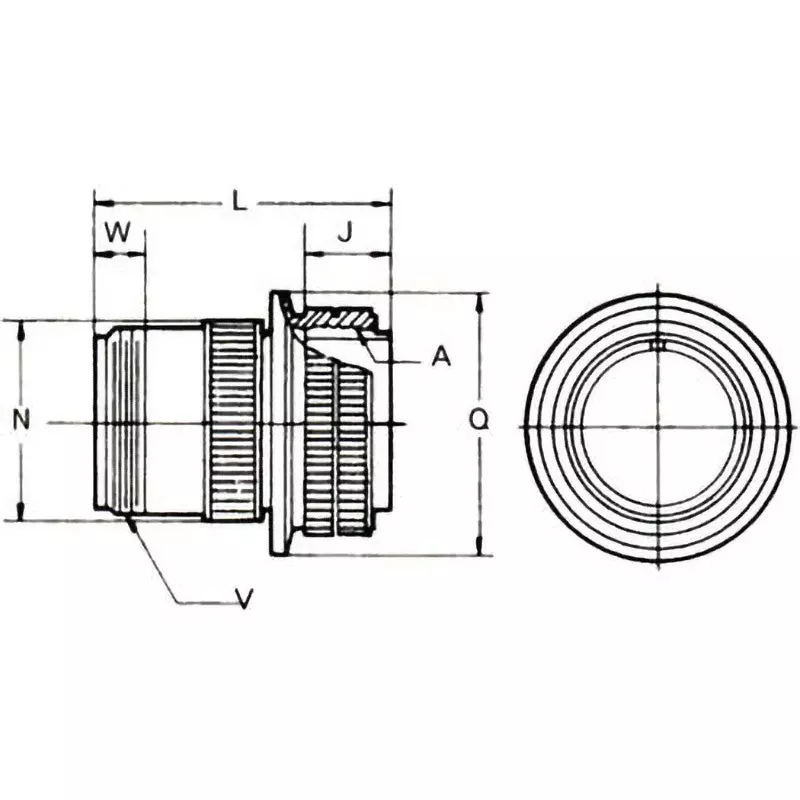

Effective Screw Length W (mm) |
9.53 Or More |
Connecting Screw A |
5/8-24 UNEF |
Joint Length J (mm) |
13.49(±0.12) |
Connector Nut Outer Diameter Q (Φmm) |
22.22(-0.38 to 0) |
Contact Size |
2-#16 |
Overall Length L |
34.9 mm (±0.5) |
Outer Diameter (Φmm) |
19.12(±0.5) |
