| Monotaro ID | 34600456 |

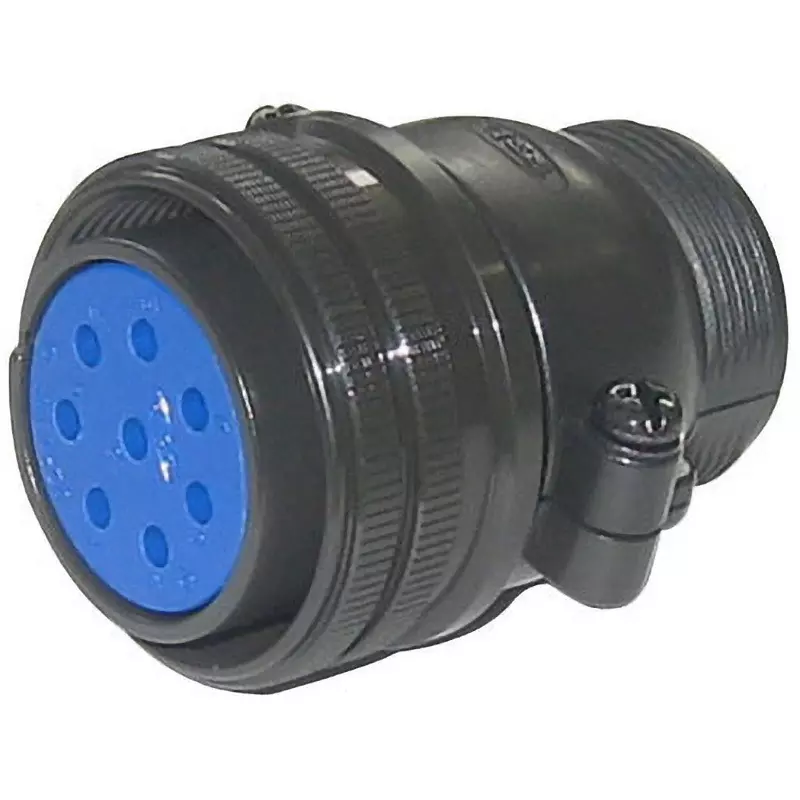

| Type of Product | Straight Plug Split Shell |
| Model No | D/MS3106B32-8S |
| Type | Round Type |
Monotaro ID |
34600456 |
Type of Product |
Straight Plug Split Shell |
Model No |
D/MS3106B32-8S |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13/23 |
Shape |
Straight |
No. of Pole |
30 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
32-8 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
32 |
Applicable Wire Range AWG |
(#12)12 to 14, (#16)16 to 22 |
Compatible Cable |
(#12)3.50, (#16)1.25 mm² |

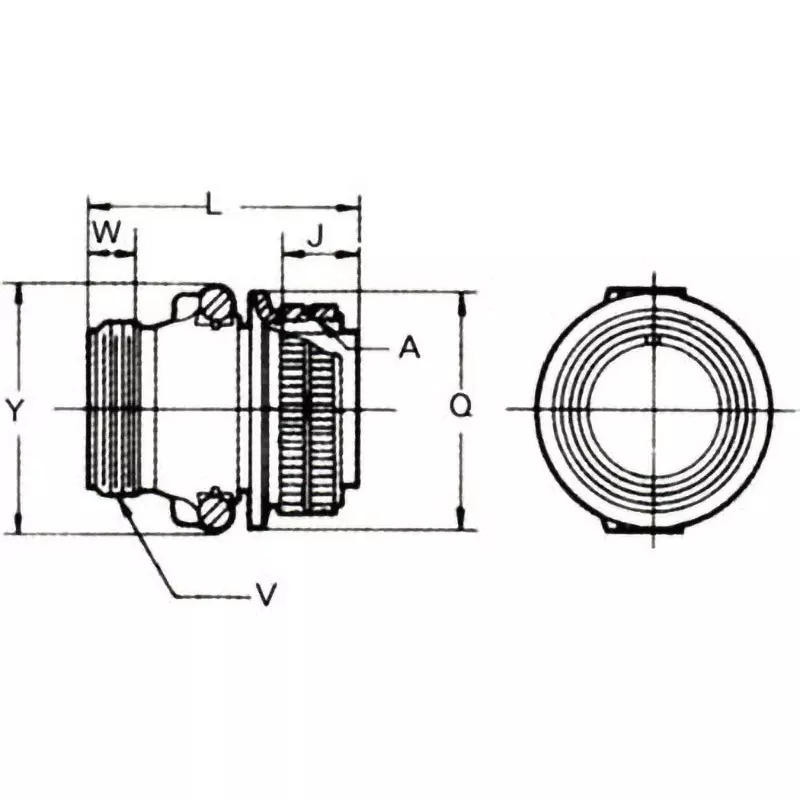

Mounting Screw |
1 3/4-18 UNS |
Effective Screw Length W (mm) |
11.13 or more |
Connecting Screw A |
2-18 UNS |
Joint Length J (mm) |
18.26(±012) |
Connector Nut Outer Diameter Q (Φmm) |
56.33(-0.38 to 0) |
Contact Size |
6-#12, 24-#16 |
Overall Length L |
61.92 mm or less |
Maximum Width (mm) |
66 or less |
