Ships within 25 days
View
View
View
View
| Monotaro ID | 34600641 |

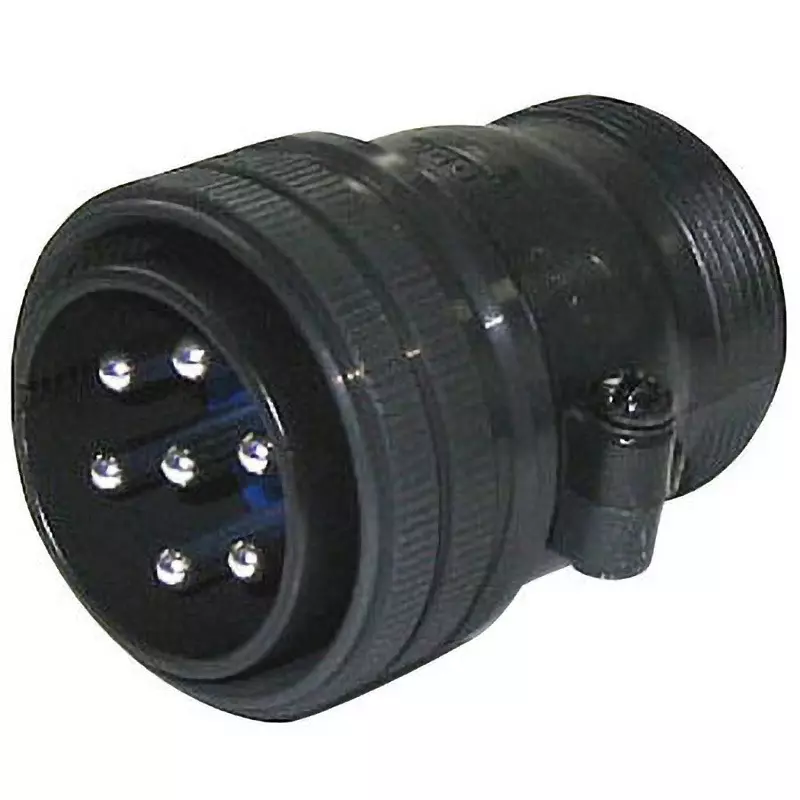

| Type of Product | Straight Plug Split Shell |
| Model No | D/MS3106B36-73P |
| Type | Round Type |
Monotaro ID |
34600641 |
Type of Product |
Straight Plug Split Shell |
Model No |
D/MS3106B36-73P |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13 |
Shape |
Straight |
No. of Pole |
73 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
36-73 |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
36 |
Applicable Wire Range AWG |
16 to 22 |
Compatible Cable |
1.25 mm² |
Mounting Screw |
2-18 UNS |

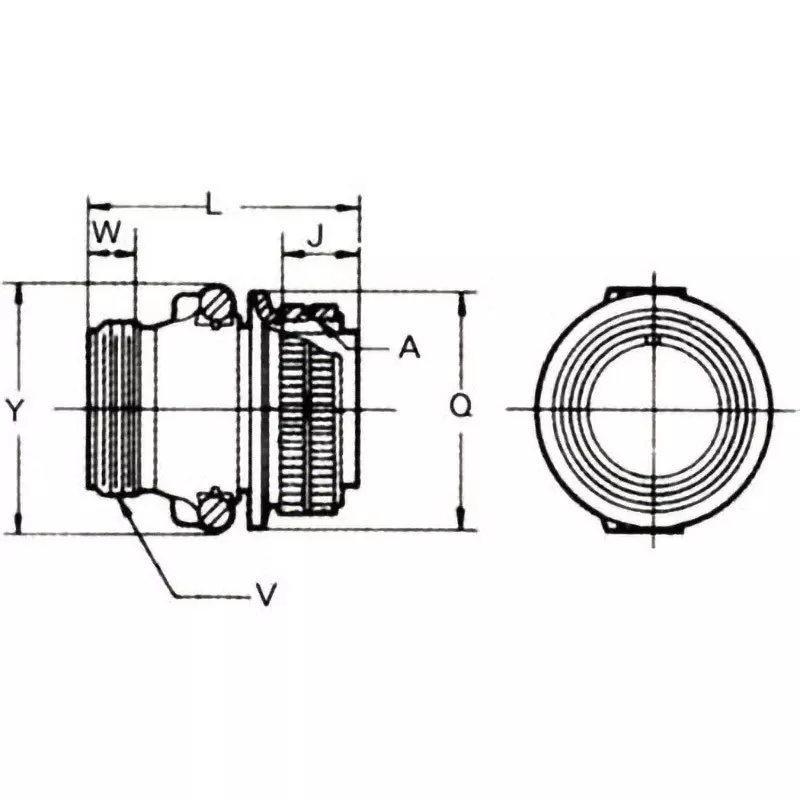

Effective Screw Length W (mm) |
12.7 or more |
Connecting Screw A |
2 1/4-16UN |
Joint Length J (mm) |
18.26(±012) |
Connector Nut Outer Diameter Q (Φmm) |
62.68(-0.38 to 0) |

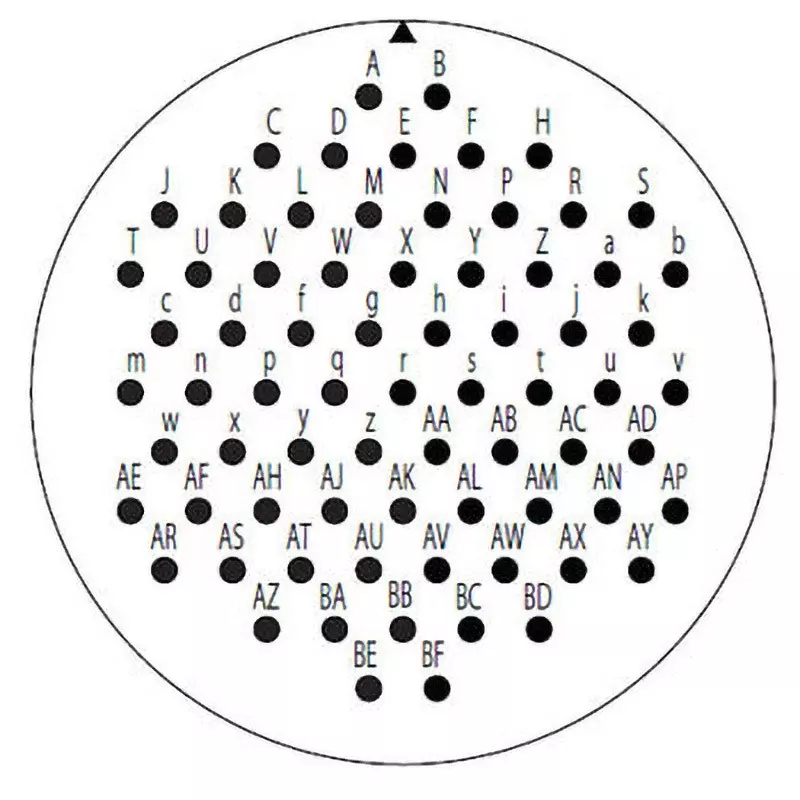

Contact Size |
73-#16 |
Overall Length L |
61.92 mm or less |
Maximum Width (mm) |
73 or less |
