| Monotaro ID | 34601962 |

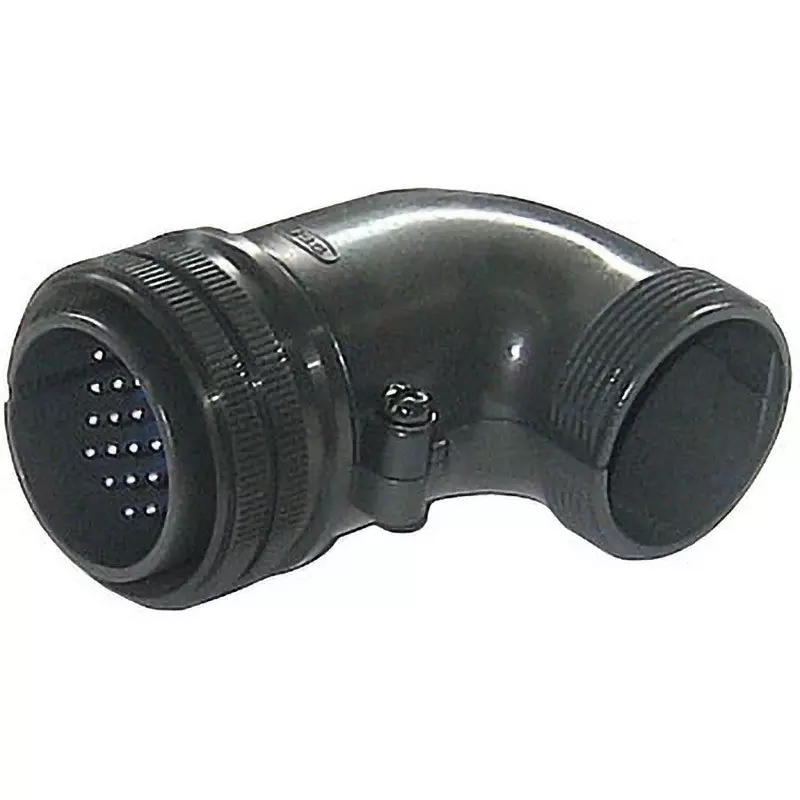

| Type of Product | L-Shaped Plug Split Shell |
| Model No | D/MS3108B36-4P |
| Type | Round Type |
Monotaro ID |
34601962 |
Type of Product |
L-Shaped Plug Split Shell |
Model No |
D/MS3108B36-4P |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC700, AC 500/DC700 |
Rated Current (A) |
150 |
Shape |
Angle |

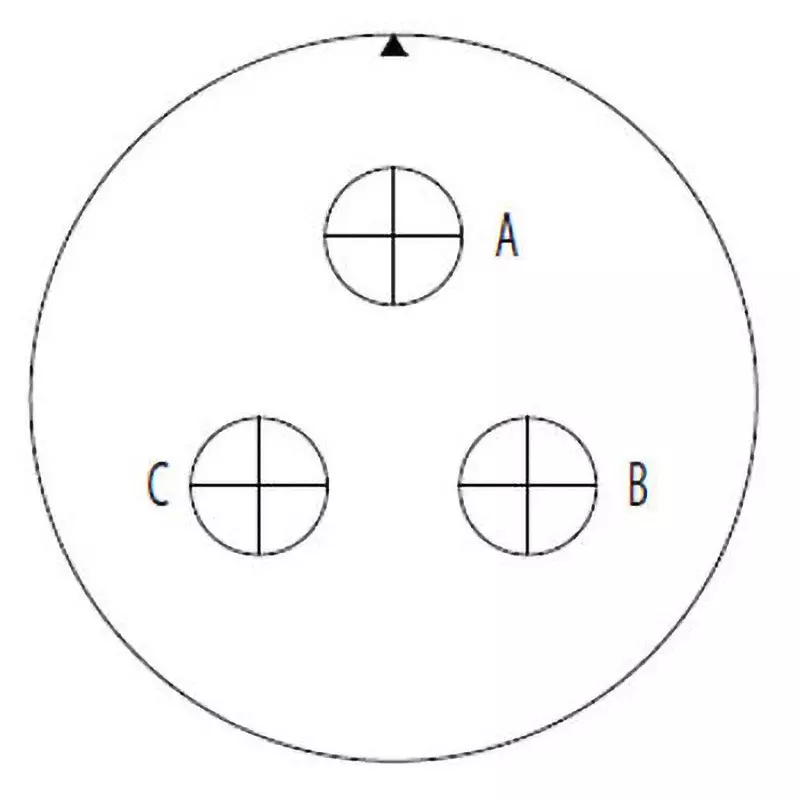

No. of Pole |
3 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Sequence Number |
36-4 |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
36 |
Applicable Wire Range AWG |
0 to 2 |
Compatible Cable |
50 mm² |
Mounting Screw |
2-18 UNS |

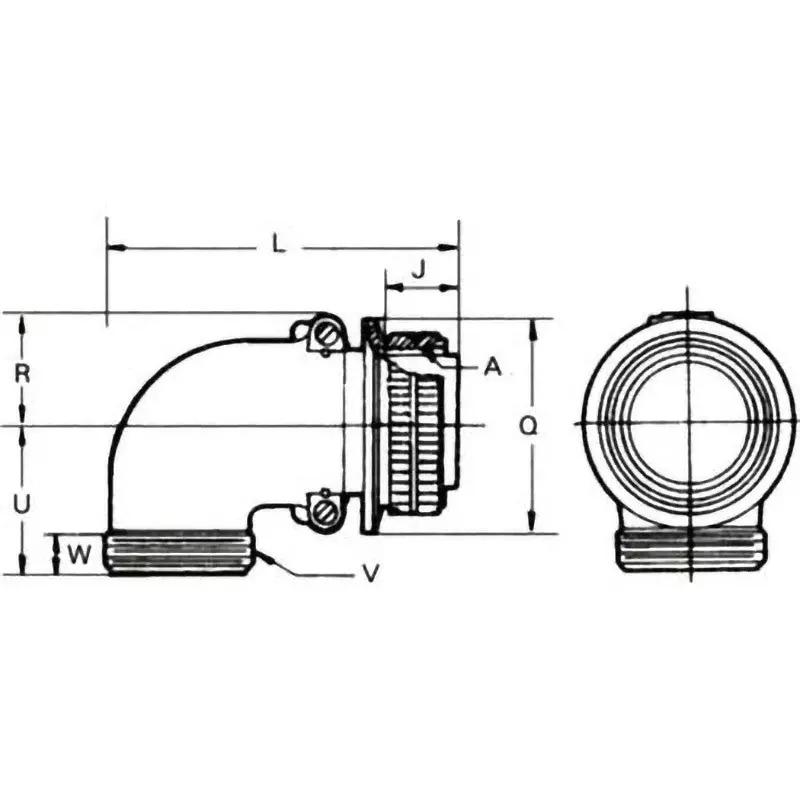

Dimension R |
36 mm (±0.5) |
Effective Screw Length W (mm) |
12.7 or more |
Connecting Screw A |
2 1/4-16UN |
Joint Length J (mm) |
18.26(±0.12) |
Dimension U (mm) |
49.2(±0.5) |
Connector Nut Outer Diameter Q (Φmm) |
62.68(-0.38 to 0) |
Contact Size |
3-#0 |
Overall Length L |
under 100 mm |
