| Monotaro ID | 34599722 |

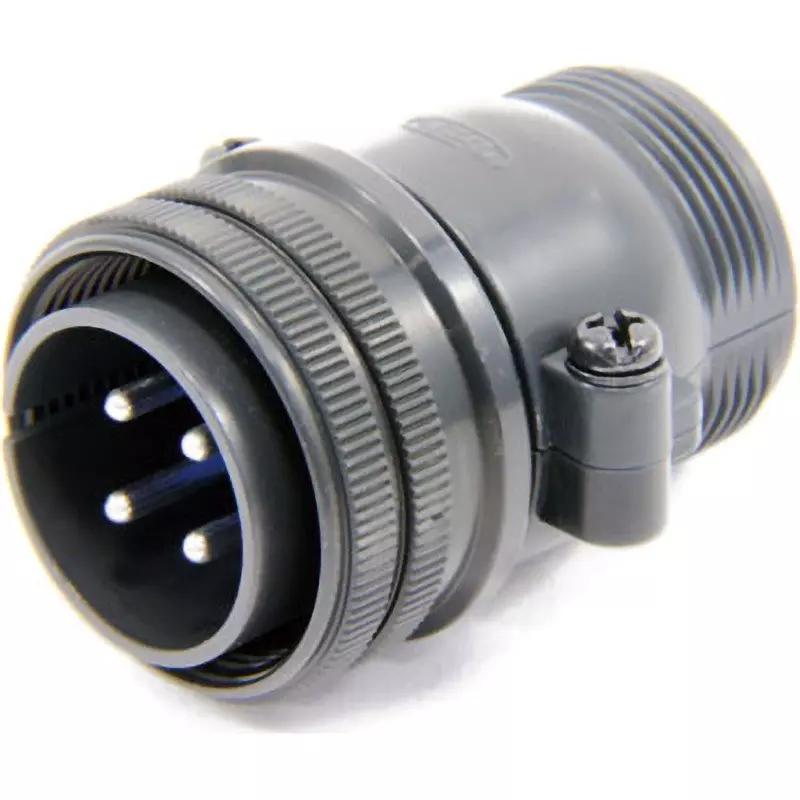

| Type of Product | Straight Plug Split Shell |
| Model No | D/MS3106B20-4P |
| Type | Round Type |
Monotaro ID |
34599722 |
Type of Product |
Straight Plug Split Shell |
Model No |
D/MS3106B20-4P |
Type |
Round Type |
Rated Voltage (V) |
AC 900/DC 1250 |
Rated Current (A) |
23 |
Shape |
Straight |
No. of Pole |
4 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
20-4 |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
20 |
Applicable Wire Range AWG |
12 to 14 |
Compatible Cable |
3.5 mm² |
Mounting Screw |
1 3/16-18 UNEF |

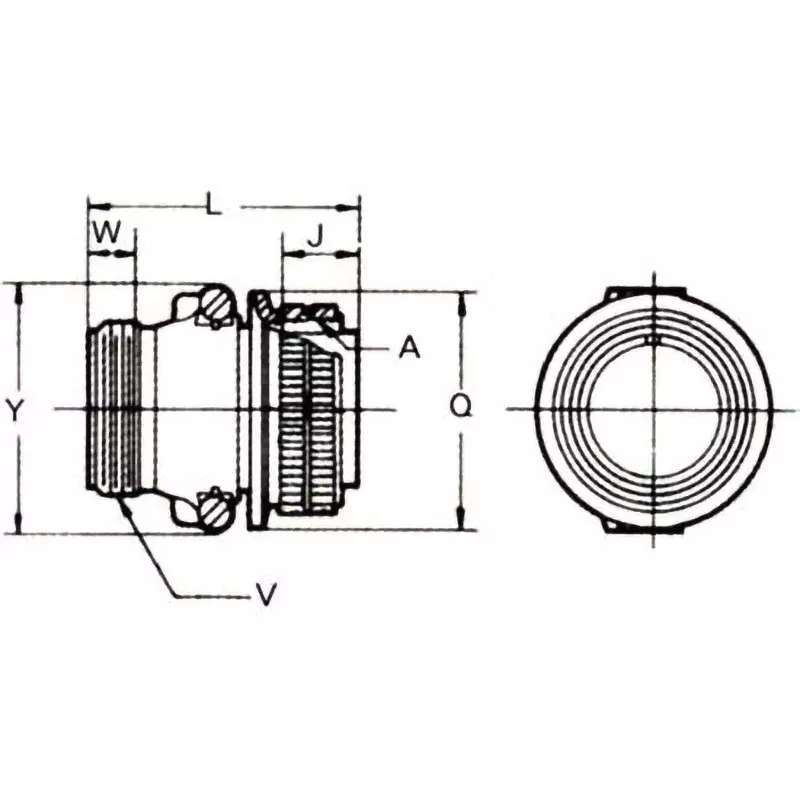

Effective Screw Length W (mm) |
9.53 Or More |
Connecting Screw A |
1 1/4-18 UNEF |
Joint Length J (mm) |
18.26(±012) |
Connector Nut Outer Diameter Q (Φmm) |
37.28(-0.38 to 0) |
Contact Size |
4-#12 |
Overall Length L |
55.57 mm or less |
Maximum Width (mm) |
47 or less |
