| Model No | F-02A |
| Type of Product | Air Filter Auto Drain NO |
| Material | Aluminum alloy |
| Thread Type | PT |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
F-02A |
Type of Product |
Air Filter Auto Drain NO |
Material |
Aluminum alloy |
Thread Type |
PT |
Filtration |
5 μm |
Country of Origin |
Japan |
Pipe Connection Diameter |
PT1/4 |
Suitable Fluid |
Compressed air |
Monotaro ID |
9592712 |
Operating Temperature Range |
5 - 60°C |
Set Pressure Unit |
MPa |
Drain Cock |
Auto |
Type of Sign |
With bracket |
Maximum Operating Pressure (MPa) |
1 |

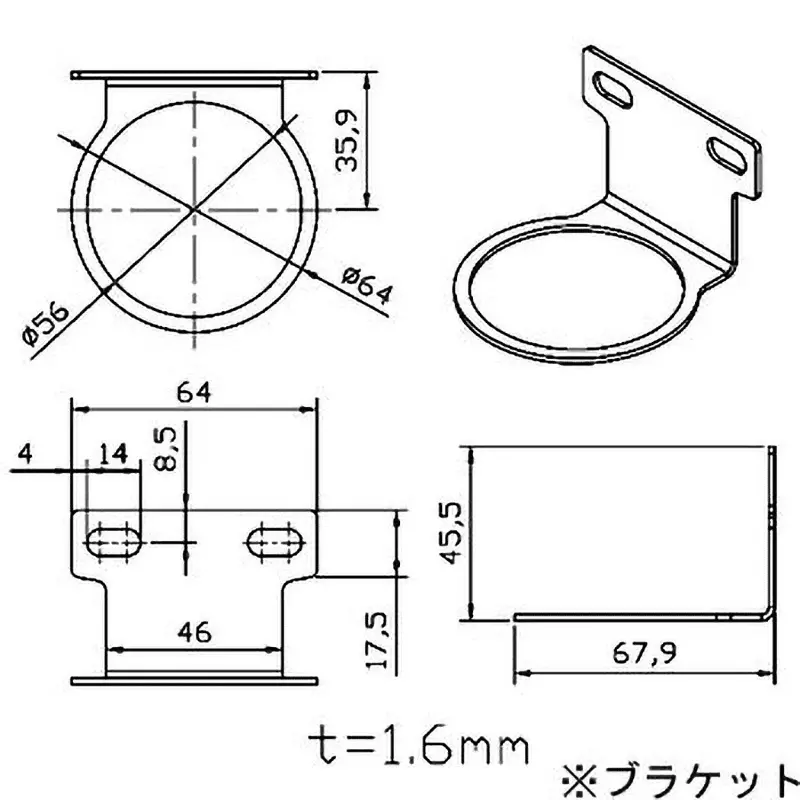

Included Components |
Bracket |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Specifications |
Auto drain NO |
Drain Port Size (Rc) |
46030 |
Auto Drain Specification |
Auto drain NO |
Maximum Flow Rate (LPM) |
1750 |
Minimum Working Pressure (MPa) |
0.2 (entrance side) |
Assured Pressure Resistance (MPa) |
1.2 |
Material (Ball Guard) |
Zinc alloy |
Filter Drain Storage Volume (mL) |
80 |
