| Overall Height | 21 Inch |
| UNSPSC Code | 40161516 |
| Drain Type | Automatic |
| Bowl material | Aluminum |
Overall Height |
21 Inch |
UNSPSC Code |
40161516 |
Drain Type |
Automatic |
Bowl material |
Aluminum |
Overall Width |
7 inch |

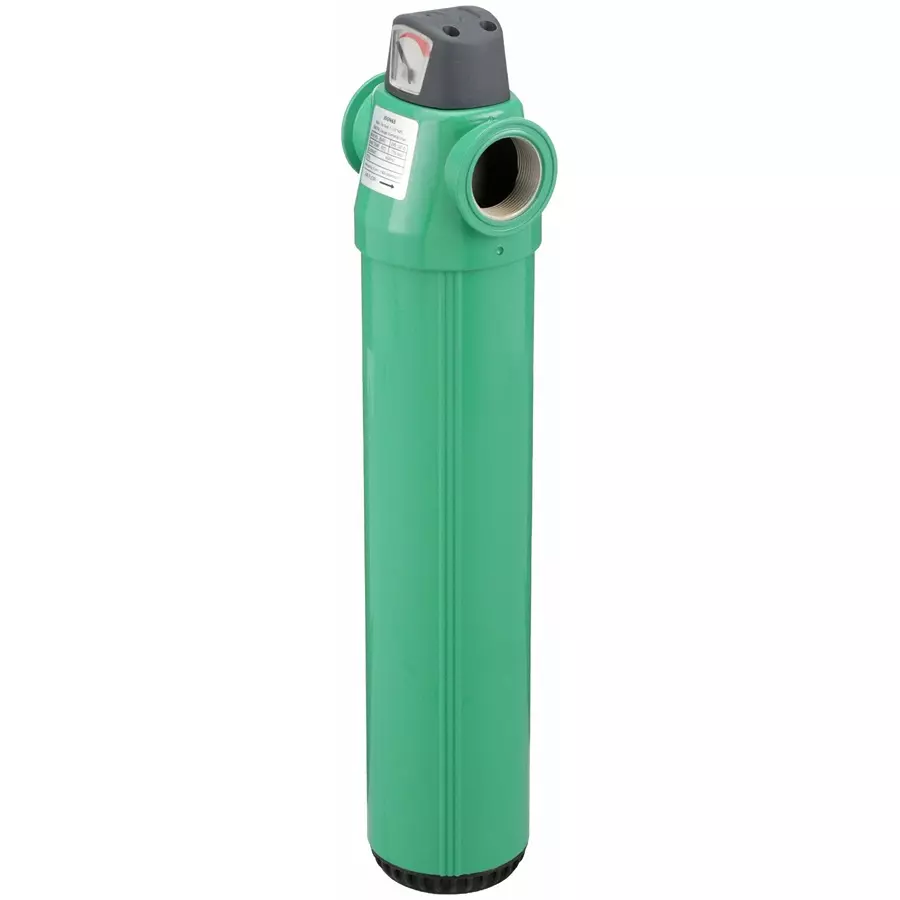

Type of Product |
Compressed Air Filter |
Material |
Microglass |
Body Material |
All Anodized Aluminum |
Part No |
35GN63 |
Series |
GT |
Item Code |
35GN63 |
Country of Origin |
Turkey |
Filter Type |
Coalescing 1 micron |
Maximum Operating Pressure |
235 psi |
Maximum Flow Rate |
294 cfm |
No. of Outlets |
1 |
No. of Inlets |
1 |
Fluid Type |
Oil Water |
Included Components |
Drain, Differential Pressure Indicator, Tie Rod |
Inlet Size |
1-1/2 in NPT |
Outlet Type |
NPT |
Gauge |
Yes |
Maximum Operating Temperature |
176°F |
Substance Type |
Oil Oil Vapor Particles Water |
Air Outlet Size |
1-1/2 inch |
Overall Height (mm) |
533.4 mm |
Overall Width (mm) |
177.8 mm |
