| Filter Rating (Microns) | 0.4 micron |
| Overall Height | 21-1/4 Inch |
| UNSPSC Code | 40151610 |
| Bowl material | Metal |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Filter Rating (Microns) |
0.4 micron |
Overall Height |
21-1/4 Inch |
UNSPSC Code |
40151610 |
Bowl material |
Metal |
Overall Width |
4 inch |

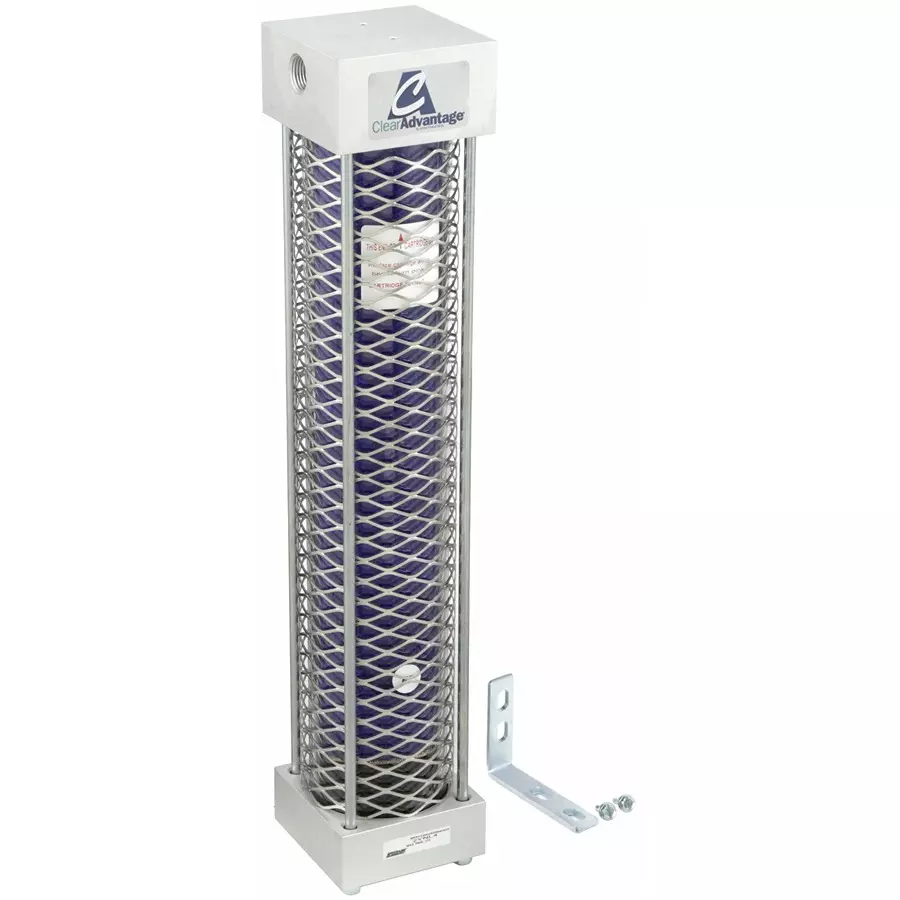

Type of Product |
Desiccant Filter/Dryer |
Material |
Sintered Bronze |
Application |
Dry Air |
Part No |
2YNL4 |
Item Code |
2YNL4 |
Country of Origin |
USA |
Filter Type |
Particulate |
Overall Length |
21-3/8 inch |
Maximum Operating Pressure |
120 psi |
Iso Class |
2 |
Standard |
Iso |
Maximum Flow Rate |
40 cfm |
No. of Outlets |
1 |
No. of Inlets |
1 |
Included Components |
Bowl Guard |
Outlet Type |
NPT |
Includes |
Mounting Brackets Safety Guard |
Maximum Operating Temperature |
125 °F |
Air Outlet Size |
1/2 inch |
Inlet Type |
NPT |
Air Inlet Size |
1/2 in |
Desiccant Material |
Silica Gel |
Bowl Capacity |
3.4 lb |
Pressure Dew Point |
-30 °F |
Stage 1 Filter Type |
0.4 micron Sinchtered Bronze Filter |
No. of Stages |
5 Stage |
Stage 4 Filter Type |
0.4 micron Sinchtered Bronze Filter |
Filter Included |
Yes |
Filtered Substance |
Debris Dirt Dust Oil Oil Vapor Water Water Vapor |
Maximum Flow @ 100 psi |
40 |
Outside Diameter |
10.16 cm |
Maximum Ambient Temperature |
100 °F |
Bracket |
Yes |
Overall Length (cm) |
54.31 cm |
Overall Height (mm) |
539.75 mm |
Overall Width (mm) |
101.6 mm |
Outside Diameter (inch) |
4 inch |
