Ships within 30 days
Arm Type
Model No
View
View
View
View
| Model No | AOT-40125-UB |
| Cylinder Bore | 40 mm |

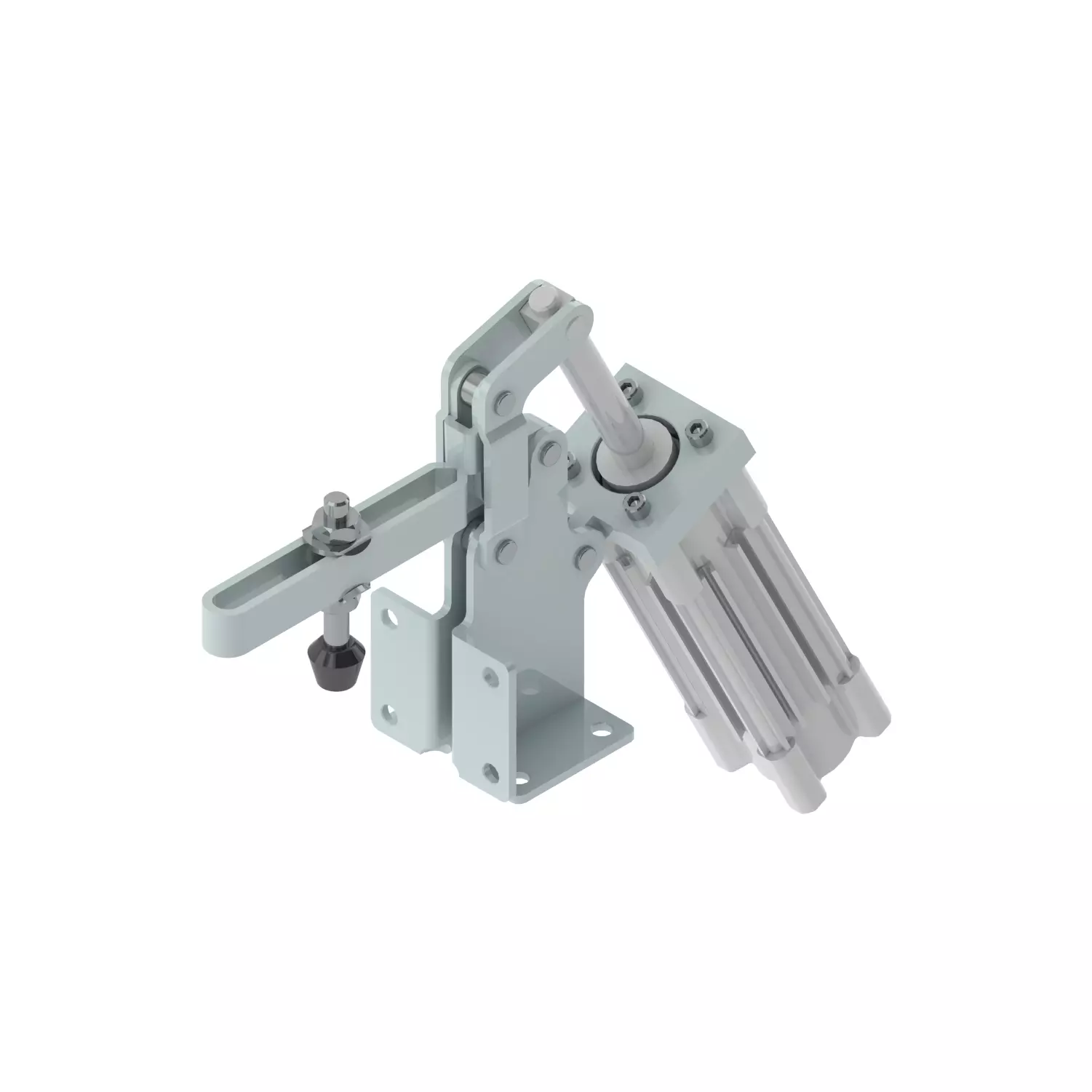

| Type of Product | Right Angle Hold Down Action Clamp |
| Clamp Arm Opening | 100° |
Model No |
AOT-40125-UB |
Cylinder Bore |
40 mm |
Type of Product |
Right Angle Hold Down Action Clamp |
Clamp Arm Opening |
100° |
Operating Pressure |
2 - 6 Bar |
Holding Capacity |
X1: 3.90 kN X2: 1.20 kN |
Weight |
2.9 Kg |
Cylinder Stroke |
80 mm |
Arm Type |
Adjustable Arm |
Cylinder Type |
ISO Series Double Acting Magnetic Cylinder |
