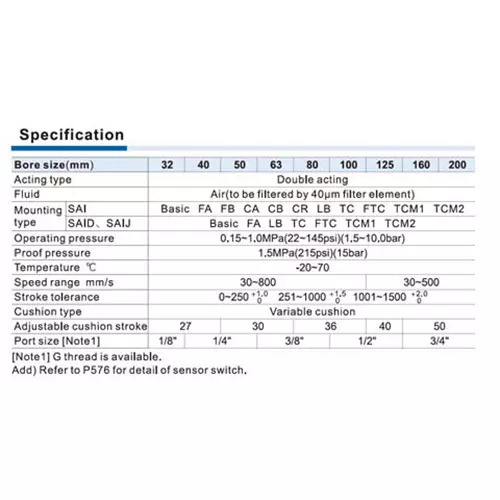

| Bore Size | Ø 160 mm |
| Type of Product | Pneumatic Cylinder |
| Temperature | -20-70 °C |
| Material | Aluminium Alloy |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Bore Size |
Ø 160 mm |
Type of Product |
Pneumatic Cylinder |
Temperature |
-20-70 °C |
Material |
Aluminium Alloy |
Series |
SAI Series |
Operating Temperature Range |
0-150 °C |
Operating Pressure |
0.15-1.0 MPa(22-145 Psi)(1.5-10.0 Bar) |
Cushion Type |
Varlable Cushion |
Acting Type |
Double Acting |
Country of Origin |
India |
Proof Pressure |
1.5 MPa(215 Psi}(15 Bar) |
Speed Range |
30-500 mm/s |
Mounting Type |
Basic FA FB CA CB CR LB TC FTC TCM1 TCM2 |
Standard |
ISO15552 |
Stroke Size |
125 mm |
Rod Size |
40 mm |
Name of Manufacturer/Packer/Importer |
A-Tech Pneumatic Private Limited |
Fluid |
Air (to be filtered by 40 µm filter element) |
