Ships within 10 days
Stroke Size
View
View
View
View

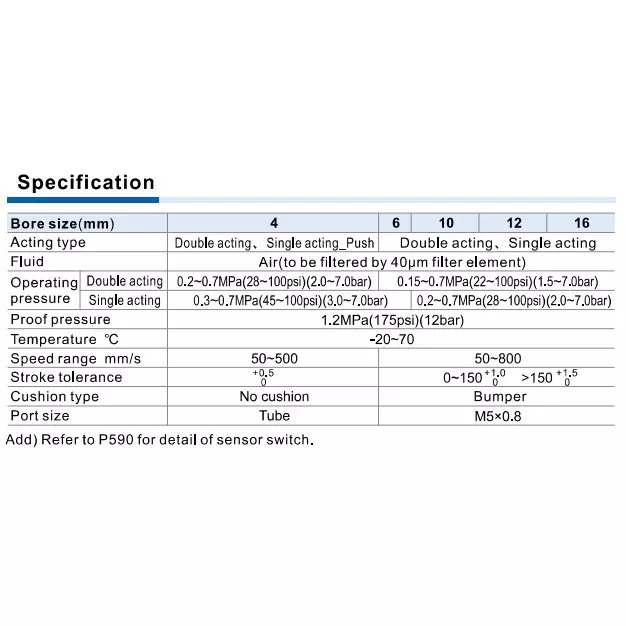

| Bore Size | 10 mm |
| Type of Product | Pen Size Cylinder |
| Temperature | -20-70 °C |
| Type | R/U Type |
Bore Size |
10 mm |
Type of Product |
Pen Size Cylinder |
Temperature |
-20-70 °C |
Type |
R/U Type |
Series |
PB Series |
Operating Pressure |
0.15-0.7 Mpa (22-100 Psi) (1.5-7.0 Bar) |
Cushion Type |
Bumper |
Country of Origin |
India |
Proof Pressure |
1.2 Mpa (175 Psi) (12 Bar) |
Speed Range |
50-800 mm/s |
Stroke Size |
75 mm |
Name of Manufacturer/Packer/Importer |
A-Tech Pneumatic Private Limited |
Fluid |
Air (to be filtered by 40 µm filter element) |
Stroke Tolerance |
0-150+1.0° > 150+1.5° |
