| Bore Size | 16 mm |

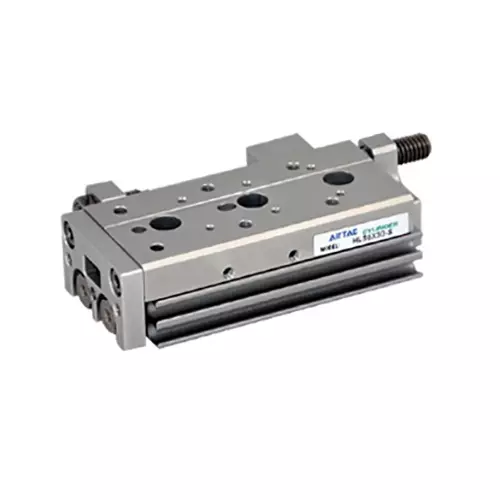

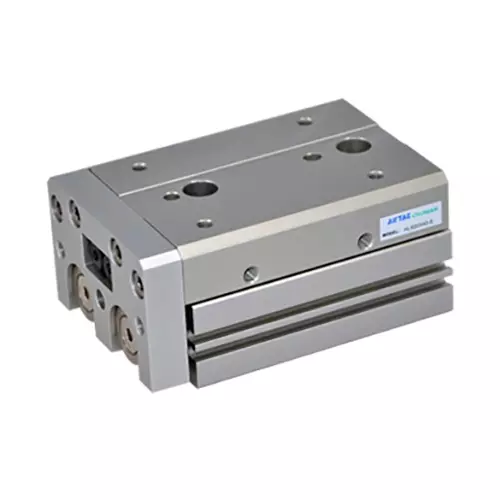

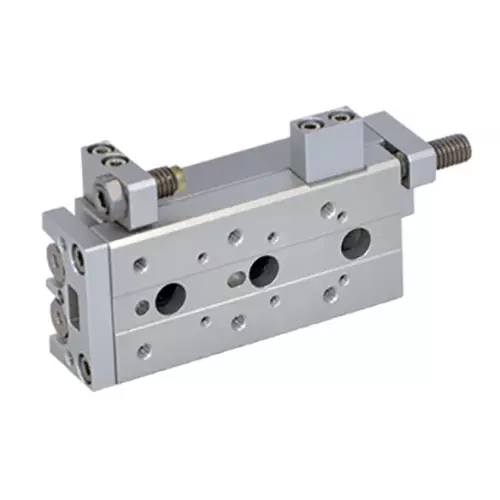

| Type of Product | Precision Slide Cylinder |
| Temperature | -20-70 °C |
| Series | HLS Series |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands

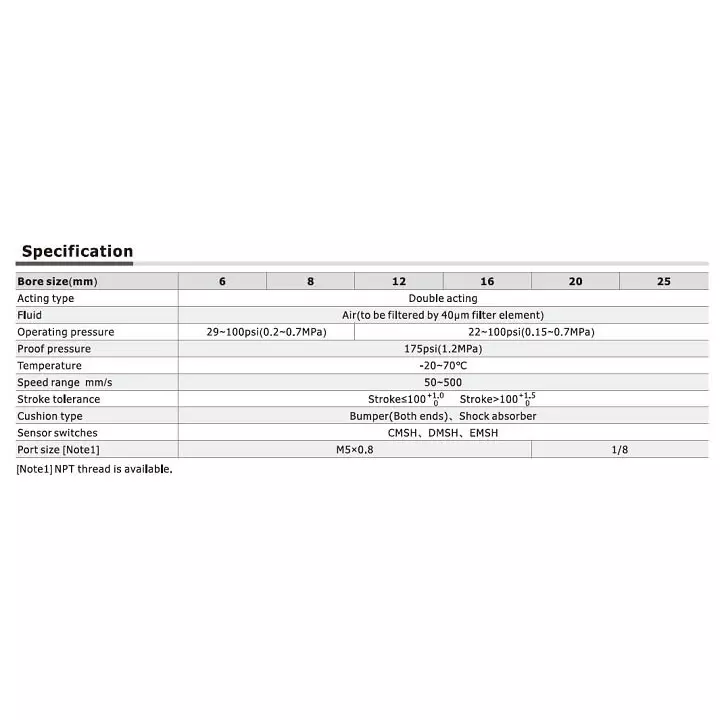

Bore Size |
16 mm |
Type of Product |
Precision Slide Cylinder |
Temperature |
-20-70 °C |
Series |
HLS Series |
Operating Pressure |
0.15-0.7 MPa(22-100 Psi)(1.5-7.0 Bar) |
Cushion Type |
Fixed buffer at both ends, hydraulic buffer buffer |
Acting Type |
Double Acting |
Country of Origin |
India |
Proof Pressure |
1.2 MPa(175 Psi) (12.0 Bar) |
Speed Range |
50-500 mm/s |
Stroke Size |
50 mm |
Name of Manufacturer/Packer/Importer |
A-Tech Pneumatic Private Limited |
Fluid |
Air (to be filtered by 40 µm filter element) |
Stroke Tolerance |
Stroke < 100 Stroke >100 |
